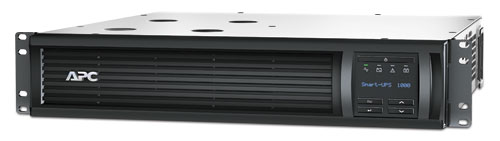

APC Smart-UPS 1000VA LCD RM 2U 120V
APC Smart-UPS, 700 Watts / 1000 VA,Input 120V / Output 120V, Interface Port SmartSlot, USB, Rack Height 2 U

SMT1000RM2U APC Smart-UPS 1000VA LCD RM 2U 120V

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable

Sorry, this product is no longer available, Please contact us for a replacement.



Over 20 million units sold - the UPS you can trust

APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

APC Smart-UPS 1000VA LCD RM 2U 120V

SMT1000RM2U Feature Overview:

  • Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Audible alarms - Provide notification of changing flywheel conditions
  • InfraStruXure Central compatible - Enables centralized management via APC InfraStruXure® Central.
  • Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • SmartSlot - Customize UPS capabilities with management cards.
  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Resettable circuit breakers - Enables a quick recovery from overload events.
  • Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Disconnected battery notification - Warns when a battery is not available to provide backup power.
  • Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
  • Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Audible alarms - Provides notification of changing utility power and UPS conditions.
  • User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • Serial Connectivity - Provides management of the UPS via a serial port.
  • USB connectivity - Provides management of the UPS via a USB port (not available on all models).
  • Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery.
  • Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
  • Power conditioning - Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Network manageable - Provides remote management of the UPS over the network.
  • Adjustable voltage sensitivity - Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.
  • Predicitive failure notification - Provides early-warning fault analysis ensuring proactive component replacement.
  • Intelligent Battery Charging  - Microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life.
  • Serial Connectivity -   Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.

Features & Benefits:

Availability
Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification Warns when a battery is not available to provide backup power.
Manageability
Network manageable Provides remote management of the UPS over the network.
Audible alarms Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators Quickly understand unit and power status with visual indicators.
Serial Connectivity Provides management of the UPS via a serial port.
USB connectivity Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification Warns when a battery is not available to provide backup power.
Serviceability
User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers Enables quick recovery from UPS overload events.
Adaptability
Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Field-replaceable power distribution panel Ensures compatibility with equipment that has different plug types.
Safety
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.

Runtime Chart:

Click here to view the Smart-UPS Runtime Chart. (pop-up window)

Technical Specifications:

Output
Output Power Capacity 700 Watts / 1000 VA
Max Configurable Power 700 Watts / 1000 VA
Nominal Output Voltage 120V
Efficiency at Full Load 97%
Output Frequency (sync to mains) 57 - 63 Hz for 60 Hz nominal
Output Voltage Distortion Less than 5% at full load
Waveform Type Sine wave
Output Connections NEMA 5-15R(6) NEMA 5-15R
Input
Nominal Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections NEMA 5-15RNEMA 5-15R
Cord Length 8 feet (2.44 meters)
Input voltage range for main operations 82 - 144V
Input voltage adjustable range for mains operation 75 - 154V
Batteries & Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time 3 hour(s)
Replacement battery cartridge APCRBC123
RBC™ Quantity 1

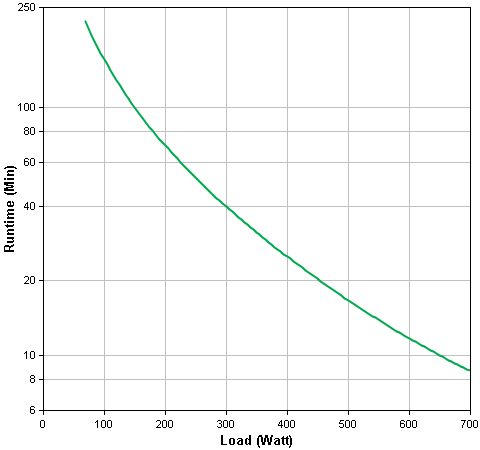

Runtime Graph

APC Smart-UPS 1000VA LCD RM 2U 120V  Runtime Chart

 Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

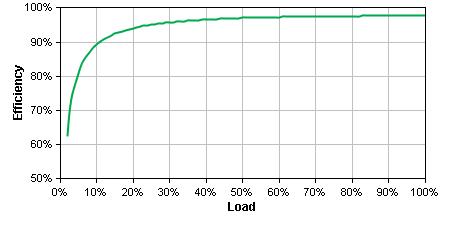

Energy Use/Efficiency


APC Smart-UPS 1000VA LCD RM 2U 120V  Graph

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Communications & Management
Interface Port(s) SmartSlot,USB
Available SmartSlot™ Interface Quantity 1
Control panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Optional
Surge Protection and Filtering
Surge Energy Rating 459 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 3.50 inches (89 mm)
Maximum Width 17.00 inches (432 mm)
Maximum Depth 18.00 inches (457 mm)
Net Weight 62.00 lbs. (28.18 kg)
Shipping Weight 69.20 lbs. (31.45 kg)
Shipping Height 9.88 inches (251 mm)
Shipping Width 23.38 inches (594 mm)
Shipping Depth 23.75 inches (603 mm)
Rack Height 2U
Color Black
Units per Pallet 16.00
Environmental
Operating Environment 32 - 104°F (0 - 40°C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 5 - 113°F (-15 - 45°C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit 45.00 dBA
Online Thermal Dissipation 56.00 BTU/hr
Conformance
Regulatory Approvals CSA, FCC Part 15 Class A, UL 1778
Standard Warranty 3 years repair or replace (excluding battery) and 2 year for battery
Equipment protection policy Lifetime: $150,000
Environmental Compliance RoHS 7b Exemption,REACH: Contains No SVHCs
