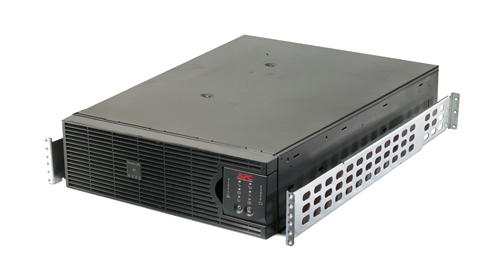

APC Smart-UPS RT 3000VA RM 120V Network Card
APC Smart-UPS RT, 2100 Watts / 3000 VA,Input 120V / Output 120V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model, Rack Height 3U

A versatile UPS developed for the harshest power conditions in the world.

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Features & Benefits:

Runtime Chart:

Click here to view the Smart-UPS On-Line Runtime Chart. (pop-up window)

Technical Specifications:

Output
Output Power Capacity	2100 Watts / 3000 VA
Max Configurable Power	2100 Watts / 3000 VA
Nominal Output Voltage	120V
Output Voltage Distortion	Less than 3%
Output Frequency (sync to mains)	50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor	3 : 1
Topology	Double Conversion Online
Waveform Type	Sine wave

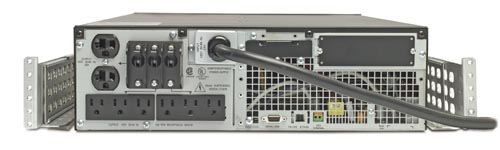

Output Connections	(6) NEMA 5-15R (Battery Backup) (2) NEMA 5-20R (Battery Backup)
Input
Bypass	Internal Bypass (Automatic and Manual)
Nominal Input Voltage	120V
Input Frequency	50/60 Hz +/- 5 Hz (auto sensing)
Input Connections	NEMA L5-30P
Cord Length	8 ft ( 2.44 meters )
Input voltage range for main operations	90 - 150V
Number of Power Cords	1
Batteries & Runtime
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time	2.50 hour(s)
RBC Quantity	1
Extendable Run Time	1
Battery Volt-Amp-Hour Capacity	850
Extended Run Options	APC-SMART-UPS-RT-3000VA-RM-120V-Network-Card
Runtime	View Runtime Graph
Efficiency	View Efficiency Graph
Communications & Management
Interface Port(s)	DB-9 RS-232, Smart-Slot
Pre-Installed SmartSlot Cards	AP9631
Control panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)	Yes
Available SmartSlot Interface Quantity	1
Surge Protection and Filtering
Surge energy rating	480 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height	5.12 inches (130 , 13.0 cm)
Maximum Width	17.01 inches (432 , 43.2 cm)
Maximum Depth	660.0 inches (16764 , 1676.4 cm)
Net Weight	120.26 lbs. (54.55 kg)
Shipping Weight	140.00 lbs. (63.64 kg)
Shipping Height	13.66 inches (347 , 34.7 cm)
Shipping Width	23.74 inches (603 , 60.3 cm)
Shipping Depth	38.58 inches (980 , 98.0 cm)
Color	Black
Units per Pallet	6.00
Rack Height	3U
Environmental
Operating Environment	32 - 104°F (0 - 40°C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0-10000 feet (0-3000 meters)
Storage Temperature	5 - 113°F (-15 - 45°C)
Storage Relative Humidity	0 - 95%
Storage Elevation	0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit	55.00 dBA
Online Thermal Dissipation	655.00 BTU/hr
Protection Class	IP 20
Conformance
Regulatory Approvals	BSMI, CSA, FCC Part 15 Class B, OSHPD, UL 1778
Standard Warranty	2 years repair or replace
