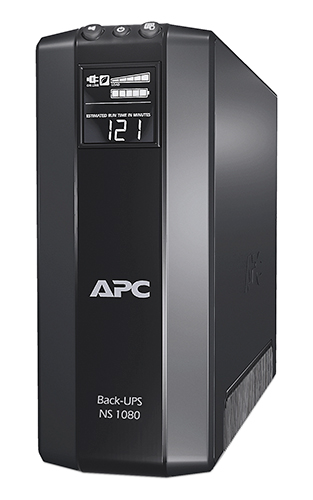

APC Power Saving Back-UPS NS 1080VA
APC Back-UPS Pro,650 Watts /1080 VA,Input 120V /Output 120V, Interface Port USB
Includes: USB cable, User Manual
Sorry, this product is no longer available, please contact us for a replacement.
Premium Battery Backup with Surge Protection for High Performance Electronics and Computers
The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. Models supply abundant battery backup during outages and stabilize unsafe voltage levels. They provide protection from damaging surges and spikes, and allow the use of management software so you get the most out of your unit. Premium features of this family include Automatic Voltage Regulation (AVR), an LCD display, and energy saving functions that reduce electricity use. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.
Features & Benefits:
| Protection | |
| Battery and surge protected outlets | Back up and protect your hardware and data during power outages, surges and spikes. |
| Dataline surge protection | Provides protection of connected equipment from power surges on the data lines. |
| Surge only outlets | Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage. |
| Availability | |
| Energy Management Function | Energy saving feature automatically power off peripherals when the a master device, usually a PC, hibernates or is shut down. Power to peripherals is immediately restored when the master device wakes up or is switched on. |
| Boost and Trim Automatic Voltage Regulation (AVR) | Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models). |
| Green mode | Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. |
| Customizable voltage-transfer points | Adjust the voltage points (widen or tighten the range) where your UPS transfers to battery to maximize useful battery life and protect sensitive electronics. |
| Customizable voltage sensitivity | Toggle between pre-determined voltage-transfer points depending on your power quality (high, medium or low sensitivity), maximizing useful battery life and protecting sensitive electronics. |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Cold-start capable | Provides temporary battery power when the utility power is out. |
| Battery failure notification | Provides early-warning fault analysis on batteries enabling timely preventive maintenance |
| Automatic self-test | Periodic battery self-test ensures early detection of a battery that needs to be replaced. |
| Transformer-block spaced outlets | Protect equipment with input transformer blocks without blocking access to other receptacles. |
| Serviceability | |
| Resettable circuit breaker | Easy recovery from overloads; no need to replace a fuse. |
| Simple battery replacement | Increases UPS availability by allowing quick, easy battery replacement. |
| Manageability | |
| USB connection | Use your PC to access additional power protection and management features for your UPS via a USB Port. |
| LCD Status Display | Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. |
| Audible alarms | Provides notification of changing utility power and UPS power conditions |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Safety | |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. |
Runtime Chart:
| 120V | |||||||||||
| Watts | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | Full | Half |
| BG500 | 24 min | 12 min | 6 min | 4 min | - | - | - | - | - | 4 min (300 Watts) | 8 min (150 Watts) |
| BR700G | 1 hrs 7 mins | 33 min | 14 min | 8 min | 5 min | - | - | - | - | 4 min (420 Watts) | 13 min (210 Watts) |
| BR1000G | 1 hrs 57 mins | 57 min | 24 min | 14 min | 9 min | 5 min | 3 min | - | - | 3 min (600 Watts) | 14 min (300 Watts) |
|
BN1080G |
2 hrs 27 mins | 1 hrs 4 mins | 26 min | 14 min | 9 min | 6 min | 4 min | - | 3 min (650 Watts) | 13 min (325 Watts) | |
|
BR1300G |
2 hrs 8 mins | 1 hrs 9 mins | 33 min | 21 min | 14 min | 10 min | 8 min | 6 min | - | 5 min (780 Watts) | 15 min (390 Watts) |
|
BX1300G |
2 hrs 0 mins | 57 mins | 25 min | 15 min | 9 min | 6 min | 5 min | 6 min | - | 2 min (780 Watts) | 10 min (390 Watts) |
| BR1500G | 2 hrs 8 mins | 1 hrs 9 mins | 33 min | 21 min | 14 min | 10 min | 8 min | 6 min | 4 min | 4 min (865 Watts) | 13 min (432.5 Watts) |
| BR1500 + (1)BR24BPG | 7 hrs 26 mins | 3 hrs 52 mins | 1 hrs 50 mins | 1 hrs 9 mins | 49 min | 37 min | 29 min | 24 min | 20 min | 17 min (865 Watts) | 48 min (432.5 Watts) |
| BX1500 | 2 hrs 8 mins | 1 hrs 9 mins | 33 mins | 21 mins | 14 min | 10 min | 8 min | 6 min | 4 min | 4 min (865 Watts) | 13 min (432.5 Watts) |
Technical Specifications:
| Output | |||||||||||
| Output Power Capacity | 650 Watts / 1080 VA | ||||||||||
| Max Configurable Power | 650 Watts / 1080 VA | ||||||||||
| Nominal Output Voltage | 120V | ||||||||||
| Output Frequency (sync to mains) | 60Hz +/- 3 Hz | ||||||||||
| Other Output Voltages | 110 | ||||||||||
| Crest Factor | 3 : 1 | ||||||||||
| Topology | Line Interactive | ||||||||||
| Waveform Type | Stepped approximation to a sinewave | ||||||||||

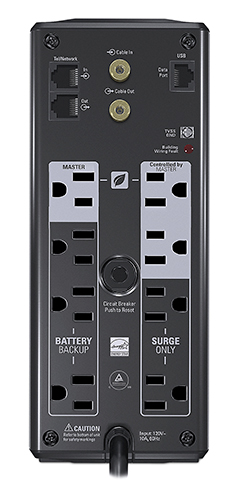

| Output Connections |  (4) NEMA 5-15R (Battery Backup)(4) NEMA 5-15R (Surge Protection) |
||||||||||
| Input | |||||||||||
| Nominal Input Voltage | 120V | ||||||||||
| Input Frequency | 60 Hz +/- 3 Hz | ||||||||||
| Input Connections |  NEMA 5-15P |
||||||||||
| Cord Length | 6 feet (1.83 meters) | ||||||||||
| Input voltage range for main operations | 88 - 139V | ||||||||||
| Maximum Input Current | 12A | ||||||||||
| Input Breaker Capacity | 15 A | ||||||||||
| Batteries & Runtime | |||||||||||
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof | ||||||||||
| Typical recharge time | 16 hour(s) | ||||||||||
| Replacement battery cartridge | APCRBC123 | ||||||||||
| RBC™ Quantity | 1 | ||||||||||

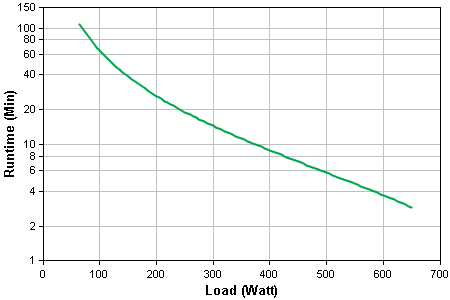

| Runtime Graph |
This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load. |
||||||||||
| Energy Use/Efficiency | |||||||||||
|

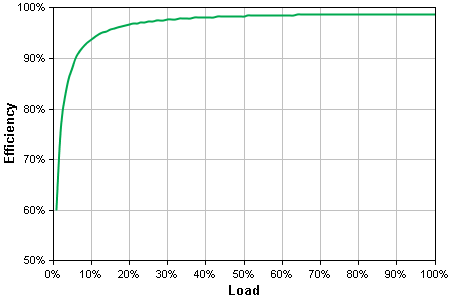

Hover over the line on the graph above to view the efficiency at any desired load Curve fit of data measured in accordance with the ENERGY STAR Program Requirements Product Specification for Uninterruptible Power Supplies (UPSs) - Eligibility Criteria Version 1.0. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.0) output. |
||||||||||
| Communications & Management | |||||||||||
| Interface Port(s) | USB | ||||||||||
| Control Panel | Multi-function LCD status and control console | ||||||||||
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm | ||||||||||
| Surge Protection and Filtering | |||||||||||
| Surge Energy Rating | 354 Joules | ||||||||||
| Filtering | Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous | ||||||||||
| Data Line Protection | Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector) | ||||||||||
| Physical | |||||||||||
| Maximum Height | 9.84 inches (190 mm) | ||||||||||
| Maximum Width | 3.94 inches (91 mm) | ||||||||||
| Maximum Depth | 15.04 inches (310 mm) | ||||||||||
| Net Weight | 23.58 lbs. (10.72 kg) | ||||||||||
| Shipping Weight | 25.74 lbs. (11.70 kg) | ||||||||||
| Shipping Height | 13.27 inches (252 mm) | ||||||||||
| Shipping Width | 8.86 inches (225 mm) | ||||||||||
| Shipping Depth | 19.17 inches (487 mm) | ||||||||||
| Master Carton Units | 1.00 | ||||||||||
| Master Carton Weight | 2.00 lbs. (0.91 kg) | ||||||||||
| Color | Black | ||||||||||
| SCC Codes | 1073130430278 7 | ||||||||||
| Units per Pallet | 32.00 | ||||||||||
| Pallet Weight | 865.22 lbs. (393.28 kg) | ||||||||||
| Environmental | |||||||||||
| Operating Environment | 32 - 104°F (0 - 40°C) | ||||||||||
| Operating Relative Humidity | 0 - 95% | ||||||||||
| Operating Elevation | 0-9842 feet (0-2952.6 meters) | ||||||||||
| Storage Temperature | 5 - 113°F (-15 - 45°C) | ||||||||||
| Storage Relative Humidity | 0 - 95% | ||||||||||
| Storage Elevation | 0-49212 feet (0-14763.6 meters) | ||||||||||
| Audible noise at 1 meter from surface of unit | 45.00 dBA | ||||||||||
| Conformance | |||||||||||
| Regulatory Approvals | California (CEC) Battery Charger, DOC/Industry Cananda, ENERGY STAR (USA), UL Listed | ||||||||||
| Standard Warranty | 3 years repair or replace | ||||||||||
| Equipment protection policy | Lifetime: $150,000 | ||||||||||
| Sustainable Offer Status | |||||||||||
| RoHS | Compliant | ||||||||||
| REACH | REACH: Contains No SVHCs | ||||||||||
**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
