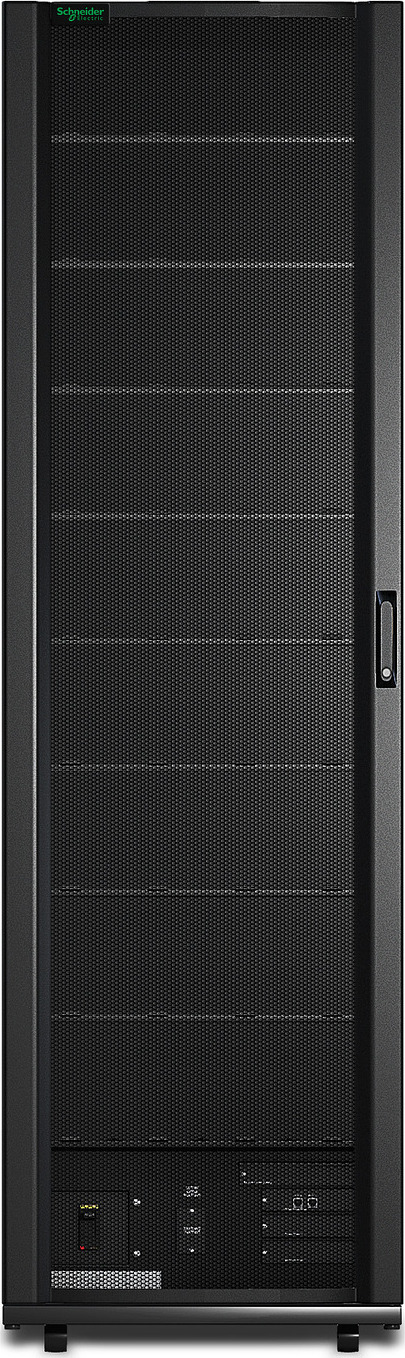

APC Symmetra PX Battery Frame
Enterprise-Grade Battery Enclosure for Symmetra PX 96/160kW
APC Symmetra PX Battery Frame for 400V PX 96/160kW & 208V PX 100kW for 9 Battery Modules
Fast shipping — same-day processing on orders before 4:15 pm PST
What is the APC SYCFXR9?
The APC Symmetra PX Battery Frame (SYCFXR9) by Schneider Electric is a heavy-duty, enterprise-grade battery enclosure engineered to support large-scale extended runtime deployments. Specifically designed for the 400V Symmetra PX 96/160kW and 208V Symmetra PX 100kW architectures, this unpopulated frame provides the physical infrastructure to house up to 9 high-capacity VRLA battery modules, allowing data centers to customize their power scaling.
Why Choose the SYCFXR9?
For facility managers executing a phased data center build-out, the SYCFXR9 provides a flexible, scalable foundation:
- Customizable Power Scaling: This frame ships with zero batteries included (9 empty slots), making it the ideal choice for organizations that want to install the physical frame now and purchase battery modules (requires SYBT9-B4) later as their critical load increases.
- Massive Enterprise Capacity: Designed as a 19-inch battery tray enclosure with a 42U height profile, it accommodates 4-block battery strings capable of supporting the massive power draw of 100kW to 160kW UPS systems.
- Industry-Leading Sustainability: Achieve strict corporate green initiatives effortlessly. Even at this scale, the frame boasts a remarkable Total Lifecycle Carbon Footprint of 0 kg CO2 equivalent.
- Built for Planned Build-Outs: With a standard lead time of 8 weeks, this solution is tailored for scheduled facility expansions and new data center constructions.
Is This Product the Right Fit for Your Needs?
This extended run frame is a perfect fit if you need:
- A compatible, unpopulated battery enclosure for 400V Symmetra PX 96/160kW or 208V Symmetra PX 100kW UPS systems.
- The flexibility to supply your own SYBT9-B4 replacement battery modules.
- A heavy-duty, standalone floor enclosure (not rack-mountable into standard IT racks).
Frequently Asked Questions (FAQ) for SYCFXR9 & SYCFXR9-S
Q: Do these frames come with batteries installed?
A: No. Both the SYCFXR9 and SYCFXR9-S are unpopulated frames featuring 9 empty battery slots. They do not include battery modules. You will need to request and purchase SYBT9-B4 modules separately.
Q: What is the exact difference between the SYCFXR9 and the SYCFXR9-S?
A: The physical hardware is identical. The key difference is that the SYCFXR9-S includes a professional Startup Service from the manufacturer for expert commissioning, whereas the standard SYCFXR9 does not.
Q: Are these frames rack-mountable into my standard IT racks?
A: No. Despite utilizing 19-inch battery trays internally, the overall enclosure is a massive, freestanding cabinet weighing 760.6 lbs (even when empty) and is not designed to be mounted inside standard server racks.
Features & Benefits
Optimized for EcoStruxure Sustainability
The SYCFXR9 minimizes the environmental impact of your physical infrastructure:
- Zero Carbon Footprint: 0 kg CO2 eq. across its entire lifecycle.
- Eco-Friendly Packaging: Delivered in recycled cardboard packaging free of single-use plastics.
- Compliance: EU RoHS Directive Compliant.
Technical Specifications at a Glance
Full technical specifications for the APC Symmetra PX Battery Frame SYCFXR9.
Physical Dimensions & Weight
Operating Environment
Image Gallery
Hardware images of the APC Symmetra PX Battery Frame SYCFXR9.
Documentation
Official APC product documentation for the Symmetra PX Battery Frame SYCFXR9.
Product Datasheet
Full technical datasheet for the APC Symmetra PX Battery Frame SYCFXR9 including detailed specifications, environmental data, and ordering information.
Download Datasheet (PDF) →
