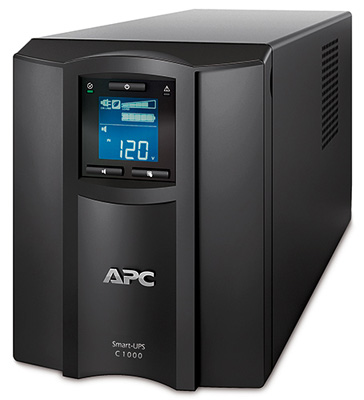

APC Smart-UPS C 1000VA LCD 120V
APC Smart-UPS, 600 Watts / 1000 VA, Input 120V / Output 120V , Interface Port RJ-45 Serial, USB
Includes: CD with software, USB cable, User Manual
Looking for Better Pricing? Please Contact Us for help!
Sorry, this product is no longer available, please contact us for a replacement.
More pricing below, click here!
Brings Smart-UPS reliability to entry-level applications.
APC Smart-UPS C is ideal for small and medium businesses looking to protect entry-level servers and networking equipment from power disturbances and outages. APC Smart-UPS C features pure sine wave output on battery, simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. LCD status display provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. Most Smart-UPS C models can be installed in either a tower or rack configuration, allowing standardization across multiple applications. Built on the same standards as the award-winning Smart-UPS, with over 10 million installed, Smart-UPS C provides the basic features and manageability needed to protect entry-level applications.
Features & Benefits:
| SMC1000 Features | |
| Green mode | Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. |
| Pure sine wave output on battery | Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. |
| LCD Status Display | Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. |
| High online efficiency | Reduces utlility costs, generates less heat. |
| Cold-start capable | Provides temporary battery power when the utility power is out. |
| Temperature-compensated battery charging | Prolongs battery life by regulating the charge voltage according to battery temperature. |
| Availability | |
| Boost and Trim Automatic Voltage Regulation (AVR) | Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models). |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Power conditioning | Protects connected loads from surges, spikes, lightning, and other power disturbances. |
| Temperature-compensated battery charging | Prolongs battery life by regulating the charge voltage according to battery temperature. |
| Automatic restart of loads after UPS shutdown | Automatically starts up the connected equipment upon the return of utility power. |
| Automatic self-test | Periodic battery self-test ensures early detection of a battery that needs to be replaced. |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Manageability | |
| Network manageable | Provides remote management of the UPS over the network. |
| Audible alarms | Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition. |
| LED status indicators | Quickly understand unit and power status with visual indicators. |
| Serial Connectivity | Provides management of the UPS via a serial port. |
| USB connectivity | Provides management of the UPS via a USB port (not available on all models). |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Serviceability | |
| User-replaceable batteries | Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) |
| Hot-swappable batteries | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced |
| Predictive failure notification | Provides early-warning fault analysis ensuring proactive component replacement. |
| Resettable circuit breakers | Enables a quick recovery from overload events. |
| Battery failure notification | Provides early-warning fault analysis on batteries enabling timely preventive maintenance |
| Adaptability | |
| Adjustable voltage-transfer points | Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. |
| Adjustable voltage sensitivity | Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. |
| Safety | |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. |
Runtime Chart:
Click here to view the Smart-UPS Entry Level Runtime Chart. (pop-up window)
Technical Specifications:
| Output | |||||||||||
| Output Power Capacity | 600 Watts / 1000 VA | ||||||||||
| Max Configurable Power | 600 Watts / 1000 VA | ||||||||||
| Nominal Output Voltage | 120V | ||||||||||
| Output Voltage Distortion | Less than 5% at full load | ||||||||||
| Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz | ||||||||||
| Topology | Line Interactive | ||||||||||
| Waveform Type | Sine wave | ||||||||||

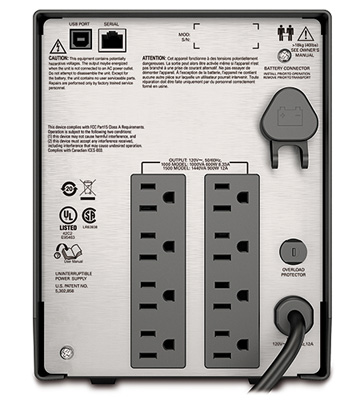

| Output Connections |  (8) NEMA 5-15R |
||||||||||
| Input | |||||||||||
| Nominal Input Voltage | 120V | ||||||||||
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) | ||||||||||
| Input Connections |  NEMA 5-15P |
||||||||||
| Cord Length | 6 feet (1.83 meters) | ||||||||||
| Input voltage range for main operations | 93 - 130V | ||||||||||
| Input voltage adjustable range for mains operation | 85 - 136V | ||||||||||
| Batteries & Runtime | |||||||||||
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof | ||||||||||
| Typical recharge time | 3 hour(s) | ||||||||||
| RBC™ Quantity | 1 | ||||||||||
| Runtime Graph |  Hover over the line on the graph above to view the runtime at any desired load Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
||||||||||

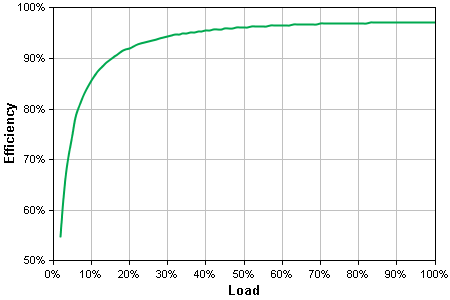

| Energy Use/Efficiency | |||||||||||
|
 Hover over the line on the graph above to view the efficiency at any desired load Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
||||||||||
| Communications & Management | |||||||||||
| Interface Port(s) | RJ-45 Serial,USB | ||||||||||
| Control panel | Multi-function LCD status and control console | ||||||||||
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays | ||||||||||
| Emergency Power Off (EPO) | -- | ||||||||||
| Surge Protection and Filtering | |||||||||||
| Surge energy rating | 455 Joules | ||||||||||
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 | ||||||||||
| Physical | |||||||||||
| Maximum Height | 8.46 inches (215 mm) | ||||||||||
| Maximum Width | 6.72 inches (171 mm) | ||||||||||
| Maximum Depth | 17.30 inches (439 mm) | ||||||||||
| Net Weight | 38.00 lbs. (17.27 kg) | ||||||||||
| Shipping Weight | 43.00 lbs. (19.55 kg) | ||||||||||
| Shipping Height | 14.80 inches (376 mm) | ||||||||||
| Shipping Width | 12.91 inches (328 mm) | ||||||||||
| Shipping Depth | 23.43 inches (595 mm) | ||||||||||
| Color | Black | ||||||||||
| Units per Pallet | 24.00 | ||||||||||
| Environmental | |||||||||||
| Operating Environment | 32 - 104°F (0 - 40°C) | ||||||||||
| Operating Relative Humidity | 0 - 95% | ||||||||||
| Operating Elevation | 0-10000 feet (0-3000 meters) | ||||||||||
| Storage Temperature | 5 - 113 °F (-15 - 45 °C) | ||||||||||
| Storage Relative Humidity | 0 - 95% | ||||||||||
| Storage Elevation | 0-50000 feet (0-15000 meters) | ||||||||||
| Audible noise at 1 meter from surface of unit | 41.00 dBA | ||||||||||
| Online Thermal Dissipation | 100.00 BTU/hr | ||||||||||
| Conformance | |||||||||||
| Regulatory Approvals | CSA,NOM,UL 1778 | ||||||||||
| Standard Warranty | 2 years repair or replace | ||||||||||
| Equipment protection policy | Lifetime: $150000 | ||||||||||
| Environmental Compliance | RoHS 7b Exemption,REACH: Contains No SVHCs | ||||||||||
Documentation:
Download the APC SmartUPS C SMC1000/1500 Data Sheet (PDF).
