What is the APC Back-UPS BW650U1?

The APC Back-UPS BW650U1 is a 650VA/360W standby UPS with 7 NEMA 5-15R outlets (5 battery backup + surge, 2 surge only), a USB Type A charging port (2.4A), 490J surge protection, and Energy Star V2.0 certification. It protects home and home office electronics from power outages and voltage fluctuations.

How long does the BW650U1 run on battery?

The BW650U1 provides approximately 71 minutes at 36W (entry-level desktop), 31 minutes at 79W (laptop), 18.5 minutes at 119W (mid-range PC), and 6 minutes at 240W (gaming PC). At half load (165W) runtime is approximately 11.5 minutes and at full load (330W) approximately 2.5 minutes.

Does the BW650U1 have a USB charging port?

Yes. The BW650U1 includes a USB Type A charging port (2.4A) for fast charging smartphones and tablets directly from the UPS without using an outlet.

What surge protection does the BW650U1 provide?

The BW650U1 provides 490 Joules of surge protection. All 7 outlets are surge protected, defending connected electronics from damaging surges, spikes, and lightning.

Is the BW650U1 battery user-replaceable?

Yes. The BW650U1 uses a user-replaceable sealed lead-acid battery (APCRBCV211), allowing you to replace the battery at home without requiring a costly technician visit.

What warranty does the APC BW650U1 come with?

The BW650U1 comes with a 36-month (3-year) UPS warranty and a 12-month battery warranty, backed by Energy Star V2.0 (USA), California CEC, and cTUVus certifications.

APC Back-UPS 650VA, 120V

Battery Backup & Surge Protection with USB Charging for Home and Home Office

BW650U1 — APC Back-UPS 650VA

APC Back-UPS 650VA, 120V, 1 USB charging port, Retail

Includes: User Manual

Better pricing available. Our dedicated team of APC experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing on orders before 4:15 pm PST

Authorized APC Reseller — Proudly serving customers for over 20 years

Product Overview

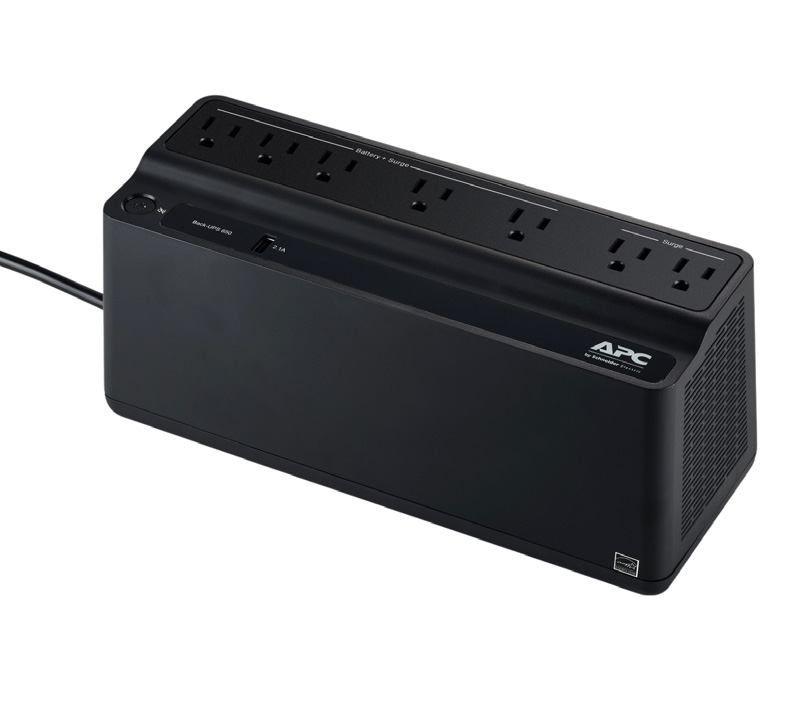

APC Back-UPS BW650U1

The APC Back-UPS BW650U1 provides 650VA/360W of battery backup and surge protection for home and home office electronics. When power is interrupted or fluctuates outside expected levels, the BW650U1 instantly delivers clean battery power to keep your sensitive devices protected and connected.

Protect from the unexpected

Power disturbances can cause equipment damage and shorten electronic device lifespan. The BW650U1 provides instant protection so your devices stay powered and your data stays safe when the power fails.

Home Office

Keep your PC, monitor, and networking gear running so you can save your work and shut down safely.

Wireless Networks

Protect your router and modem — stay connected through any power event.

Gaming Consoles

Avoid lost progress — keep gaming consoles powered through outages and surges.

Mobile Devices

Fast-charge smartphones and tablets via the built-in USB Type A port (2.4A) during an outage.

7 outlets and USB charging in a compact tower

The BW650U1 delivers 5 battery backup & surge outlets for critical equipment plus 2 surge-only outlets for secondary devices — all in a compact tower form factor with a USB-A charging port for mobile devices.

5 Battery Backup & Surge Outlets

Keep critical devices powered during outages with full surge protection.

2 Surge Only Outlets

Protect secondary equipment without reducing battery capacity.

USB Type A Charging Port

2.4A fast charging for smartphones and tablets — no outlet needed.

LED Status & Mute Button

Instant visual status with a mute button to silence low battery alarms.

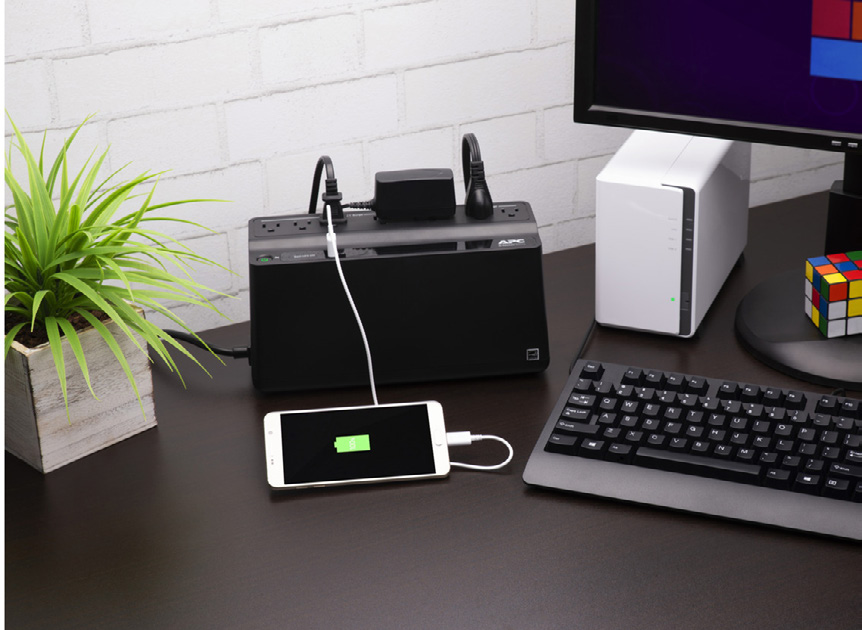

APC Back-UPS BW650U1 protecting home electronics

Key Details

Features & Benefits

What makes the BW650U1 the right UPS for your home or home office.

7 Protected Outlets

5 battery backup & surge outlets for critical gear plus 2 surge-only outlets for secondary devices — all surge protected at 490 Joules.

USB-A Fast Charging

Built-in USB Type A port at 2.4A charges smartphones and tablets quickly during a power outage, without using an outlet.

490J Surge Protection

All outlets protected against surges, spikes, and lightning. Consistent, clean power helps your electronics perform better and last longer.

Easy-to-understand user interface

LED status indicators give you instant, at-a-glance information on UPS and battery status, so you always know the condition of your power protection.

On Line / On Battery LED indicators
Mute button to silence low battery alarms
Audible alarm when on battery; distinctive low battery alarm
Overload continuous tone alarm

User Replaceable Battery

Replace the battery at home without requiring a costly technician visit. The BW650U1 uses a standard sealed lead-acid replacement battery (APCRBCV211) with a straightforward swap process.

Replacement battery: APCRBCV211
No technician required
Extends the useful life of your UPS
Saves on long-term replacement costs

650VA / 360W Capacity

Sufficient capacity for a home office workstation, wireless network, and additional devices. Over 1 hour of runtime at light loads (36W) keeps you connected through most outages.

View Runtime Chart →

3-Year Warranty & Energy Star

Backed by a 36-month UPS warranty, 12-month battery warranty, and Energy Star V2.0 (USA) certification. California CEC and cTUVus certified for safety and efficiency.

Talk to an Expert →

Runtime Data

Runtime Chart

Estimated battery runtime for the BW650U1 (650VA / 360W) at 120V across typical home and office loads.

BW650U1 — Estimated Runtime at 120V

36W
71m
entry-level desktop

79W

31m

laptop

119W

18.5m

mid-range PC

240W

gaming PC

Load / Application	Power Draw	Runtime
Entry-level desktop ★	36W	1 hr 11 mins
Laptop computer	79W	31 mins
Mid-range PC	119W	18.5 mins
Gaming PC	240W	6 mins
Half load	165W	11.5 mins
Full load	330W	2.5 mins

Runtime values are approximate and may vary based on load, battery age, and ambient temperature.

Technical Details

Specifications

Full technical specifications for the APC Back-UPS BW650U1 650VA.

Output

Output Power Capacity360W / 650VA

Nominal Output Voltage120V AC, 1 phase

Output Frequency50/60 Hz ±1 Hz

TopologyStandby

Waveform TypeStepped approximation to a sinewave

Output Connections(5) NEMA 5-15R Battery Backup & Surge + (2) NEMA 5-15R Surge Only

Transfer Time6ms typical / 10ms maximum

Input

Nominal Input Voltage120V AC, 1 phase

Input Frequency50/60 Hz ±5 Hz (auto-sensing)

Input Voltage Range88–143V

Input ConnectionNEMA 5-15P (right angle plug)

Cord Length5 ft (1.5 m)

Batteries & Runtime

Battery TypeSealed Lead-Acid, internal

Replacement BatteryAPCRBCV211

Runtime at Half Load (165W)11.5 minutes

Runtime at Full Load (330W)2.5 minutes

Communications & Management

USB Charging PortUSB Type A, 2.4A

UPS ConnectivityNone

Control PanelLED status display: On Line / On Battery; Mute button

Audible AlarmOn battery; low battery; overload continuous tone

Surge Protection

Surge Energy Rating490 Joules

AC Surge ProtectionAll outlets protected

Physical

Dimensions (H×W×D)5.47 × 4.13 × 10.79 in (139 × 105 × 274 mm)

Net Weight6.8 lb (3.1 kg)

Shipping Weight7.9 lb (3.6 kg)

MountingTower (not rack-mountable)

GTIN731304764564

Environmental

Operating Temperature32–104°F (0–40°C)

Storage Temperature5–113°F (-15–45°C)

Operating Humidity0–90%

Operating Altitude0–6,666 ft

Storage Altitude0–10,000 ft

Conformance & Warranty

Approvals / CertificationsCalifornia (CEC) Battery Charger, cTUVus, ENERGY STAR V2.0 (USA)

Equipment Protection Policy$75,000

UPS Warranty36 months (3 years)

Battery Warranty12 months

RoHSCompliant by Exemption

Product Images

Image Gallery

Click any image to view full size.

Downloads

Documentation

Official APC product documentation for the Back-UPS BW650U1.

Product Brochure

APC Back-UPS BW650U1 product brochure covering features, benefits, runtime estimates, and specifications.

Download Brochure (PDF) →

Product Datasheet

Full technical datasheet for the APC Back-UPS BW650U1 including detailed specifications, environmental data, certifications, and ordering information.

Download Datasheet (PDF) →
