AP8888
Includes: Installation guide, Rack Mounting brackets, Serial configuration cable, Safety guide
Looking for Better Pricing? Please Contact Us for help!
APC Products
APC NetShelter Metered Rack PDUs

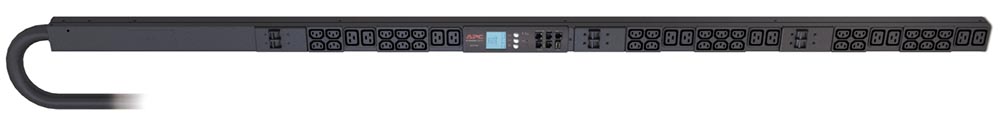

APC NetShelter Metered Rack PDU, 2G, 0U, 23.0kW, 240V, 30 C13 and 12 C19 outlets
#AP8888
Get a Quote!
More pricing below, click here!
Overview
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
- Ideal for colocation, large or remote data center operators
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Stay on top of potential circuit overloads with user-defined alarms
- Real-time remote monitoring and management through EcoStruxure IT & Secure NMC3
- Zero U toolless installation
Features & Benefits:
Local Current Monitoring Display
- Aggregate current draw per power distribution is displayed on the unit via a digital display.
Alarm Threshold
- Customers define alarm thresholds to avoid overloaded circuits.
Remote Management Capabilities
- Allows users to access, configure and manage units from remote locations to save time.
Rack mountable
- Includes horizontal, vertical and toolless-mount options.
Applications
- Data Centers and Server Rooms
- Networking and Edge Computing Closets
- High-Density IT Environments
- Colocation Facilities
Technical Specifications:
| Color |
Black |
| Product or Component Type |
PDU |
| PDU Type |
Metered |
| Cord length |
5.97 ft (1.82 m) |
| Number of cables |
1 |
| Provided Equipment |
Installation guide
Rack Mounting brackets
Serial configuration cable
Safety guide |
| Input Voltage |
400 V 3 phase |
| Height |
72.008 in (1829 mm) |
| Width |
2.2 in (55 mm) |
| Output Voltage |
240 V |
| Depth |
2.008 in (51 mm) |
| Net Weight |
22.3 lb(US) (10.1 kg) |
| Mounting Location |
Side |
| Mounting preference |
No preference |
| Input Plug Type |
IEC 60309 60 A 3P+N+E |
| Mounting Mode |
Rack-mounted |
| Line Rated Current |
32 A |
| Input current limits |
40 A |
| Load Capacity |
23000 VA |
| Input Frequency |
50/60 Hz |
| Outlet type and quantity |
30 IEC 60320 C13
12 IEC 60320 C19 |
| Product Certifications |
cUL Listed
UL Listed
VCCI Class A |
| Standards |
EN 55022 Class A
EN 55024
EN 61000-3-2
EN 61000-3-3
FCC Part 15 class A
ICES-003 |
| Ambient Air Temperature for Operation |
23…140 °F (-5…60 °C) |
| Relative Humidity |
5…95 % |
| Operating altitude |
0...10000 ft |
| Ambient Air Temperature for Storage |
-13…149 °F (-25…65 °C) |
| Storage Relative Humidity |
5…95 % |
| Storage altitude |
0…50000 ft (0…15240 m) |
| GTIN |
731304289944 |
| Country of origin |
IN |
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
84.6 in (214.9 cm) |
| Package 1 Width |
4.4 in (11.2 cm) |
| Package 1 Length |
8.7 in (22.1 cm) |
| Package weight(Lbs) |
30.97 lb(US) (14.05 kg) |
| Warranty (in months) |
24 |
