AP8881

Includes: Installation guide, Rack Mounting brackets, Serial configuration cable, Safety guide
Looking for Better Pricing? Please Contact Us for help!
APC Products
APC NetShelter Metered Rack PDUs

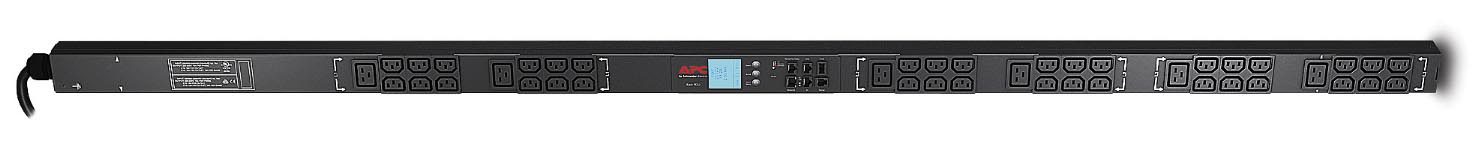

APC NetShelter Metered Rack PDU, 0U, 3PH, 11kW 230V 16A or 11kW 230V 16A, 36 C13 and 6 C19 outlets, IEC 309 3P+N+PE cord
#AP8881
Get a Quote!
More pricing below, click here!
Overview
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
- Ideal for colocation, large or remote data center operators
- Plan capacity & balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Enables improved energy efficiency and scope 1 and 3 emissions tracking
- Easily monitor and manage through EcoStruxure IT and other platforms
- 1-Year Secure Network Management Card subscription included
Features & Benefits:
Local Current Monitoring Display
- Aggregate current draw per power distribution is displayed on the unit via a digital display.
Alarm Threshold
- Customers define alarm thresholds to avoid overloaded circuits.
Remote Management Capabilities
- Allows users to access, configure and manage units from remote locations to save time.
Rack mountable
- Includes horizontal, vertical and toolless-mount options.
Applications
- Data Centers and Server Rooms
- Networking and Edge Computing Closets
- High-Density IT Environments
- Colocation Facilities
Technical Specifications:
| Color |
Black |
| Product or Component Type |
PDU |
| PDU Type |
Metered |
| Cord length |
5.97 ft (1.82 m) |
| Number of cables |
1 |
| Provided Equipment |
Installation guide Rack Mounting brackets Serial configuration cable Safety guide |
| Input Voltage |
400 V 3 phase |
| Height |
70.5 in (1791 mm) |
| Width |
2.2 in (55 mm) |
| Output Voltage |
230 V |
| Depth |
1.7 in (44 mm) |
| Net Weight |
14.07 lb(US) (6.38 kg) |
| Mounting Location |
Side |
| Mounting preference |
No preference |
| Input Plug Type |

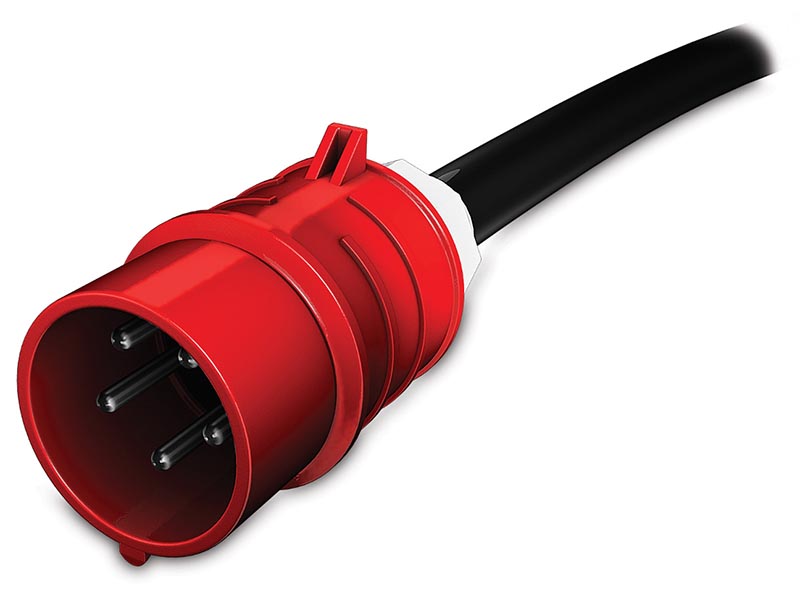

IEC 60309 16 A 3P+N+PE IEC 60309 20 A 3P+N+PE |
| Mounting Mode |
Rack-mounted |
| Rack units |
0U |
| USB compatible |
No |
| Mounting position |
Vertical |
| Line Rated Current |
16 A |
| Max line current |
16 A |
| Input current limits |
16 A |
| Load Capacity |
11000 VA |
| Input Frequency |
50/60 Hz |
| Outlet type and quantity |
36 IEC 60320 C13 6 IEC 60320 C19 |
| Product Certifications |
VDE |
| Standards |
CSA C22.2 No. 60950 IEC 60950 UL 60950-1 |
| Ambient Air Temperature for Operation |
23…140 °F (-5…60 °C) |
| Relative Humidity |
5…95 % |
| Operating altitude |
0...10000 ft |
| Ambient Air Temperature for Storage |
-13…149 °F (-25…65 °C) |
| Storage Relative Humidity |
5…95 % |
| Storage altitude |
0…50000 ft (0…15240 m) |
| GTIN |
731304277071 |
| Country of origin |
IN |
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
78.7 in (200 cm) |
| Package 1 Width |
6.4 in (16.2 cm) |
| Package 1 Length |
4.2 in (10.7 cm) |
| Package weight(Lbs) |
17.68 lb(US) (8.02 kg) |
| Warranty (in months) |
24 |
Pricing Notes:
- Pricing and product availability subject to change without notice.
- Note: Shipping charges may vary depending on the selected unit's weight or the quantity of units selected. As a result, the shipping charges may change from the value you receive at checkout. A customer representative will confirm these changes with you if they occur before processing your order.
