What is the APC Symmetra LX SYA8K8RMP?

The SYA8K8RMP is an 8kVA rack-mount UPS fully configured for 8kVA N+1 redundancy in a 13U frame. It features 208/240V input with 208/240V and 120V output, hot-swappable SYBT5 battery modules, and a full NMC3 management suite.

What is the efficiency of the SYA8K8RMP at full load?

The SYA8K8RMP features a high-efficiency architecture achieving 89.9% efficiency at 100% load, helping to reduce energy costs and heat output in your data center.

What is the difference between the SYA8K8RMP and SYA8K8RMI?

The SYA8K8RMP is the 208/240V variant designed for North American markets, while the SYA8K8RMI is the 230V international variant. Both share the same 13U frame and 8kVA N+1 redundancy configuration.

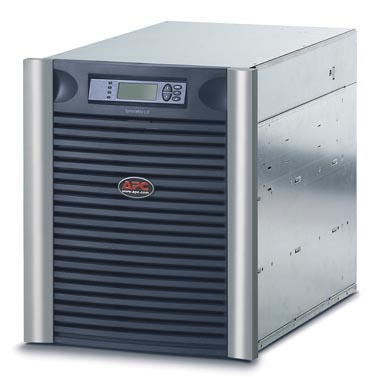

APC Symmetra LX 8kVA N+1 Rack-mount

APC Symmetra LX, 8kVA N+1, Rack-mount, 208/240V Input, 208/240V and 120V Output

APC Symmetra LX SYA8K8RMP 8kVA Rack-mount UPS

SYA8K8RMP — Symmetra LX 8kVA Rack-mount

APC Symmetra LX, 8kVA N+1, Rack-mount, 208/240V Input, 208/240V and 120V Output

Better pricing available. Our dedicated team of APC experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing on orders before 4:15 pm PST

Authorized APC Reseller — Proudly serving customers for over 20 years

Product Overview

SYA8K8RMP / SYA8K8RMI

Overview: 8kVA capacity, fully configured for 8kVA N+1 redundancy in a 13U frame.
Problem & Solution: Addresses immediate high-load requirements in mid-sized racks where 4kVA is insufficient, but 13U is the maximum vertical space available for power.
Key Features:
- Hot-swappable SYBT5 battery modules.
- Full NMC3 management suite.
- High-efficiency architecture (89.9% at 100% load).
Specifications:
- U-Height: 13U (572 mm)
- Weight: 178.2 kg (216.8 kg shipping)
- Voltage: 208V/240V (P) or 230V (I)
- Thermal Dissipation: 2762 BTU/hr

Key Details

Features & Benefits

N+1 Redundancy

Configurable N+1 redundancy ensures continuous power availability even during a power module failure, providing an extra layer of protection for critical loads.

Hot-Swappable

Hot-swappable power modules, battery modules, and intelligence modules allow maintenance and upgrades without powering down connected equipment.

Network Manageable

Pre-installed Network Management Card 3 (NMC3) enables remote monitoring, configuration, and integration with StruxureWare and other management platforms.

Scalable

Modular architecture allows you to scale power capacity and runtime as demand grows, protecting your initial investment and reducing total cost of ownership.

Technical Details

Specifications

Full technical specifications for the APC Symmetra LX SYA8K8RMP.

Output

Output Power Capacity6400 Watts / 8000 VA

Nominal Output Voltage120V, 208V

Efficiency at Full Load89.9%

Waveform TypeSine wave

Input

Nominal Input Voltage208V / 240V

Input Frequency45 - 65 Hz (auto sensing)

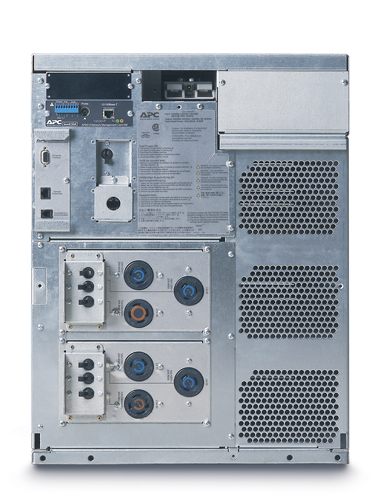

Input ConnectionsHard Wire 4-wire (2PH+N+G)

Batteries & Runtime

Battery TypeMaintenance-free sealed Lead-Acid

Replacement BatterySYBT5

Typical Recharge Time3 hours

Physical

Rack Height13U

Height22.50 inches (572 mm)

Width18.60 inches (472 mm)

Depth27.10 inches (688 mm)

Net Weight392 lbs (178.2 kg)

Shipping Weight477 lbs (216.8 kg)

Environmental

Operating Temperature32 - 104°F (0 - 40°C)

Operating Elevation0-10000 feet (0-3000 meters)

Thermal Dissipation2762 BTU/hr

Downloads

Documentation

Official APC product documentation for the Symmetra LX SYA8K8RMP.

Product Brochure

Symmetra 208V 4-16kVA product brochure with detailed feature overview and application guidance.

Technical Specifications

Complete technical specifications for the Symmetra LX 208V/240V rack-mount and tower UPS models.
