What is the scalable power range of the APC Symmetra LX SYA8K16P?

The SYA8K16P is a mid-range tower UPS that starts at 8kVA and can scale up to 16kVA with N+1 redundancy by adding additional power modules.

What circuit breaker is required for the SYA8K16P?

The SYA8K16P requires a 100A external breaker for the full 16kVA potential.

What is the difference between the SYA8K16P and SYA8K16I?

The SYA8K16P supports 208/240V input with 208/240V and 120V output, while the SYA8K16I is the international variant supporting 230V input and output. Both share the same 8kVA to 16kVA scalable tower form factor.

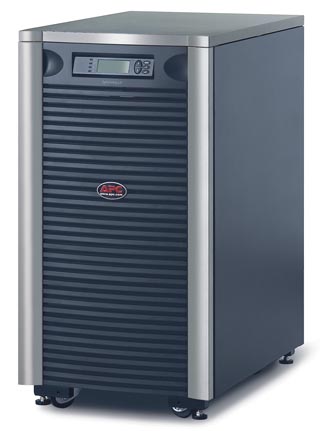

APC Symmetra LX SYA8K16P 8-16kVA Tower

8kVA Scalable to 16kVA N+1 Tower UPS with 208/240V Input

SYA8K16P — Symmetra LX 8-16kVA Tower

APC Symmetra LX, 8kVA Scalable to 16kVA N+1, Tower, 208/240V Input, 208/240V and 120V Output

Better pricing available. Our dedicated team of APC experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing on orders before 4:15 pm PST

Authorized APC Reseller — Proudly serving customers for over 20 years

Product Overview

SYA8K16P / SYA8K16I

Differentiator: Mid-range tower in the large 937 mm frame, scalable to 16kVA.
Facility Impact: Requires 100A external breaker for the full 16kVA potential.
Specs: 219.6 kg; 937 mm height; 3707 BTU/hr.

Key Details

Features & Benefits

Scalable Power Capacity

Start at 8kVA and scale to 16kVA as demand grows, reducing over-sizing costs today by allowing quick upgrades later.

N+1 Redundancy

Configurable for N+1 internal redundancy, providing high availability through redundant power modules.

Hot-Swappable Components

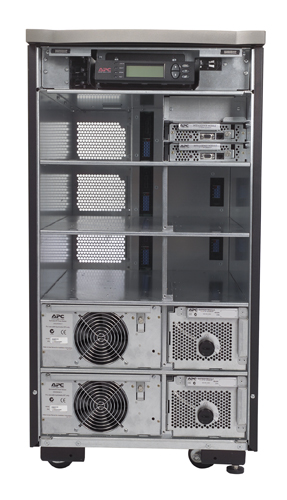

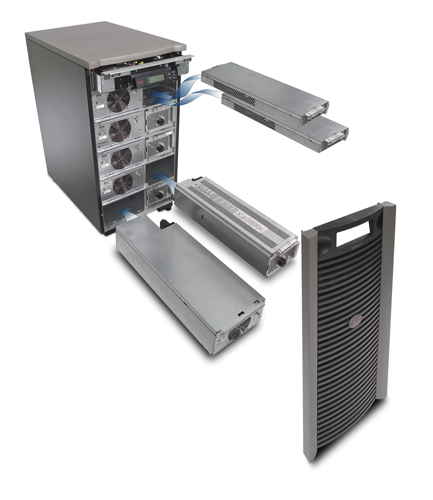

Hot-swappable power modules, batteries, and intelligence modules ensure uninterrupted power during maintenance.

Network Manageable

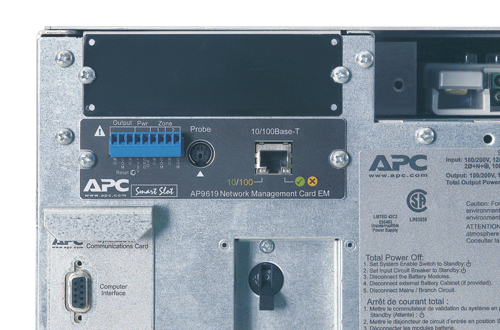

Built-in network management with SmartSlot interface for remote monitoring and centralized control.

Technical Details

Specifications

Full technical specifications for the APC Symmetra LX SYA8K16P.

Output

Output Power Capacity6400 Watts / 8000 VA

Max Configurable Power12800 Watts / 16000 VA

Nominal Output Voltage120V, 208V

Output Voltage NoteConfigurable for 208 or 240 nominal output voltage

Efficiency at Full Load90%

Waveform TypeSine wave

Input

Nominal Input Voltage208V

Input Frequency45 - 65 Hz (auto sensing)

Input ConnectionsHard Wire 4-wire (2PH+N+G)

Other Input Voltages240V

Batteries & Runtime

Battery TypeMaintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Included Battery Modules2

Replacement BatterySYBT5

Typical Recharge Time3 hours

Physical

Height36.89 inches (937 mm)

Width19.00 inches (483 mm)

Depth28.60 inches (726 mm)

Net Weight484.00 lbs (219.6 kg)

Environmental

Operating Temperature32 - 104 °F (0 - 40 °C)

Operating Elevation0-10000 feet (0-3000 meters)

Online Thermal Dissipation3707 BTU/hr

Audible Noise62.00 dBA

Conformance

Standard Warranty2 years repair or replace

Regulatory ApprovalsCSA, FCC Part 15 Class A, UL 1778

Downloads

Documentation

Official APC product documentation for the Symmetra LX SYA8K16P.

208V Brochure

Product brochure for the APC Symmetra LX 208V Tower UPS family.

208V / 240V Technical Specifications

Detailed technical specifications for the Symmetra LX 208V and 240V Tower models.
