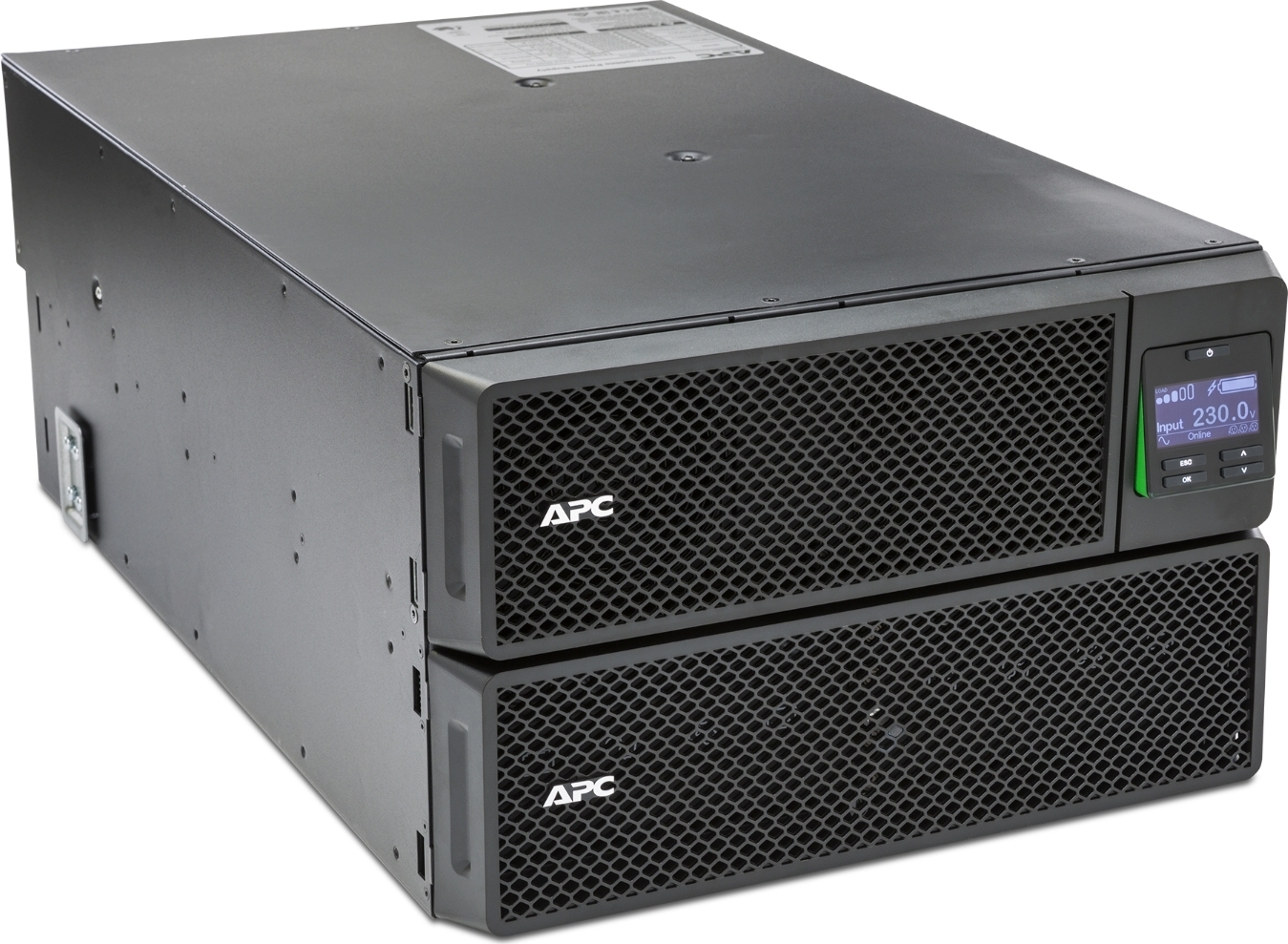

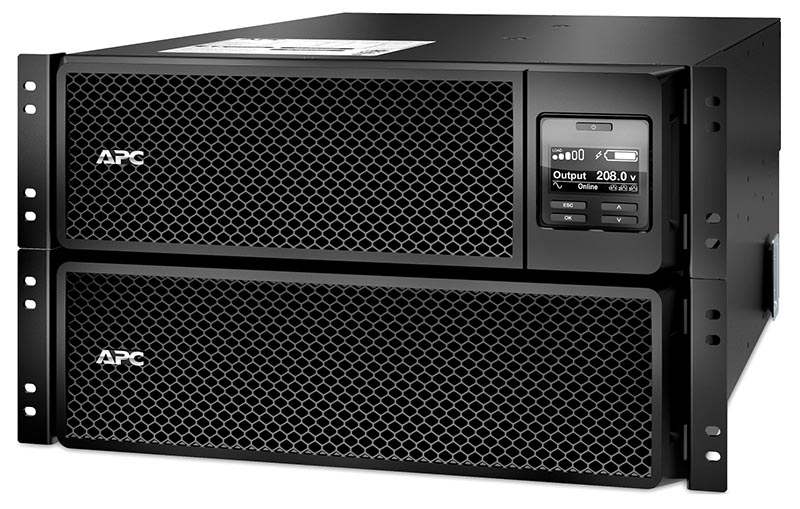

APC Smart-UPS SRT 8000VA RM 208V
APC Smart-UPS On-Line, 8kVA/8kW, Rackmount 6U, 208V, 4x L6-20R+2x L6-30R NEMA outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit

A versatile UPS developed for the harshest power conditions in the world.

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

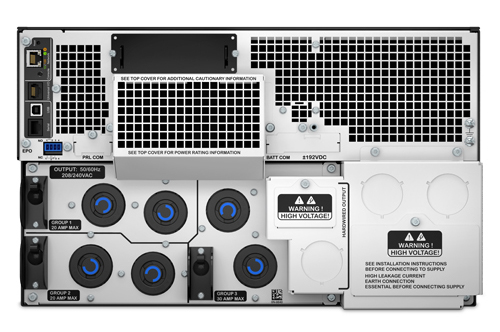

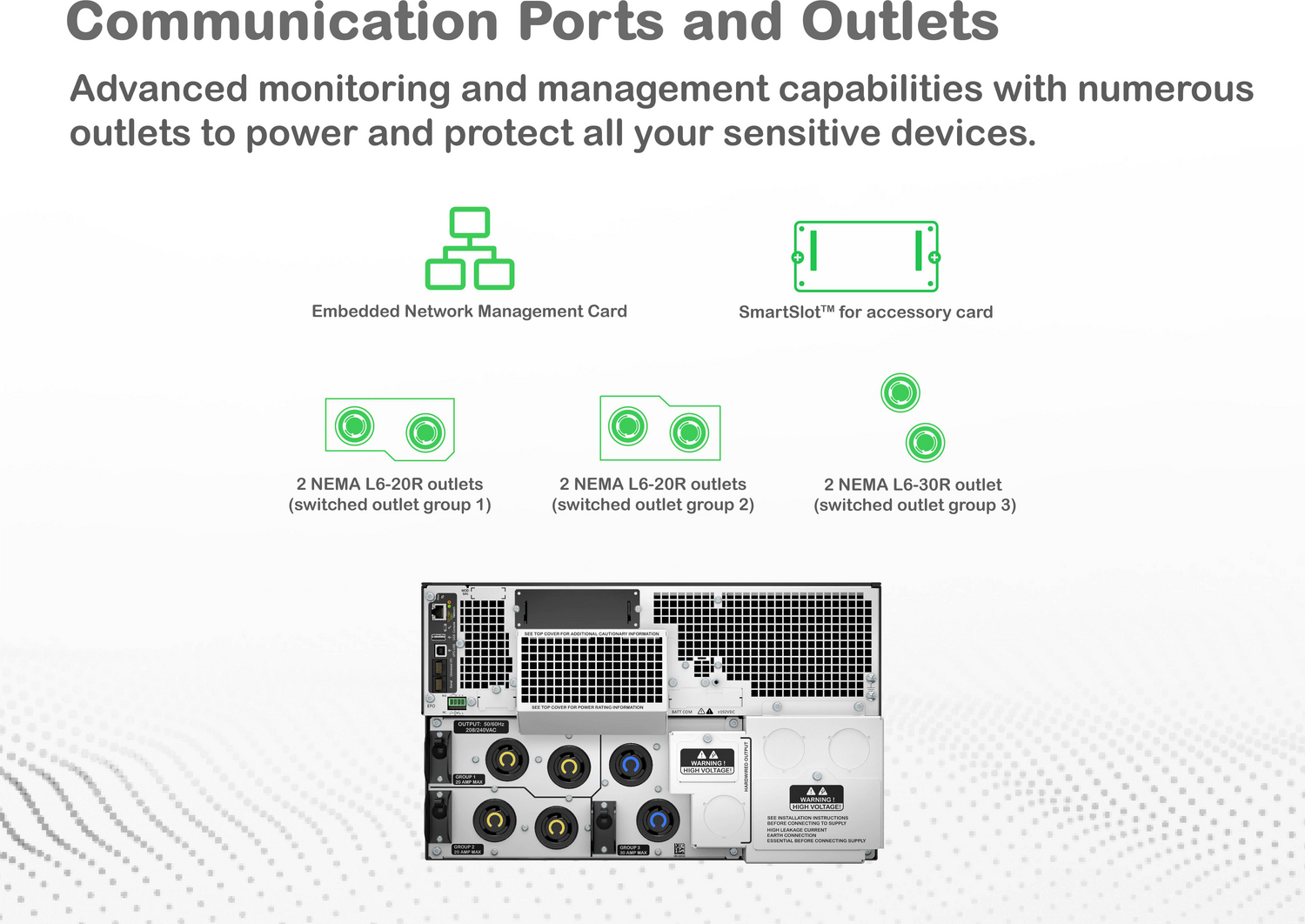

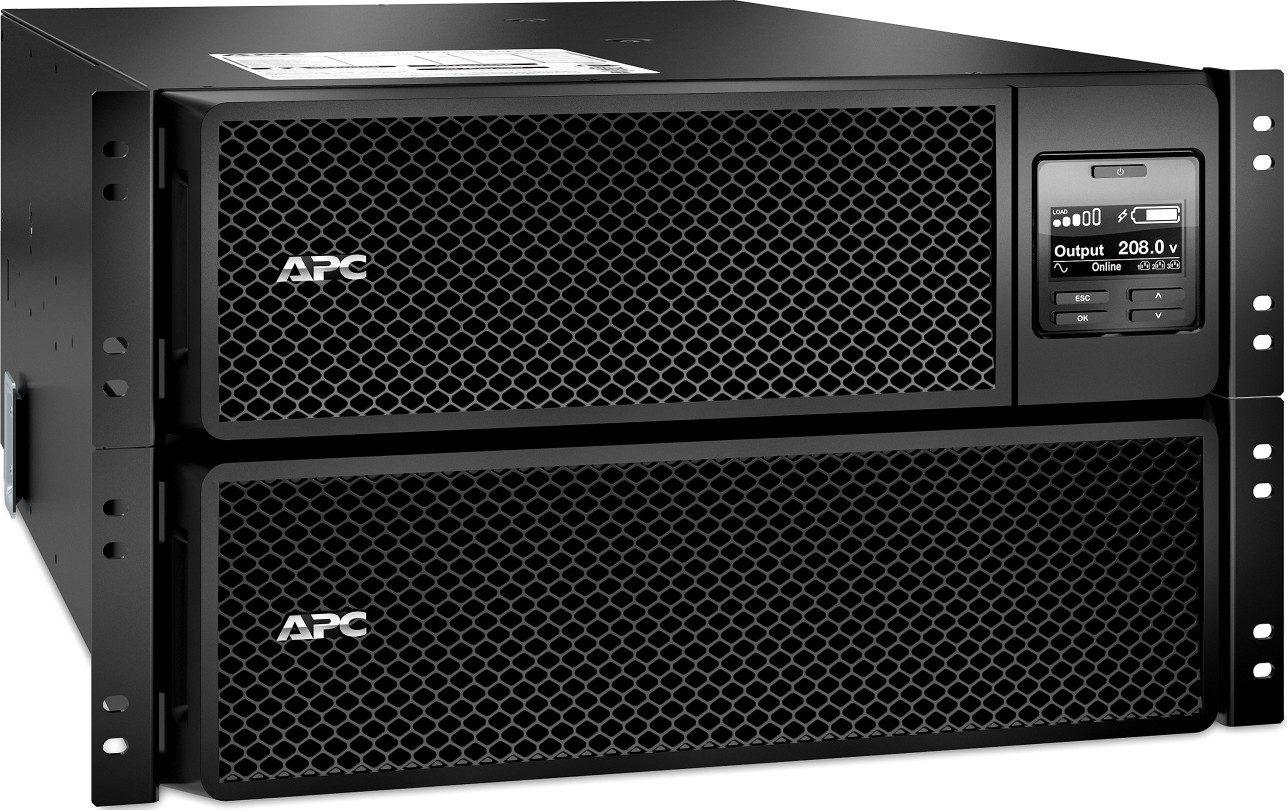

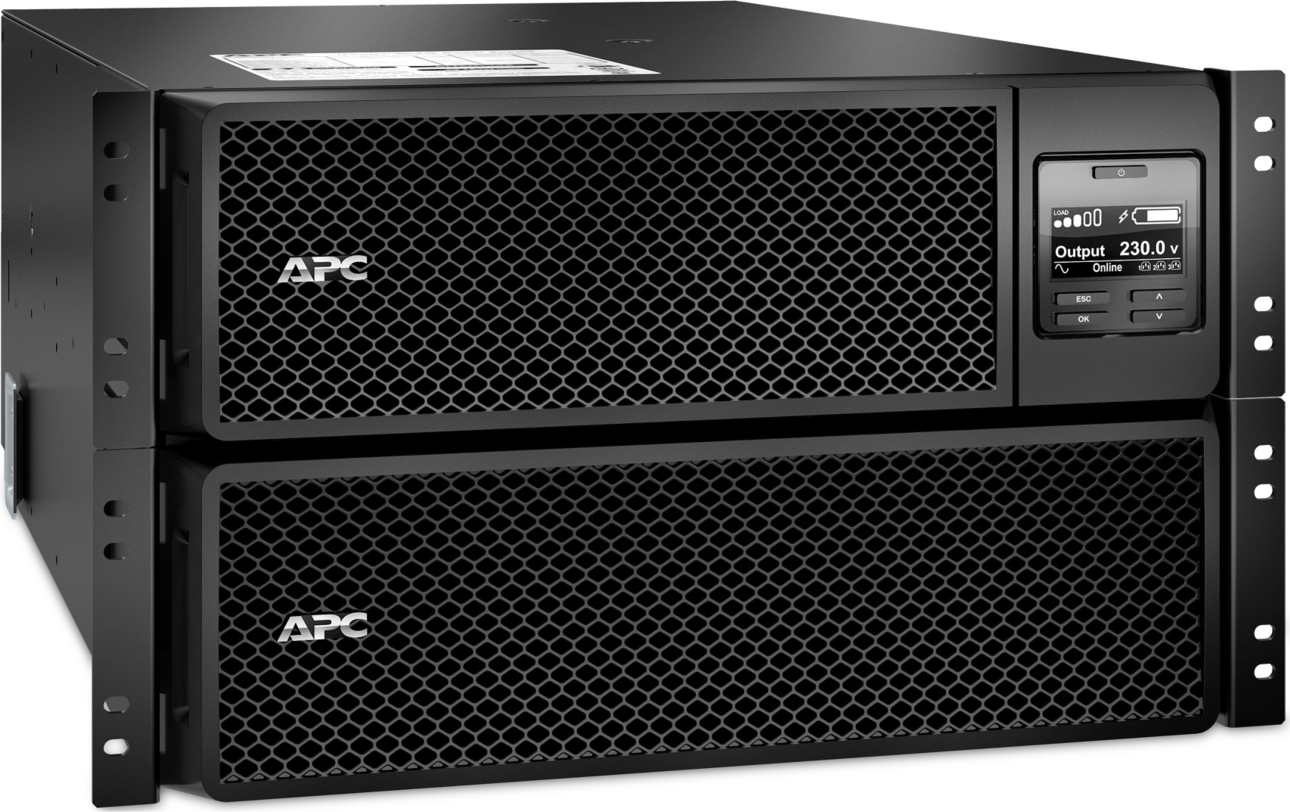

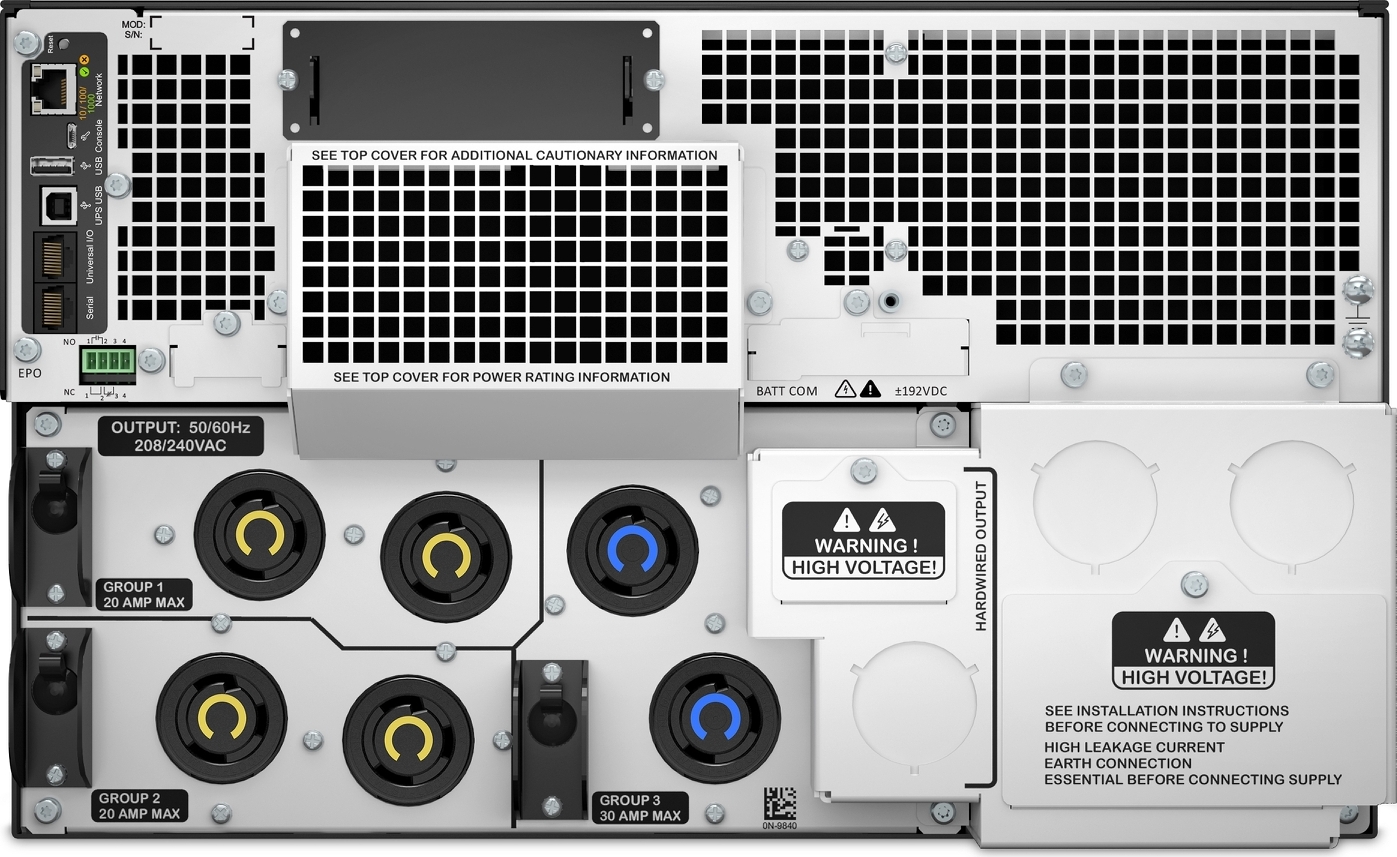

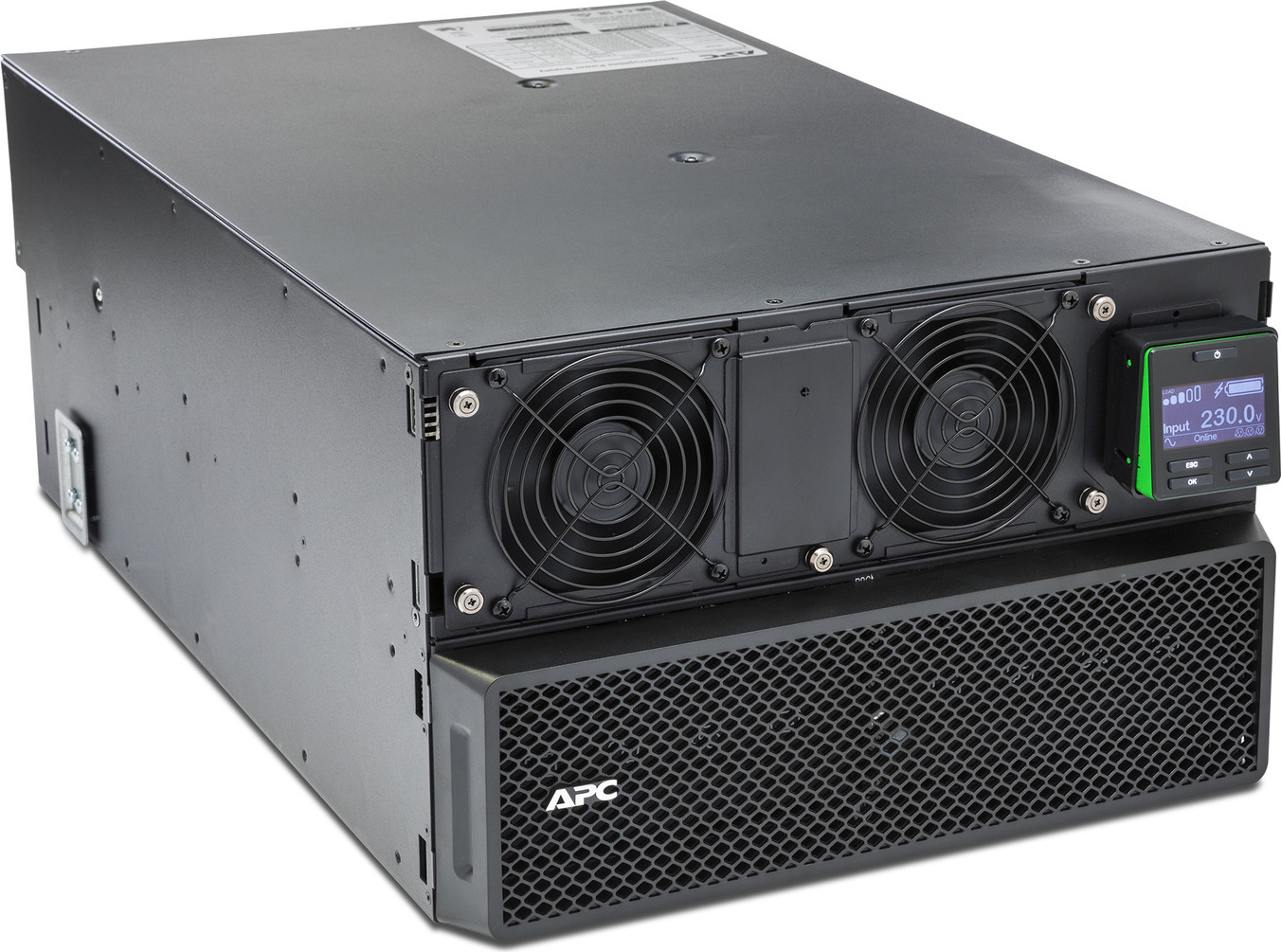

This 8kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hard Wire 3-wire (2P+E) input, 4x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Features & Benefits:

Adaptability

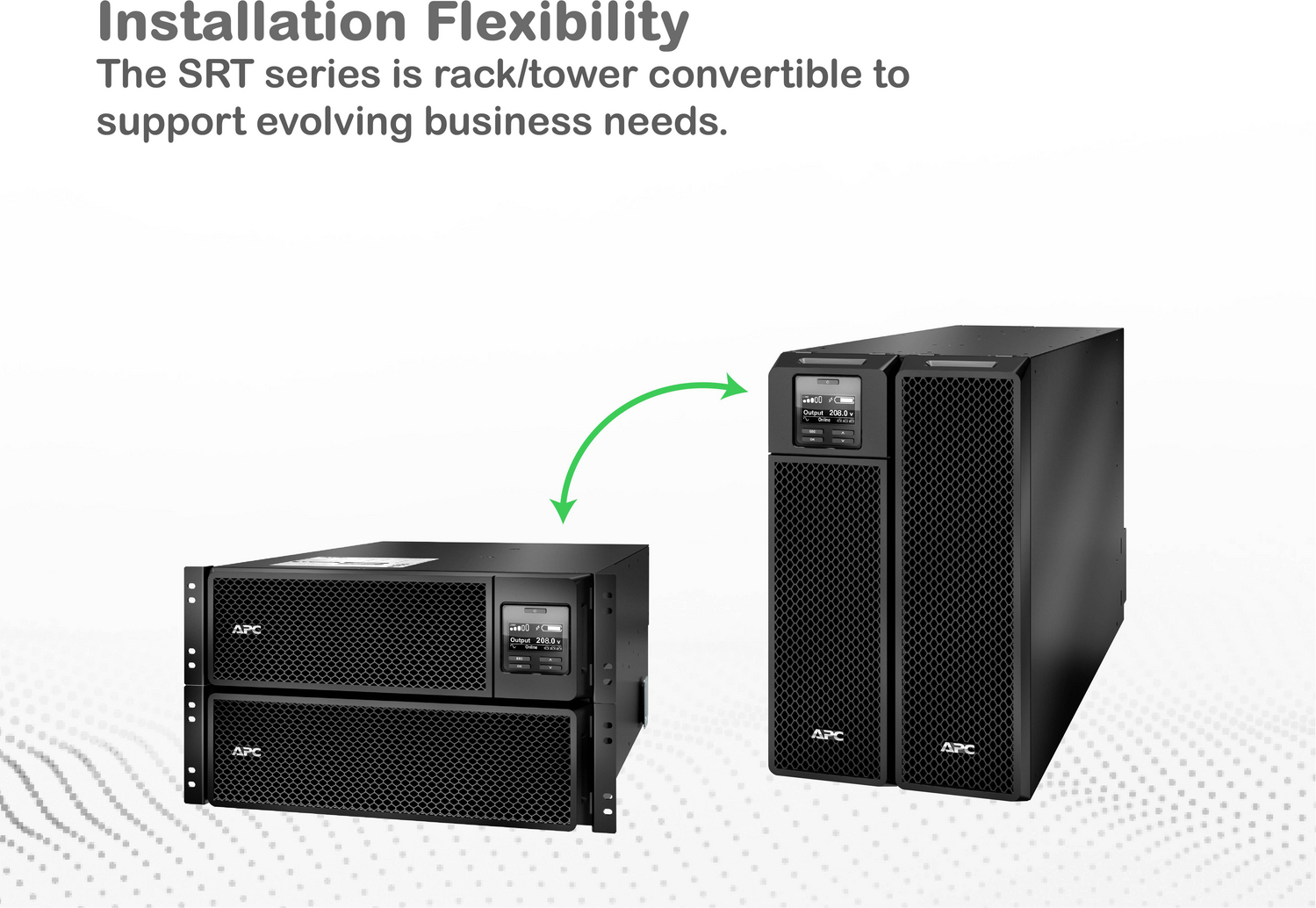

• Rack/Tower convertible - Rack-mount and tower installation options enable flexible setup.

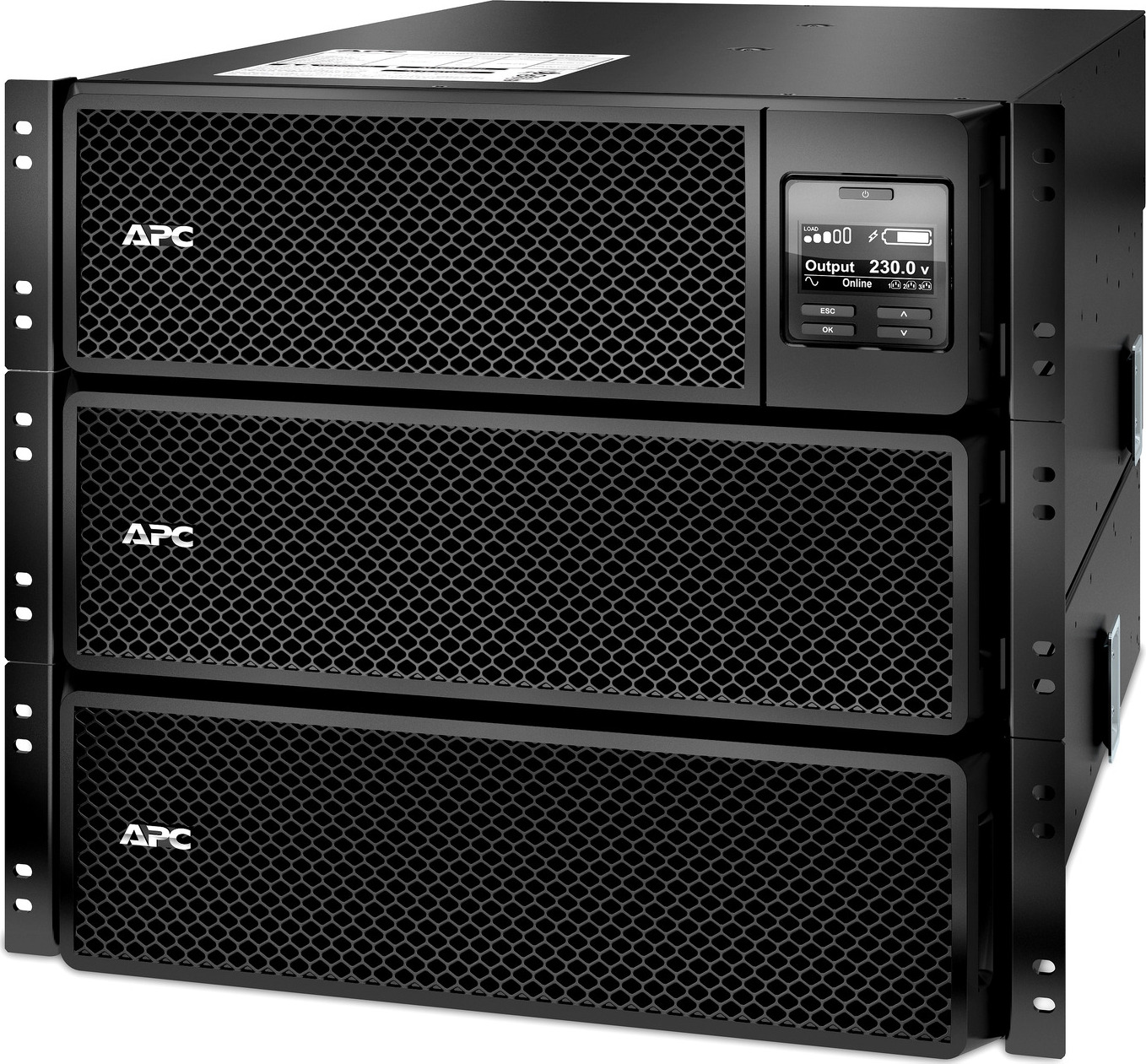

• Extended runtime external battery options - Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Manageability

• Serial connectivity - Provides management of the UPS via a serial port.

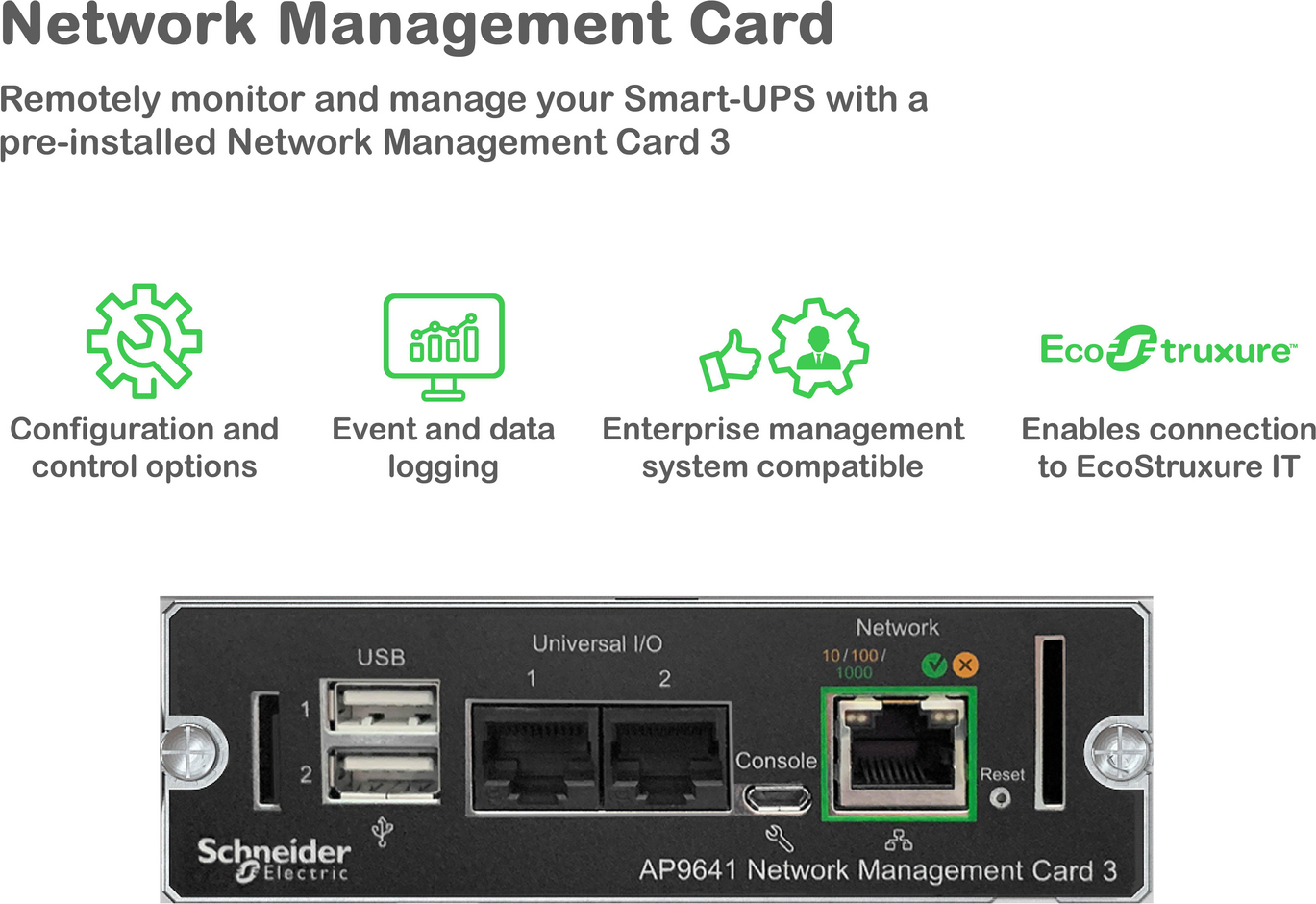

• SmartSlot and/or Embedded NMC - Customize UPS capabilities with management cards.
• EcoStruxure Ready - Provides remote UPS monitoring and management options.

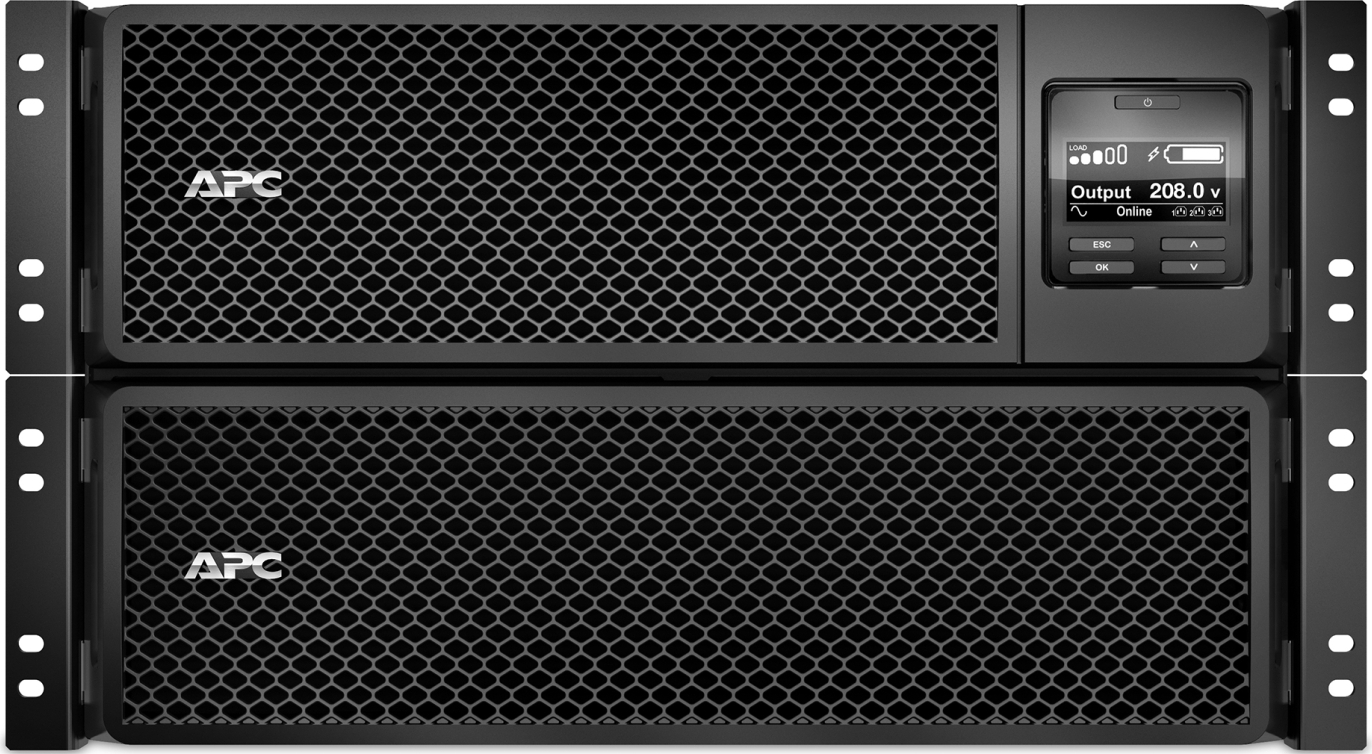

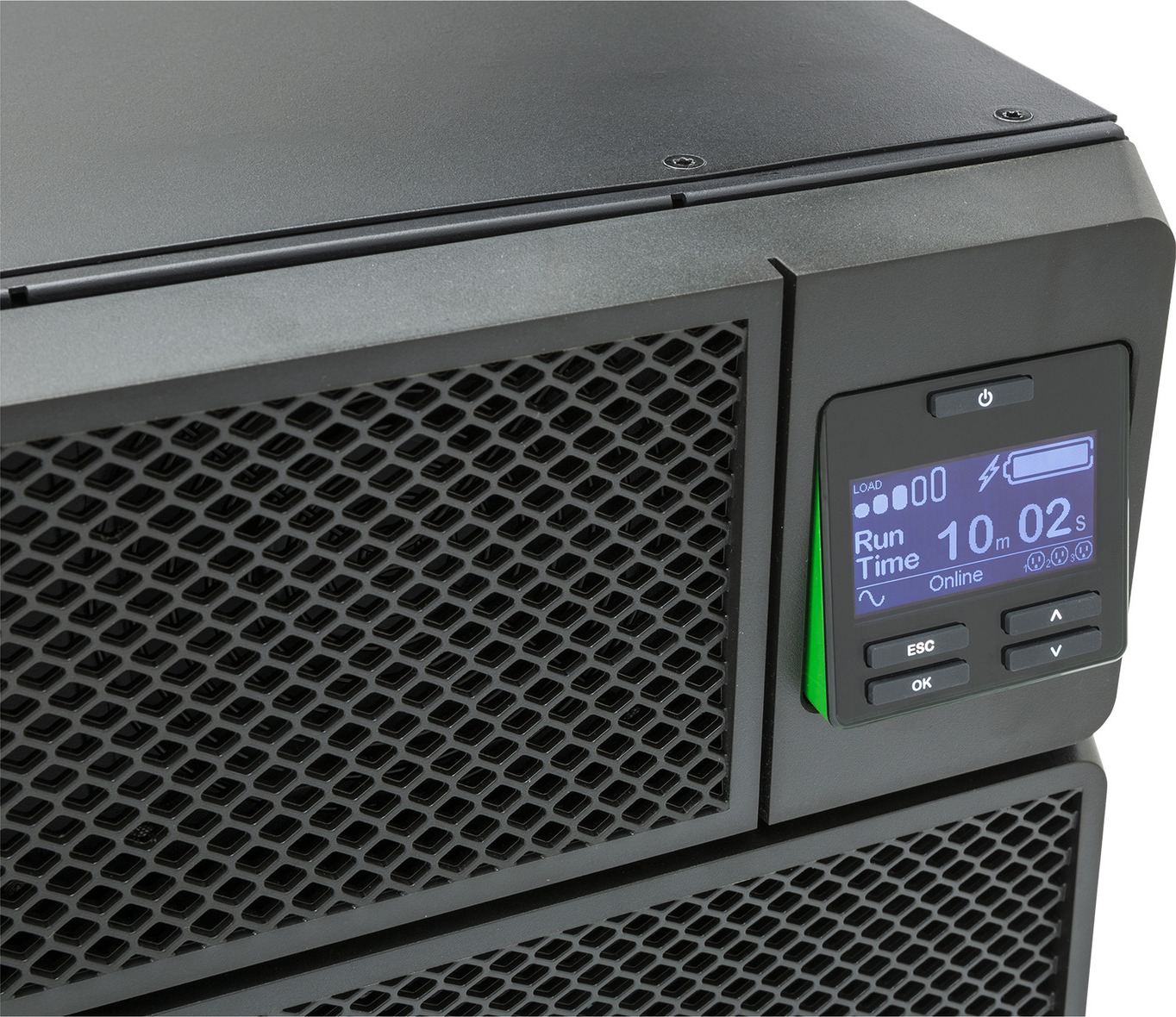

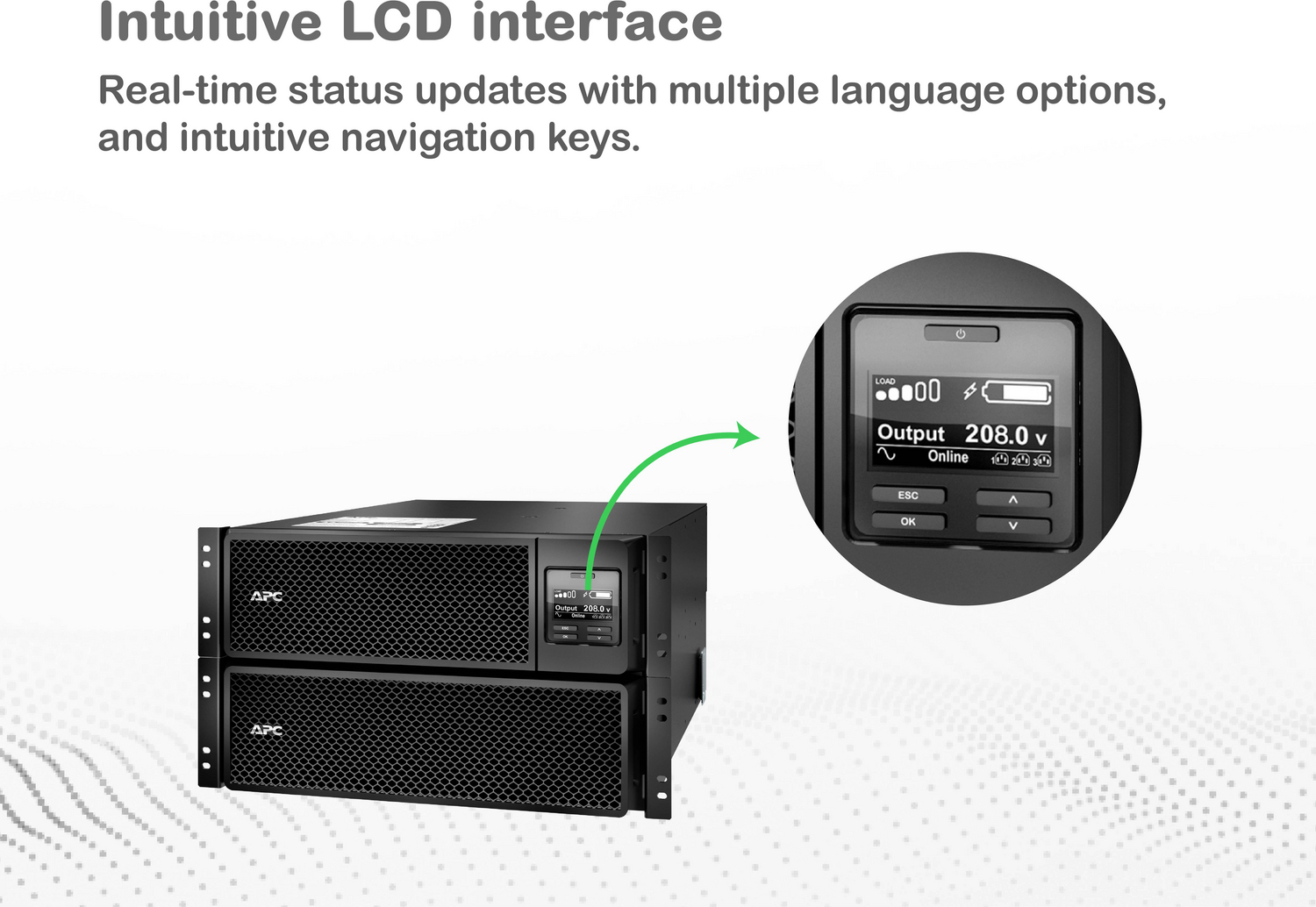

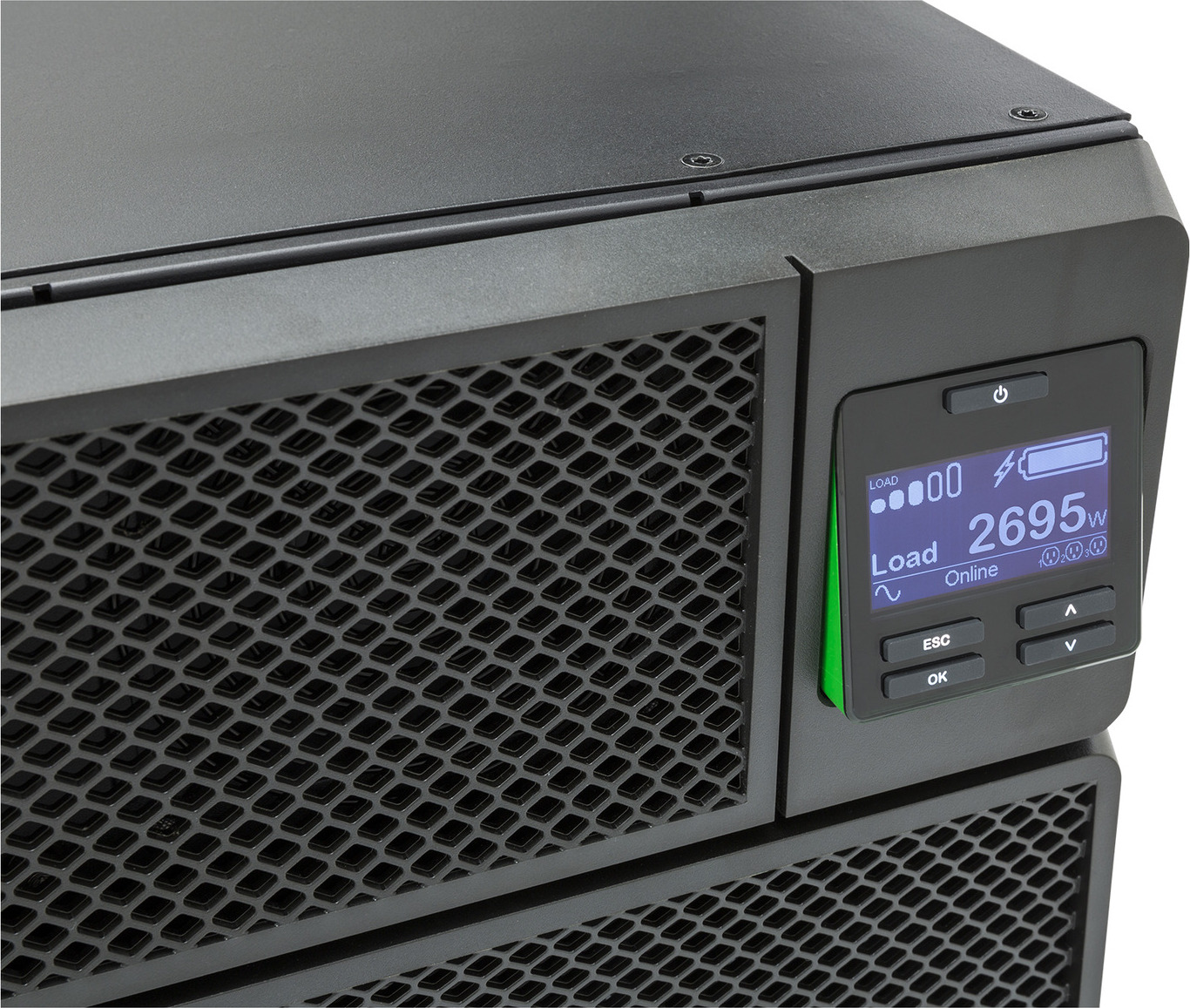

• LED status indicators and audible alarms - Quickly understand unit and power status with visual and audible indicators.

Availability

• Automatic internal bypass - Supplies utility power to the connected loads in the event of a UPS power overload or fault.
• Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.

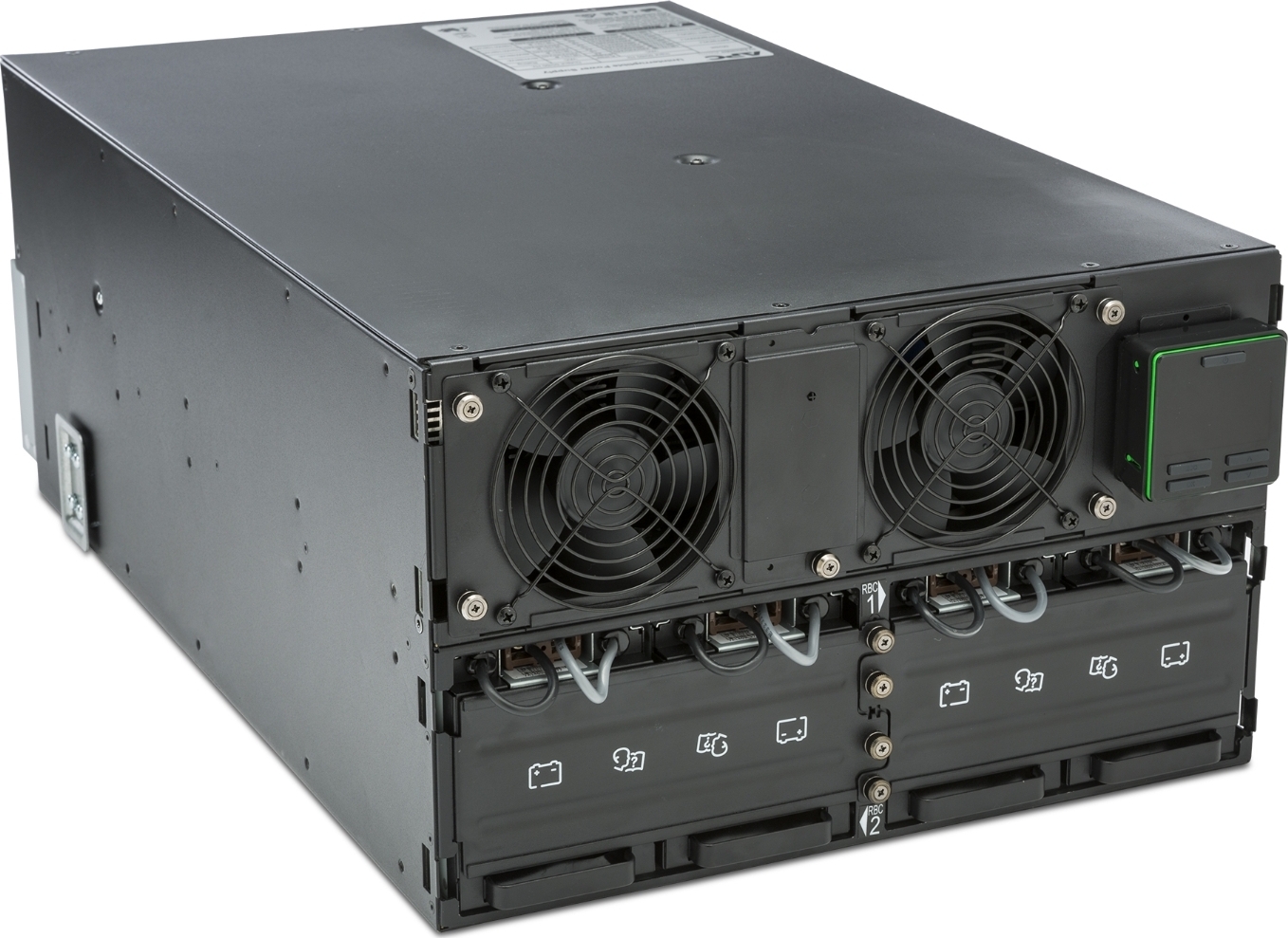

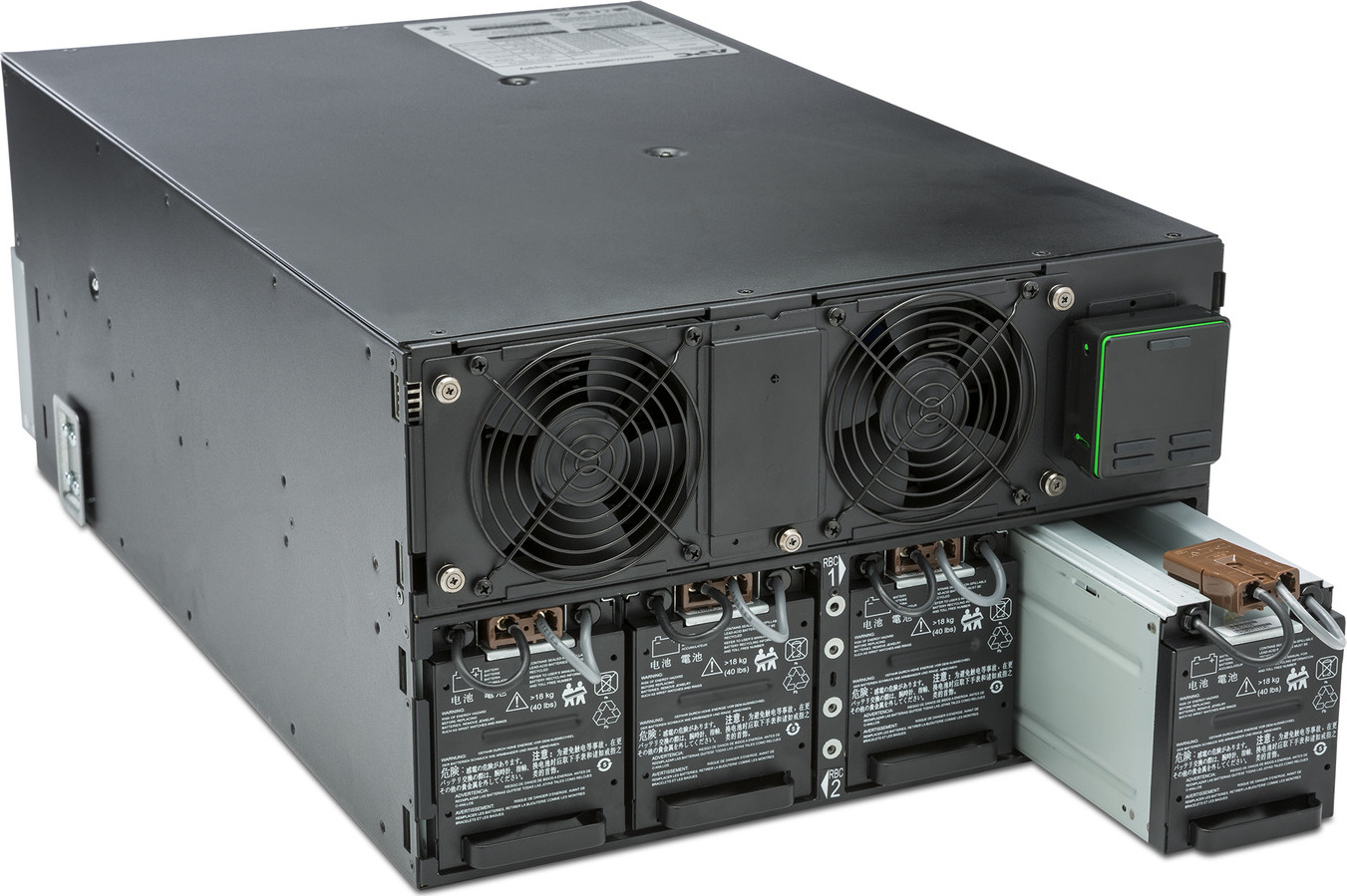

• Live-swap capable - Add or swap batteries without interrupting the UPS load.
• Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.

Protection

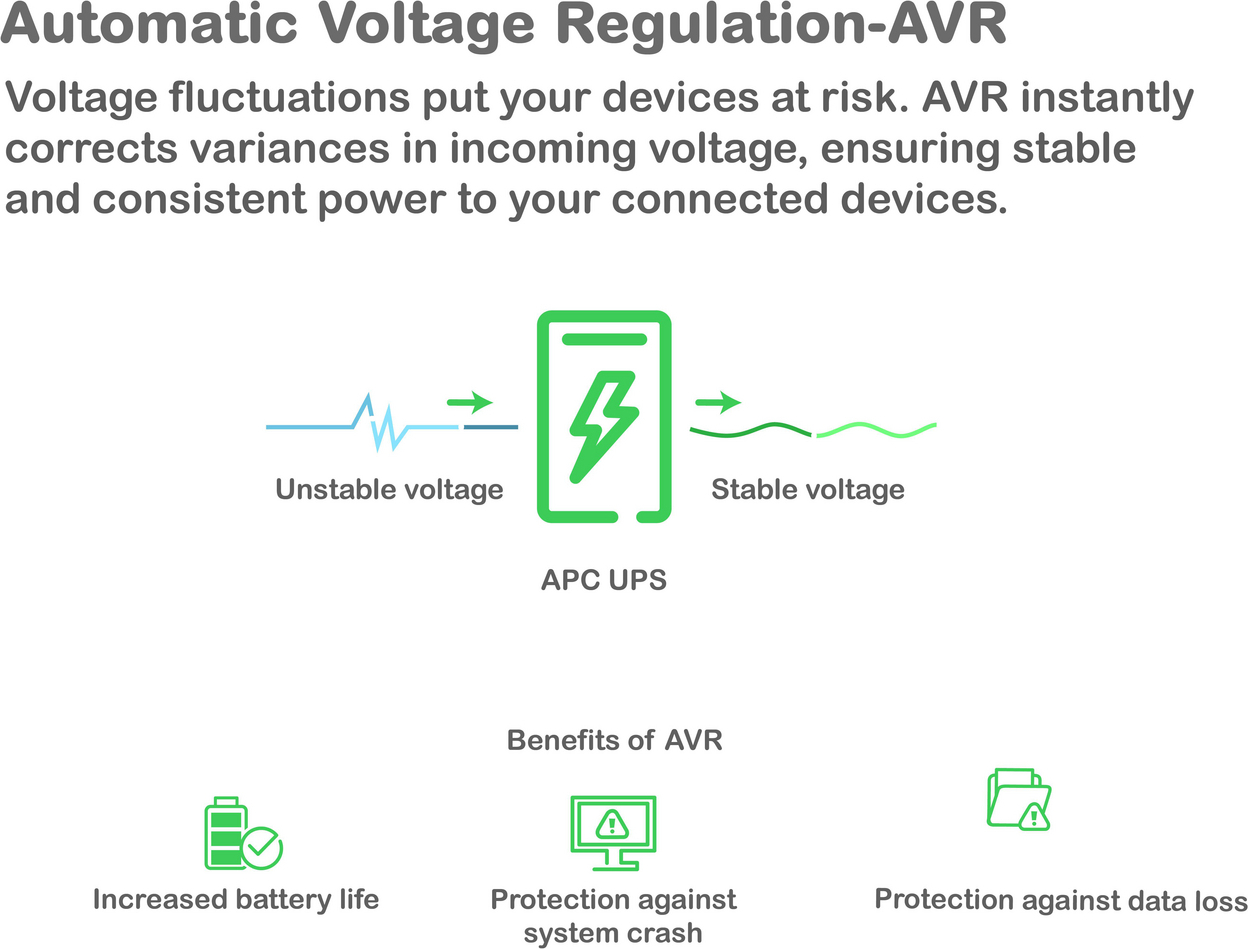

• Frequency and voltage regulation - Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
• Safety-agency approved - Ensures the product has been tested and approved to work with the connected service provider equipment and within the specified environment.
• Resettable circuit breaker - Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
• Cold-start capable - Provides temporary battery power when the utility power is out.

Serviceability

• Disconnected battery notification - Warns when a battery is not available to provide backup power.
• Predictive failure notification - Provides early-warning fault analysis ensuring proactive component replacement.
• Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries.

Technical Specifications:
