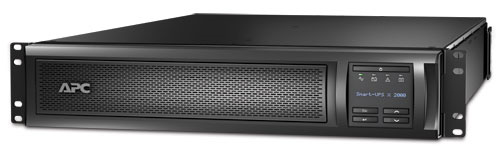

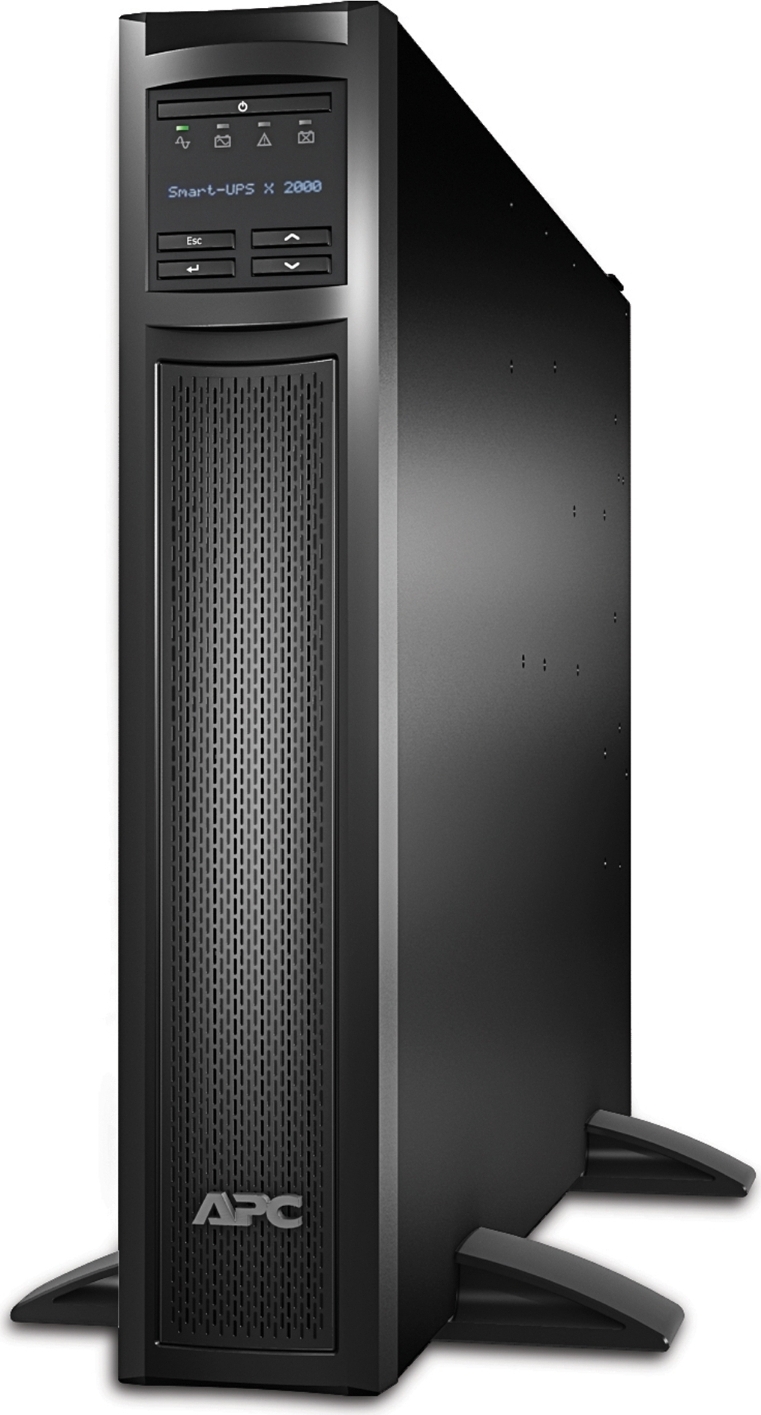

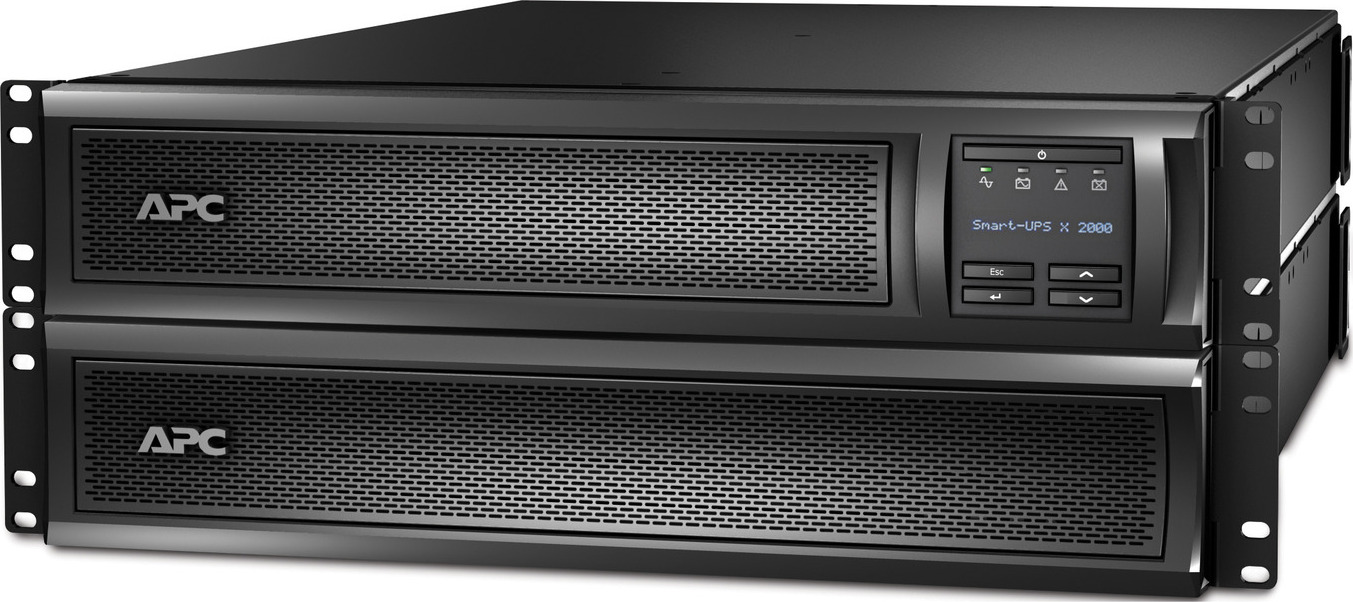

APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V
APC Smart-UPS, 1800 Watts / 1920 VA,Input 120V / Output 120V, Interface Port SmartSlot, Extended runtime model, Rack Height 2 U

Over 20 million units sold - the UPS you can trust

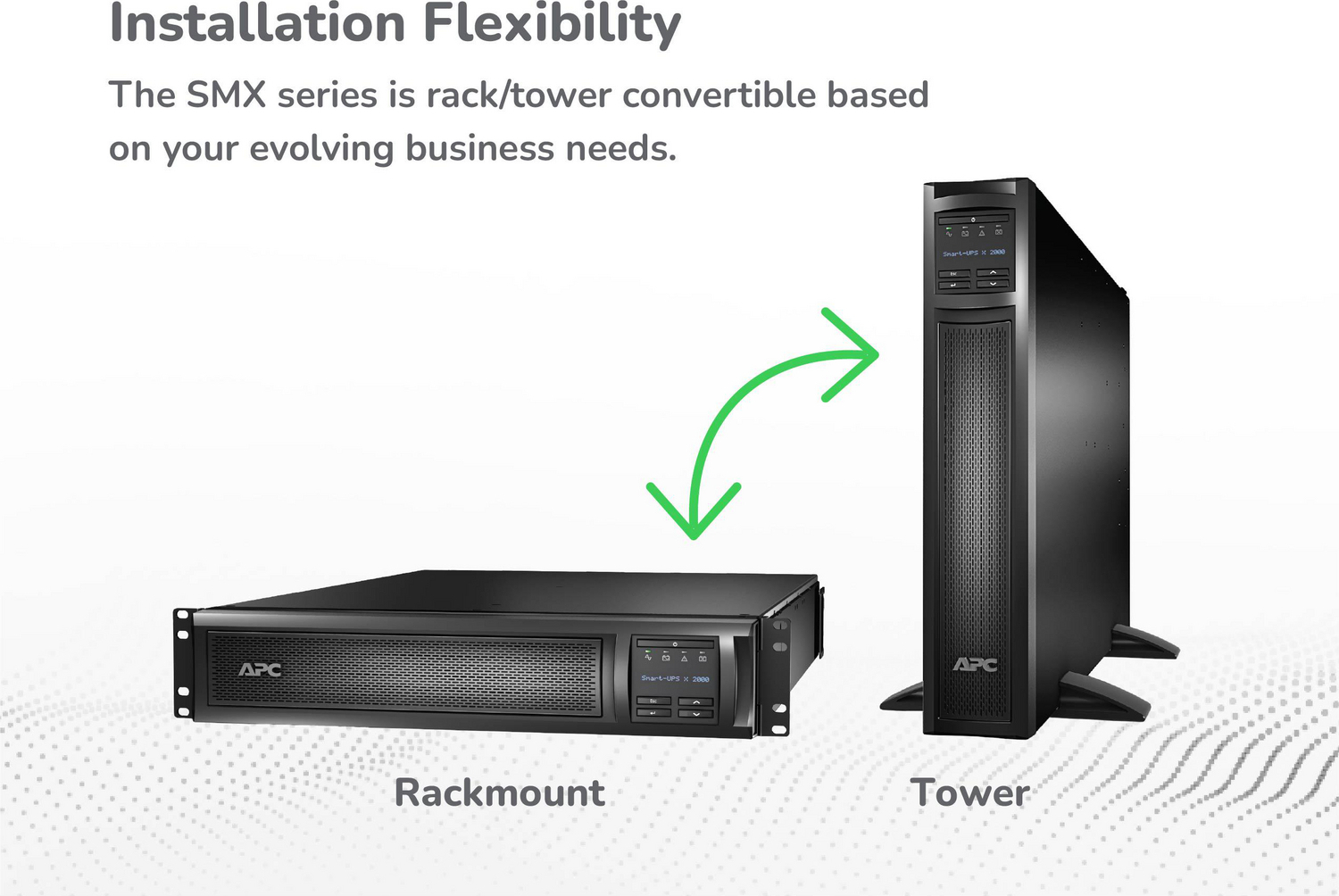

APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Features & Benefits:

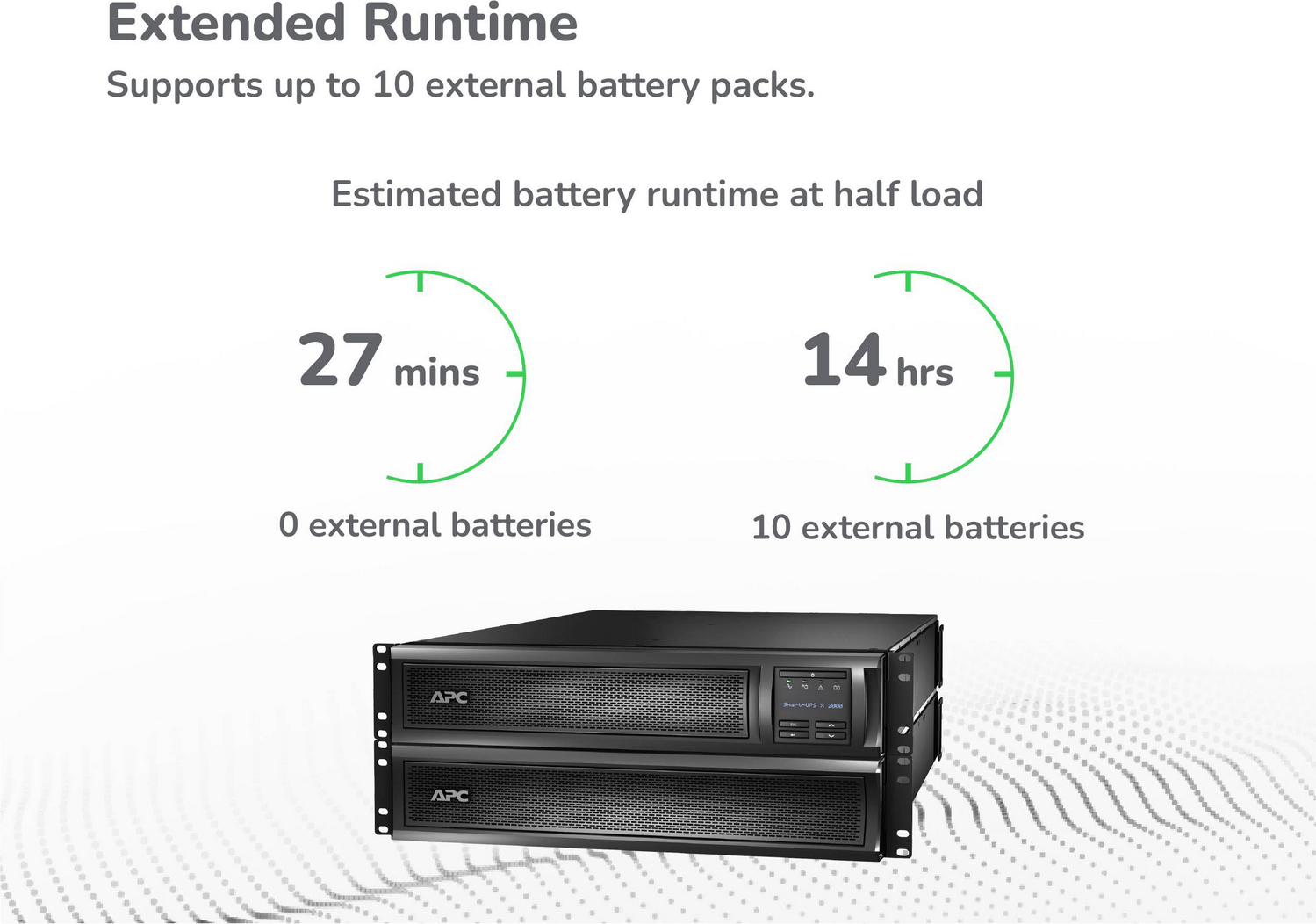

Runtime Chart:

Click here for APC Smart-Ups XL Runtime Chart. (pop-up window)

Technical Specifications:

Output
Output Power Capacity	1800 Watts / 1920 VA
Max Configurable Power	1800 Watts / 1920 VA
Nominal Output Voltage	120V
Efficiency at Full Load	98%
Output Voltage Distortion	Less than 5% at full load
Output Frequency (sync to mains)	47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Waveform Type	Sine wave

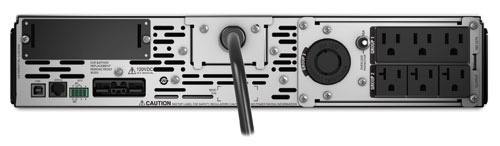

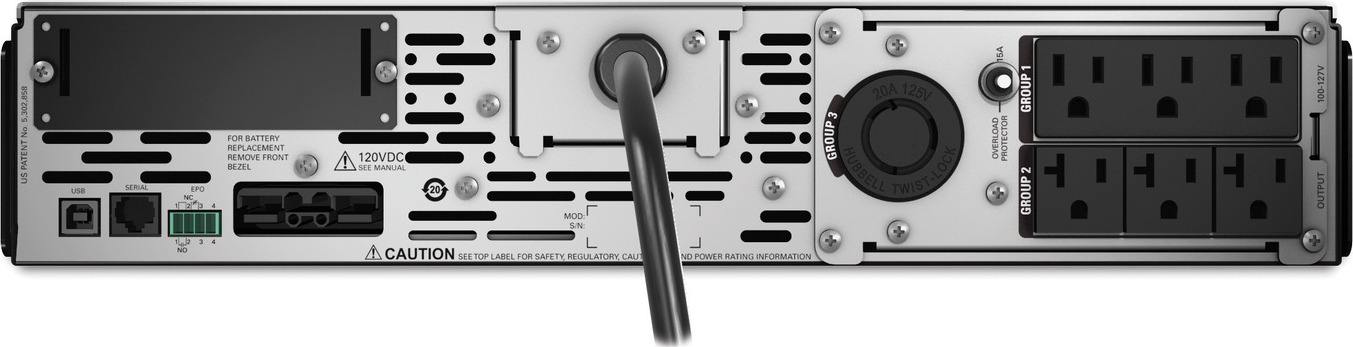

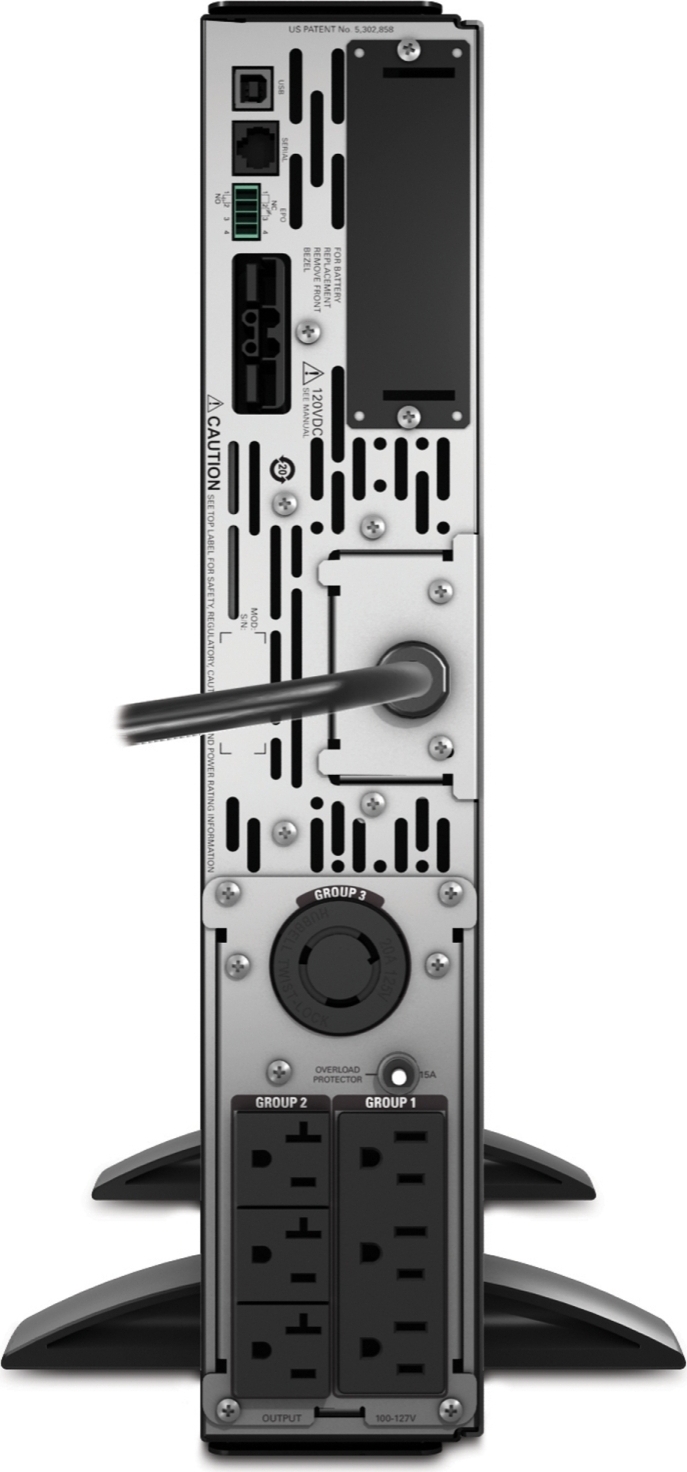

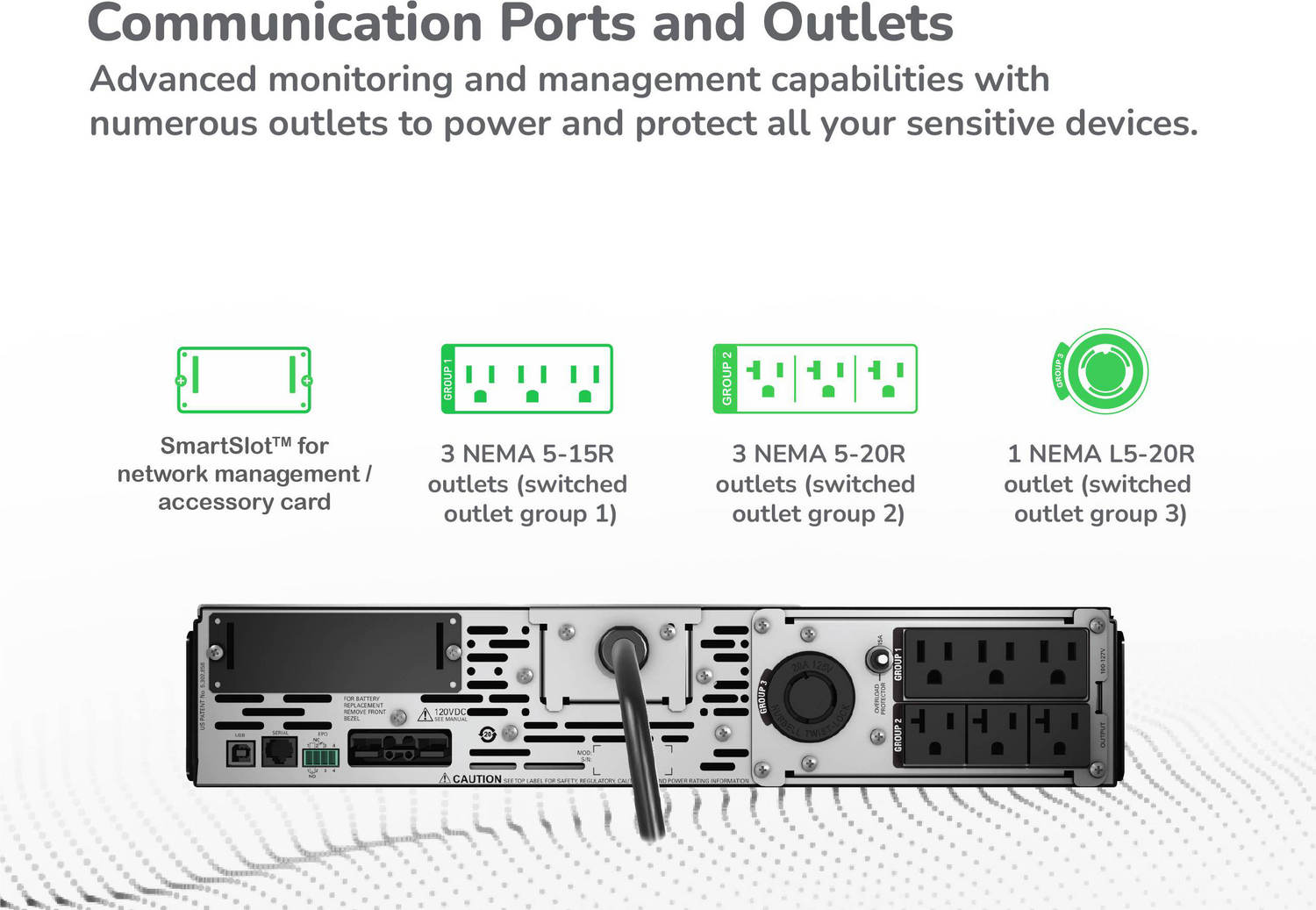

Output Connections	(3) NEMA 5-15R (3) NEMA 5-20R (1) NEMA L5-20R
Input
Nominal Input Voltage	120V
Input Frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connections	NEMA 5-20P
Cord Length	8 feet (2.44 meters)
Input voltage range for main operations	82 - 147V
Input voltage adjustable range for mains operation	75 - 154V
Transfer Time	2-4 ms
Batteries & Runtime
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time	3 hour(s)

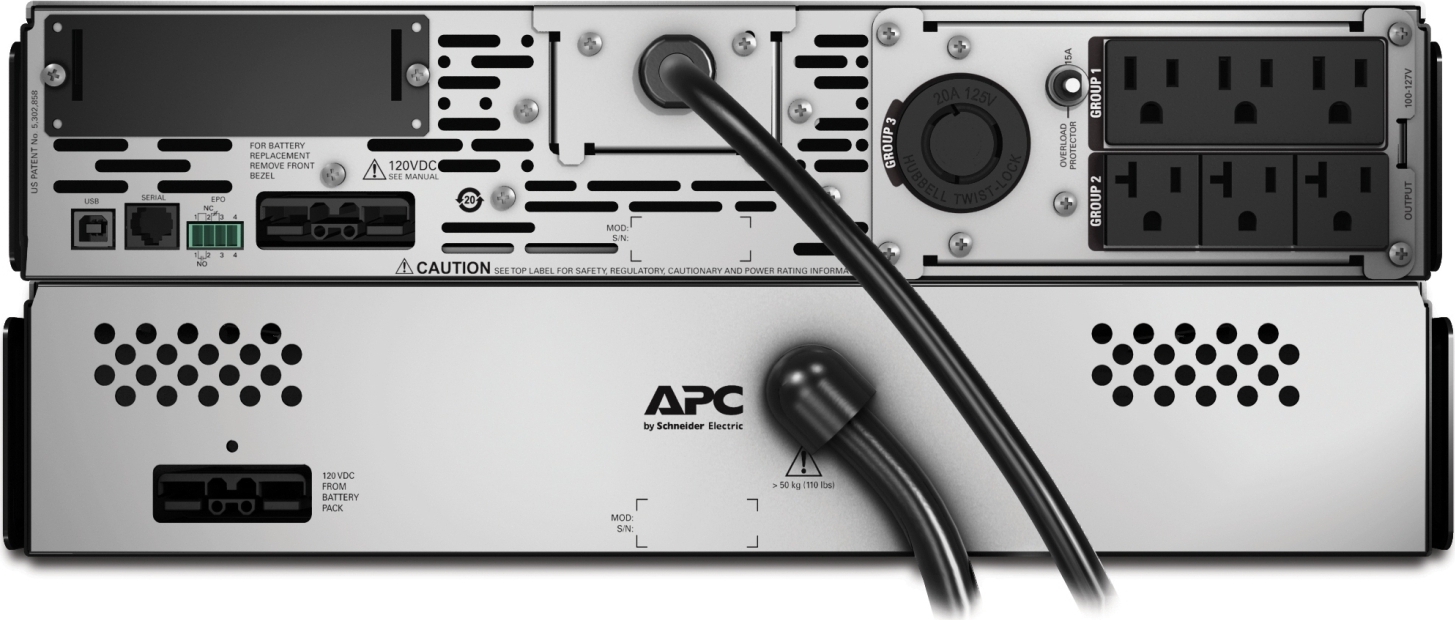

Extended Run Options	APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V
RBC™ Quantity	1
Communications & Management
Interface Port(s)	SmartSlot
Available SmartSlot™ Interface Quantity	1
Control panel	LED status display with On Line : On Battery : Replace Battery and Overload indicators,Multi-function LCD status and control console
Audible Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)	Yes
Surge Protection and Filtering
Surge Energy Rating	540 Joules
Filtering	Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height	3.36 inches (85 mm)
Maximum Width	17.00 inches (432 mm)
Maximum Depth	26.26 inches (667 mm)
Net Weight	84.60 lbs. (38.45 kg)
Shipping Weight	99.79 lbs. (45.36 kg)
Shipping Height	9.58 inches (243 mm)
Shipping Width	23.48 inches (596 mm)
Shipping Depth	34.23 inches (869 mm)
Color	Black
Units per Pallet	8.00
Rack Height	2U
Environmental
Operating Environment	32 - 104°F (0 - 40°C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0-10000 feet (0-3000 meters)
Storage Temperature	5 - 113°F (-15 - 45°C)
Storage Relative Humidity	0 - 95%
Storage Elevation	0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit	55.00 dBA
Online Thermal Dissipation	203.00 BTU/hr
Conformance
Regulatory Approvals	BSMI,CSA,EN 50091-2,EN 55022 Class A,FCC Part 15 Class A,NOM,TUV,UL 1778,VCCI Class A
Standard Warranty	3 years repair or replace (excluding battery) and 2 year for battery,optional on-site warranties available,optional extended warranties available
Equipment protection policy	Lifetime: $150,000
Environmental Compliance	RoHS 7b Exemption,REACH: Contains No SVHCs

Documentation:

Download the APC Smart-UPS XL SMX2000RMLV2U Data Sheet (PDF).
