APC Smart-UPS Li-Ion, Short Depth 1000VA, 120V with SmartConnect

APC Smart-UPS Li-Ion, Short Depth 1000VA, 120V with SmartConnect

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable

APC Products
APC Smart-UPS Li-Ion
APC Smart-UPS Li-Ion, Short Depth 1000VA, 120V with SmartConnect
#SMTL1000RM2UC
Our Price: $1,375.00

APC Smart-UPS Li-Ion, Short Depth 1000VA, 120V with SmartConnect

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Cold-start capable Provides temporary battery power when the utility power is out.
Energy meter Provides actual kilowatt hours of usage for energy conscious users.
Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency Reduces utility costs, generates less heat.

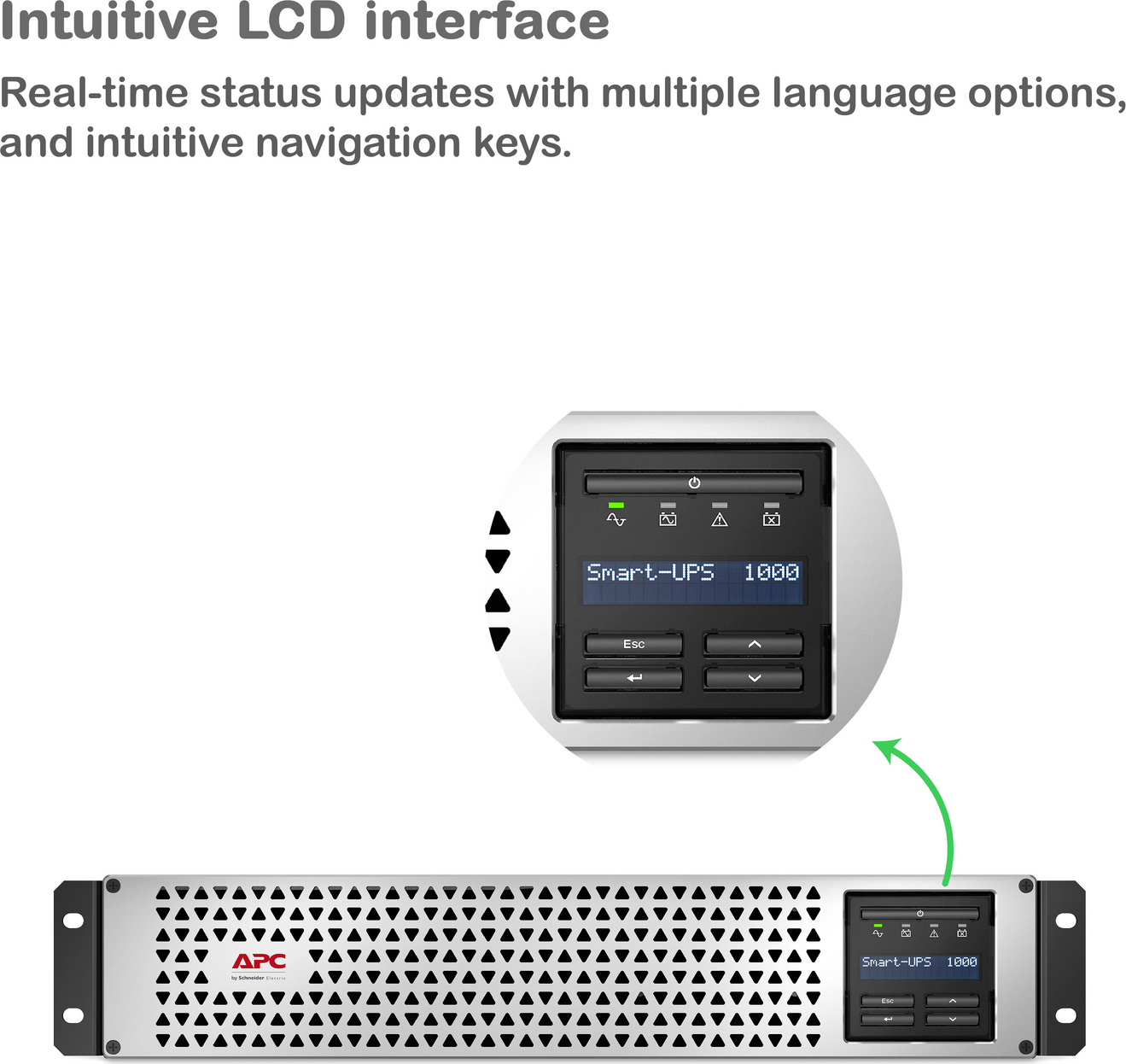

Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Lithium-ion battery Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Short-depth rack compatibility Compact design fits comfortably in short-depth rack applications.
Single switched outlet group Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot Customize UPS capabilities with management cards.
Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits:

Safety
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Marketing Features
Smarter productivity with ability to tailor to your specific application needs Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Peace of mind that comes with full equipment compatibility and reliability of a leader Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
Save time with easy and convenient remote accessibility Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Avoids costly power problems by keeping your IT equipment and data safe and available Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Serviceability
Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers Enables a quick recovery from overload events.
Adaptability
Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Availability
Disconnected battery notification Warns when a battery is not available to provide backup power.
Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.
Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.

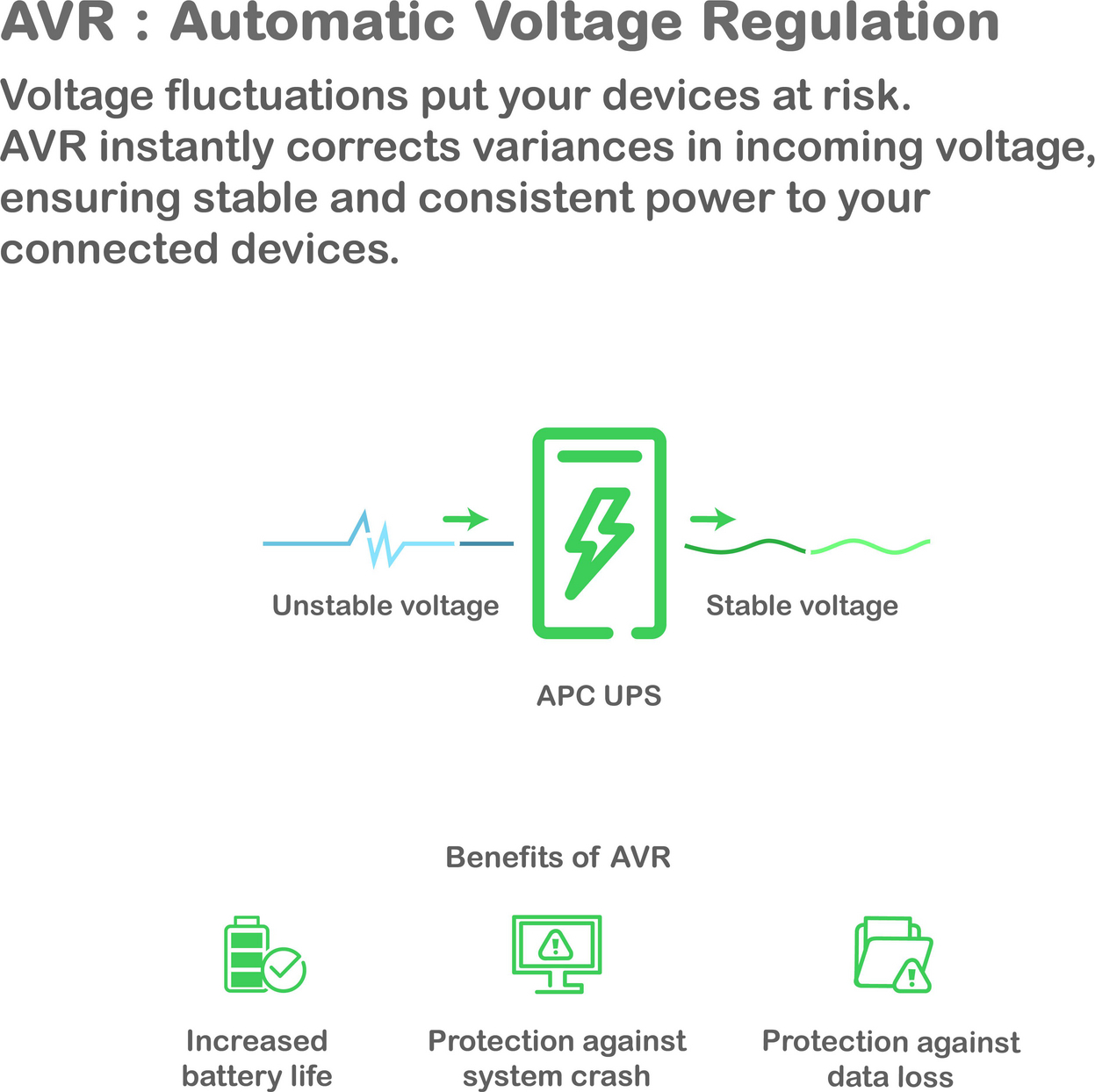

Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Manageability
Audible alarms Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
USB connectivity Provides management of the UPS via a USB port (not available on all models).
LED status indicators Quickly understand unit and power status with visual indicators.
Serial connectivity Provides management of the UPS via a serial port.
Network manageable Provides remote power management of the UPS over the network.
Disconnected battery notification Warns when a battery is not available to provide backup power.

Product Views:

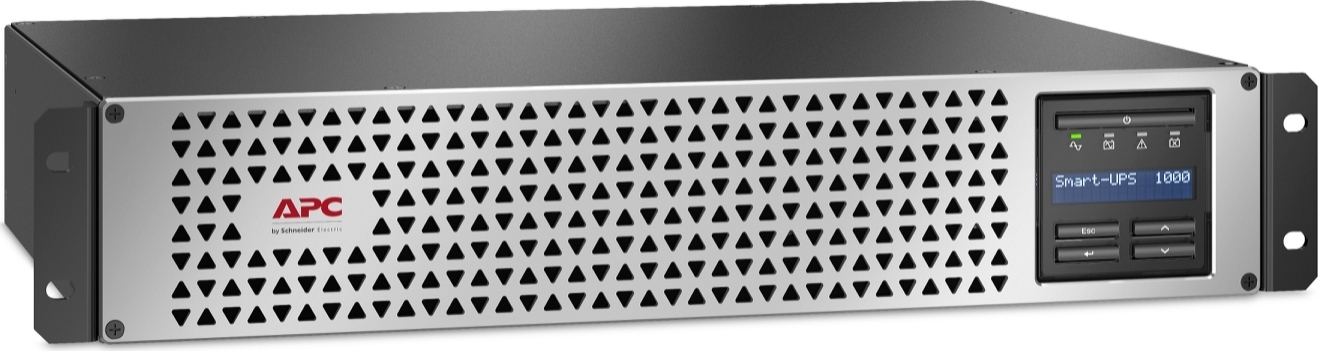

SMTL1000RM2UC Left view

Left Angle View

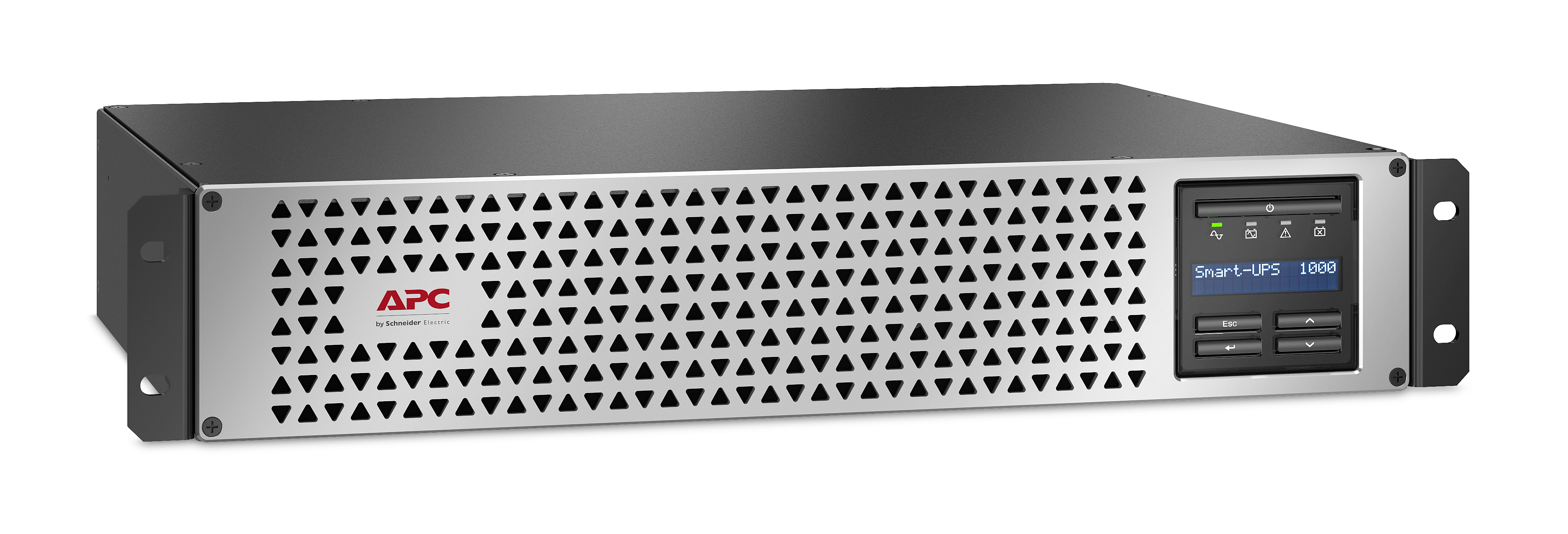

SMTL1000RM2UC Right view

Right Angle View

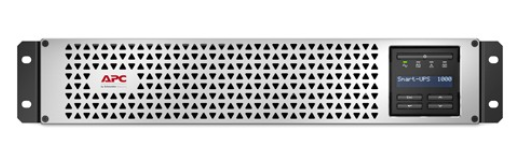

SMTL1000RM2UC Front view

Front View

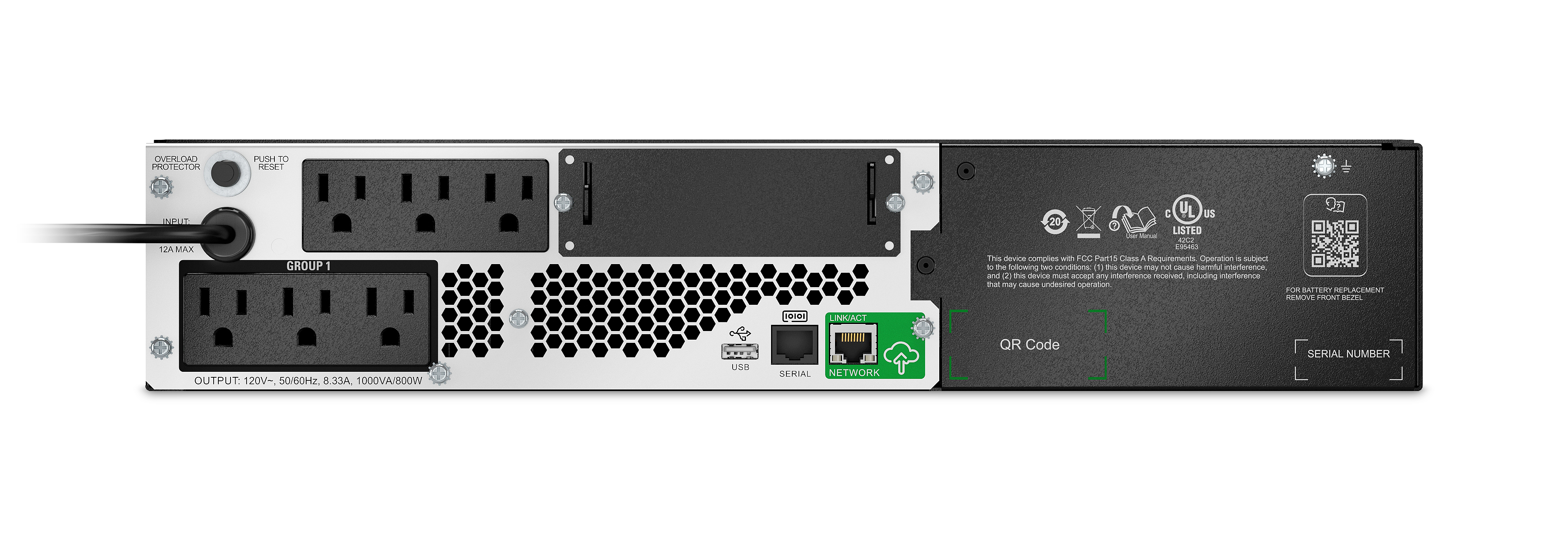

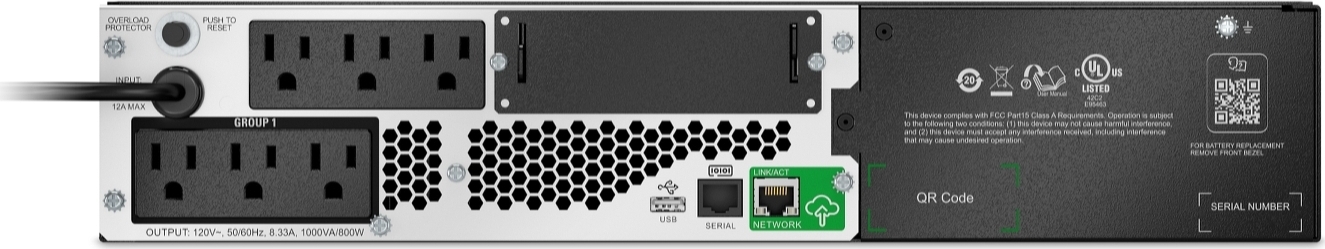

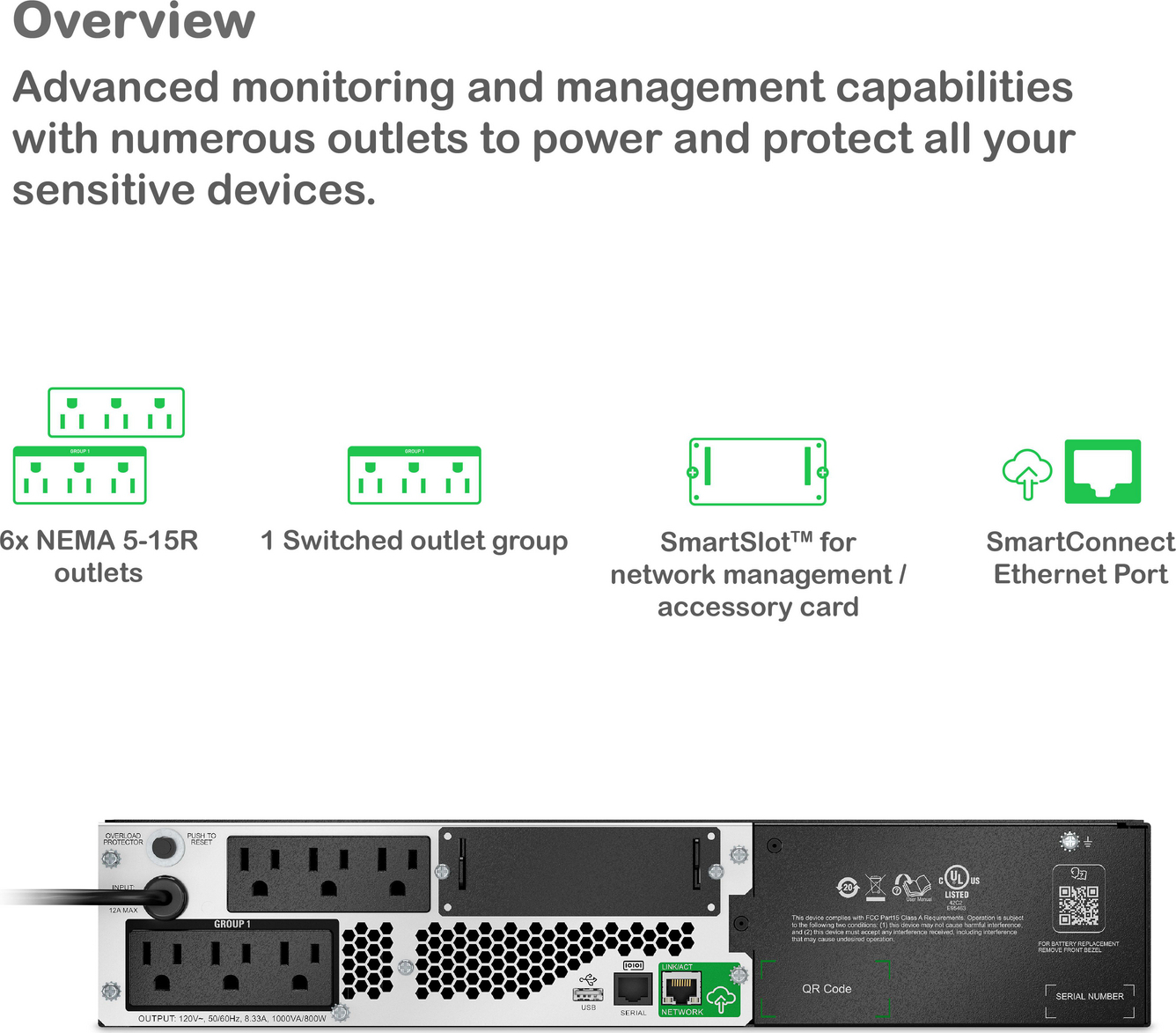

SMTL1000RM2UC Rear view

Rear View

Technical Specifications:

Output
Output Power Capacity 800Watts / 1.0kVA
Max Configurable Power (Watts) 800Watts / 1.0kVA
Nominal Output Voltage 120V
Output Voltage Distortion Less than 5%
Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Topology Line Interactive
Waveform type Sine wave
Output Connections (6) NEMA 5-15R (Battery Backup)
Transfer Time 6ms typical : 10ms maximum
Input
Nominal Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections NEMA 5-15P
Cord Length 8ft (2.44meters)
Input voltage range for main operations 82 - 144V
Input voltage adjustable range for mains operation 75 - 154V
Number of Power Cords 1
Batteries
Battery Type Li-ion
Typical recharge time 3 hour (s)
Expected Battery Life (years) 5 - 10
Battery Volt-Amp-Hour Capacity 288
Communications & Management
Interface Port(s) RJ-45 Serial, SmartSlot, USB
Control panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Available SmartSlot™ Interface Quantity 1
Surge Protection and Filtering
Surge energy rating 680Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 3.4inches (86MM, 8.6CM)
Maximum Width 17.25inches (438MM, 43.8CM)
Maximum Depth 12.52inches (318MM, 31.8CM)
Rack Height 2U
Net Weight 36.0lbs. (16.33KG)
Shipping Weight 41.0lbs. (18.6KG)
Shipping Height 9.0inches (229MM, 22.9CM)
Shipping Width 23.0inches (584MM, 58.4CM)
Shipping Depth 18.6inches (472MM, 47.2CM)
Color Black
Units per Pallet 16.0
Environmental
Operating Temperature 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity 0 - 95 (non-condensing) %
Operating Elevation 0-10000ft (0-3000meters)
Storage Temperature -40 - 35 °C
Storage Relative Humidity 0 - 95 (non-condensing) %
Storage Elevation 0-25000ft (0-7500meters)
Audible noise at 1 meter from surface of unit 41.0dBA
Online thermal dissipation 70.0BTU/hr
Conformance
Approvals CSA C22.2 NO. 107.3, FCC Part 15 Class A, NOM, UL 1778, UL 1973
Equipment protection policy Lifetime : $150000
Standard Warranty 5 year repair or replace
Sustainable Offer Status
RoHS Compliant
REACH REACH: Contains No SVHCs
Battery Directive Compliant

SKU technical specifications

  SCL500RM1UC
*SCL500RM1UCNC
SMTL750RM2UC SMTL1000RM2UC SMTL1500RM3UC
Topology Line Interactive
Output
Output power capacity 400 Watts / 500 VA 600 Watts / 750 VA 800 Watts / 1000 VA 1350 Watts / 1500 VA
Nominal output voltage 120V
Output voltage distortion Less than 5% at full load
Output frequency (sync to mains) 50/60 Hz +/- 3 Hz (auto sensing)
Waveform type Sine Wave Pure Sine Wave
Output connections (4) NEMA 5-15R (6) NEMA 5-15R
Switched outlet group Yes/One
Efficiency at full load >96%
Input
Nominal input voltage 120V
Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input connections NEMA 5-15P
Input voltage range for main operations 92 – 139Vac 82 – 144Vac
Batteries
Battery type Lithium-ion (LiFePo4)
Communications and management
Interface port(s) USB Type A, APC SmartConnect (RJ45) – only on the “C” suffix model Serial (RJ45), SmartSlot, USB, APC SmartConnect (RJ45)
Available SmartSlot™ interface quantity 0,
*embedded Network Management Card in “NC” suffix model
1
Control panel LED display Multi-function LCD status and control console
Audible alarms Yes
Physical
Net HxWxD (in inches) 1.75 x 17 x 9.14 3.39 x 17.25 x 12.5 3.39 x 17.25 x 12.5 5.14 x 17.25 x 12
Rack height 1U 2U 2U 3U
Net weight 9.2 lbs 34 lbs 36 lbs 43 lbs
Shipping weight 14.2 lbs 39 lbs 41 lbs 50 lbs
Shipping HxWxD (in inches) 6.6 X 23.2 X 13.3 for both 9 x 23 x 18.6 9 x 23 x 18.6 11 x 17.64 x 23
Color Black [Silver front bezel]
Environmental
Operating environment 32 – 104 °F (0 – 40 °C)
Operating relative humidity 0 – 95%
Operating elevation 0-10000 feet (0-3000 meters)
Storage temperature -15 to 45 °C (-30 to 70°C without batteries)
Storage relative humidity 0 – 95%
Storage elevation 0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit 45.0dBA
Conformance
Regulatory approvals UL 1778, UL 1973, CSA, NOM
Standard warranty 5-Year UPS and batteries

Documentation:

Download the APC Smart-UPS Lithium-ion Product Overview Brochure (PDF).
