APC Smart-UPS 1500VA LCD 120V with SmartConnect

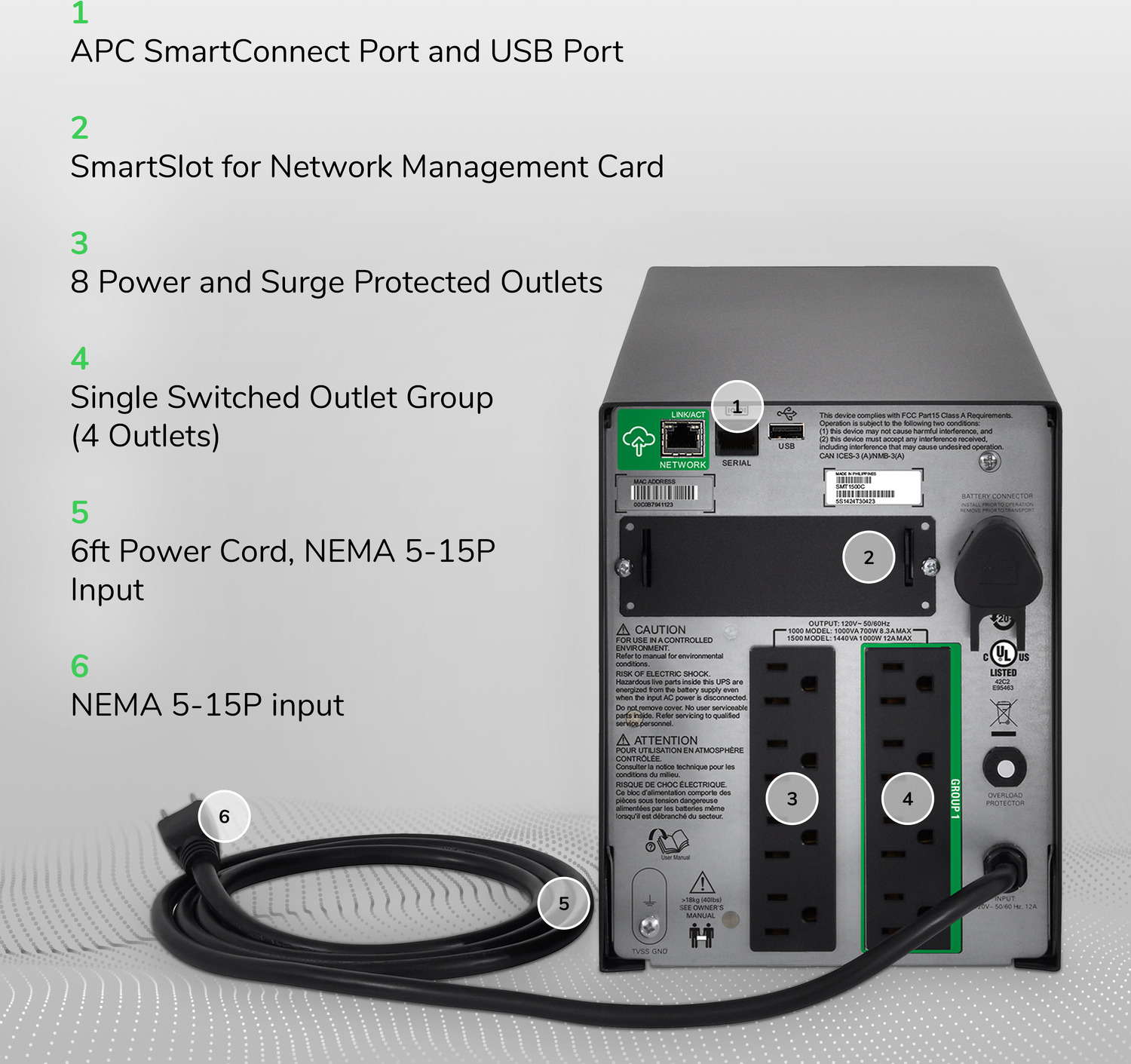

APC Smart-UPS, 1.0kWatts / 1.44kVA, Input 120V / Output 120V, Interface Port DB-9 RS-232, SmartSlot, USB
Includes: Smart UPS signalling RS-232 cable, USB cable
Looking for Better Pricing? Please Contact Us for help!
Our Price: $1,045.00
More pricing below, click here!
Over 20 million units sold - the UPS you can trust

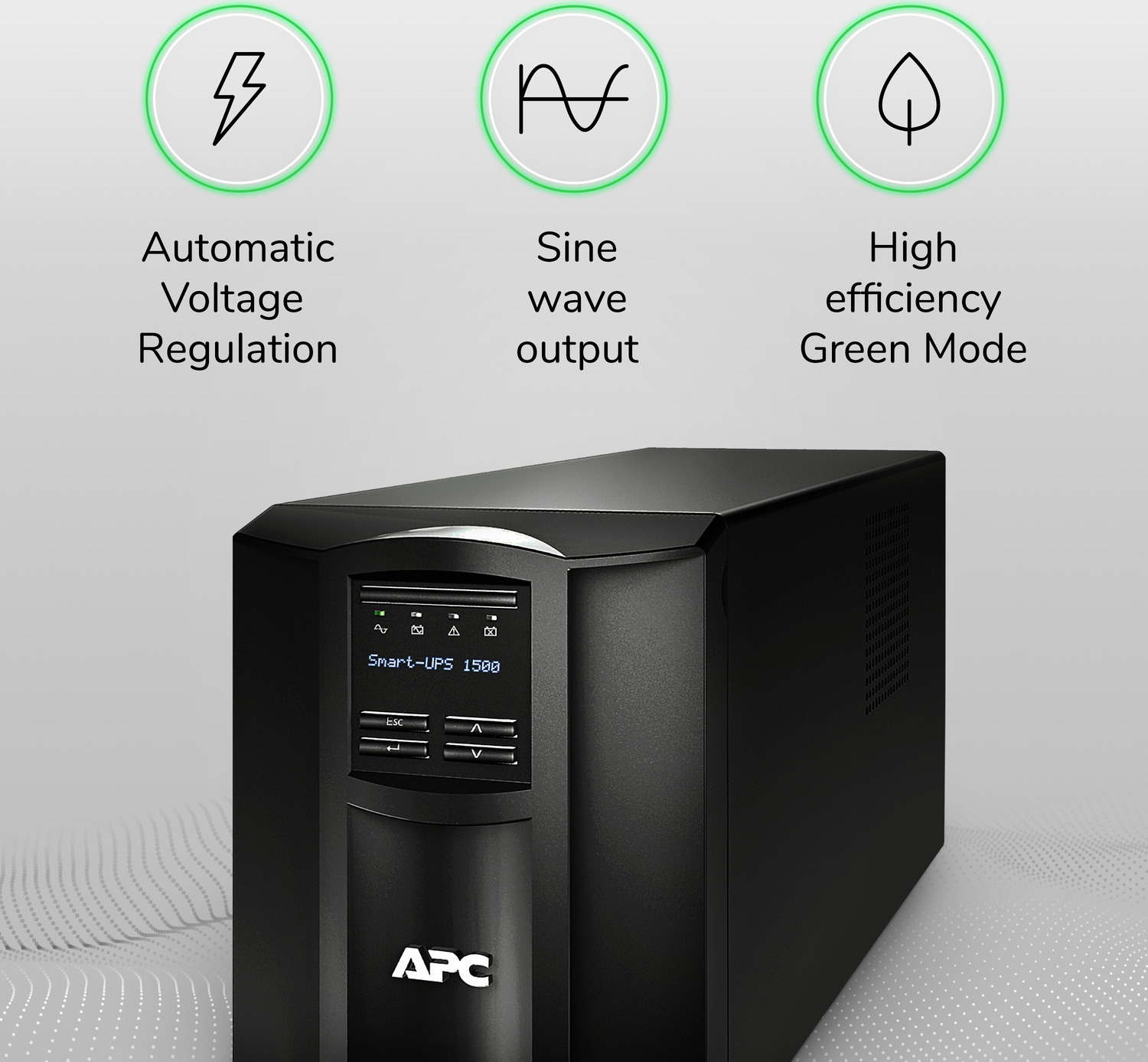

APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
Features & Benefits:
| Availability | |
| Power conditioning | Protects connected loads from surges, spikes, lightning, and other power disturbances |

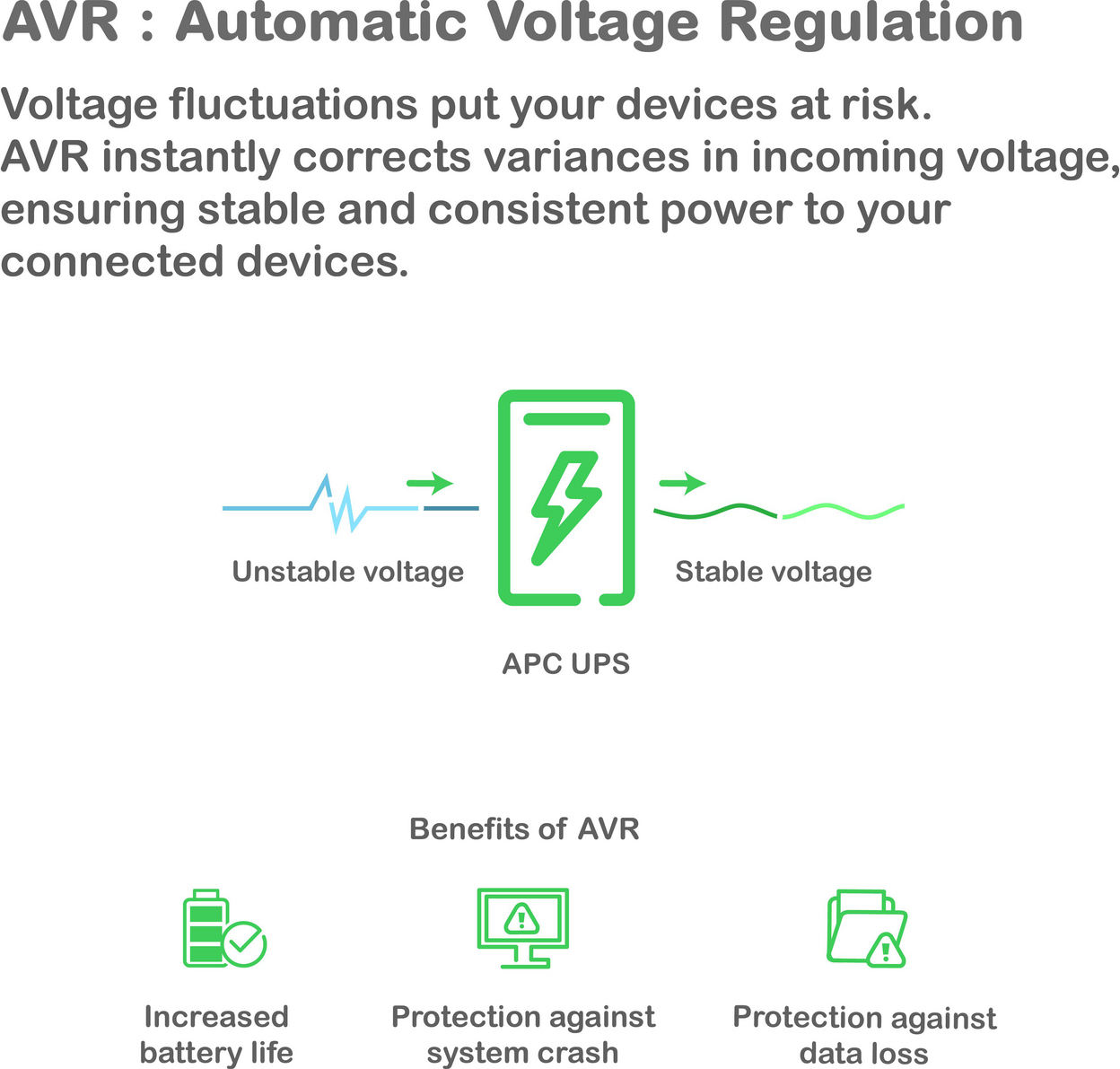

| Boost and Trim Automatic Voltage Regulation (AVR) | Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models) |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Automatic self-test | Periodic battery self-test ensures early detection of a battery that needs to be replaced. |
| Automatic restart of loads after UPS shutdown | Automatically starts up the connected equipment upon the return of utility power. |
| Temperature-compensated battery charging | Prolongs battery life by regulating the charge voltage according to battery temperature. |
| Manageability | |
| Network manageable | Monitor and control the UPS remotely via included PowerChute software or APC Network Management Card (included in all models above 3kVA). |
| Audible alarms | Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition. |
| LED status indicators | Quickly understand unit and power status with visual indicators. |
| Serial Connectivity | Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks. |
| USB connectivity | Provides management of the UPS via a USB port (not available on all models). |
| SmartSlot | Customize UPS capabilities with management cards. |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Serviceability | |
| Battery failure notification | Provides early-warning fault analysis on batteries enabling timely preventive maintenance |
| User-replaceable batteries | Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) |
| Hot-swappable batteries | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced |
| Predictive failure notification | Provides early-warning fault analysis ensuring proactive component replacement. |
| Resettable circuit breakers | Enables quick recovery from UPS overload events. |
| Adaptability | |
| Adjustable voltage-transfer points | Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. |
| Adjustable voltage sensitivity | Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. |
| Safety | |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals. |
| Marketing Features | |
| Peace of mind that comes with full equipment compatibility and reliability of a leader | Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards. |
| Smarter productivity with ability to tailor to your specific application needs | Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications. |

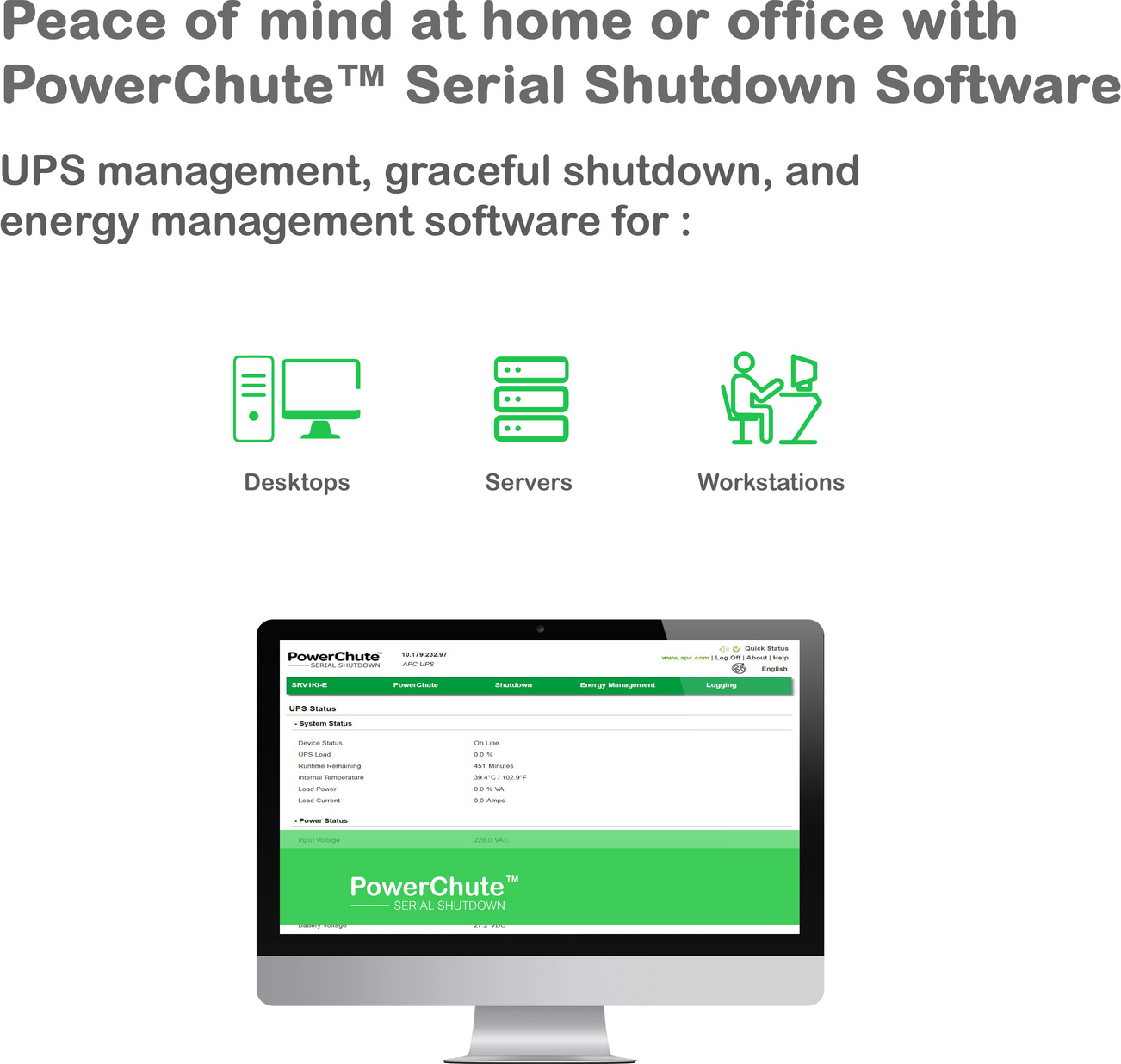

| Save time with easy and convenient remote accessibility | Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities. |
| Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management | Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold. |
| Avoids costly power problems by keeping your IT equipment and data safe and available | Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems |
Technical Specifications:
| Output | |
| Max Configurable Power (Watts) | 1.0kWatts / 1.44kVA |
| Nominal Output Voltage | 110, 127 |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz |
| Topology | Line Interactive |
| Waveform Type | Sine wave |
| Transfer Time | 6ms typical : 10ms maximum |
| Input | |
| Nominal Input Voltage | 120V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Cord Length | 6 feet (1.83 meters) |
| Input voltage range for main operations | 82 - 144V |
| Input voltage adjustable range for mains operation | 75 - 154V |
| Other Input Voltages | 110, 127 |
| Batteries & Runtime | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time | 3 hour(s) |
| Replacement battery cartridge | RBC7 |
| Expected Battery Life (years) | 3 - 5 |
| RBC™ Quantity | 1 |

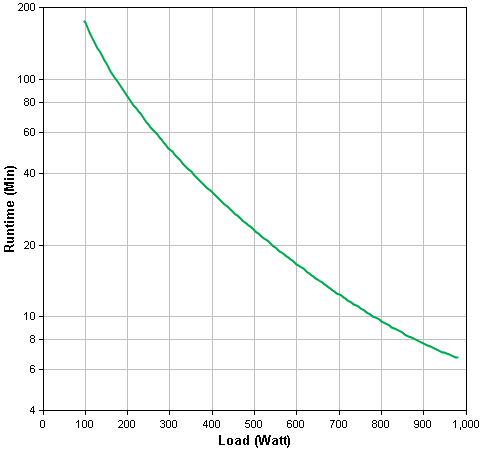

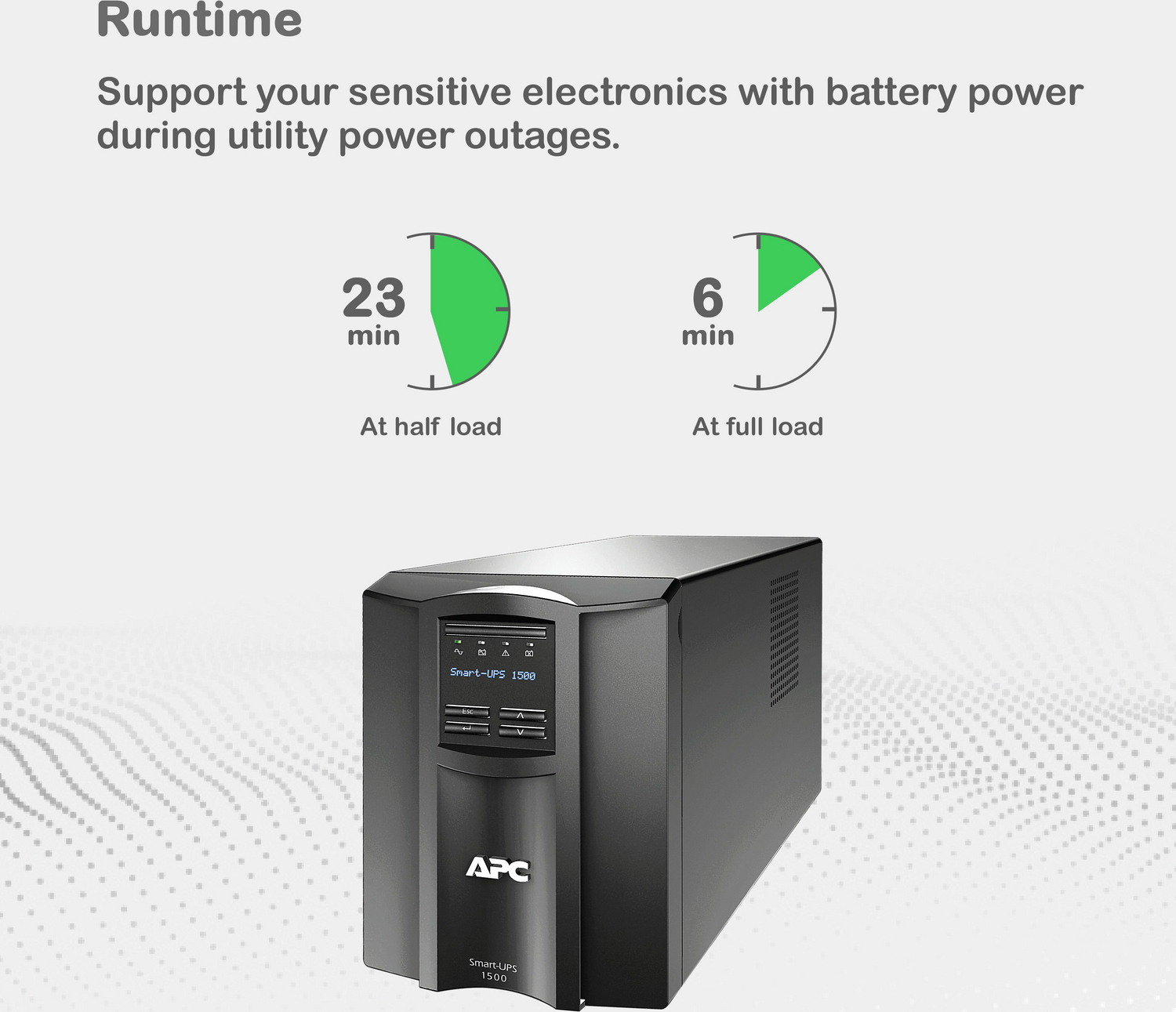

| Runtime Graph |
Hover over the line on the graph above to view the runtime at any desired load Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Energy Use/Efficiency | |

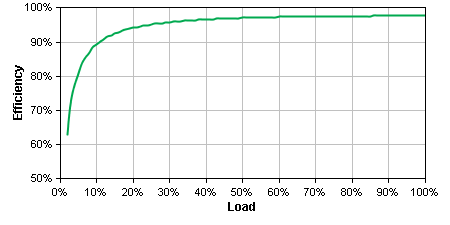

Hover over the line on the graph above to view the efficiency at any desired load Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
|
| Communications & Management | |
| Interface Port(s) | SmartSlot, USB |

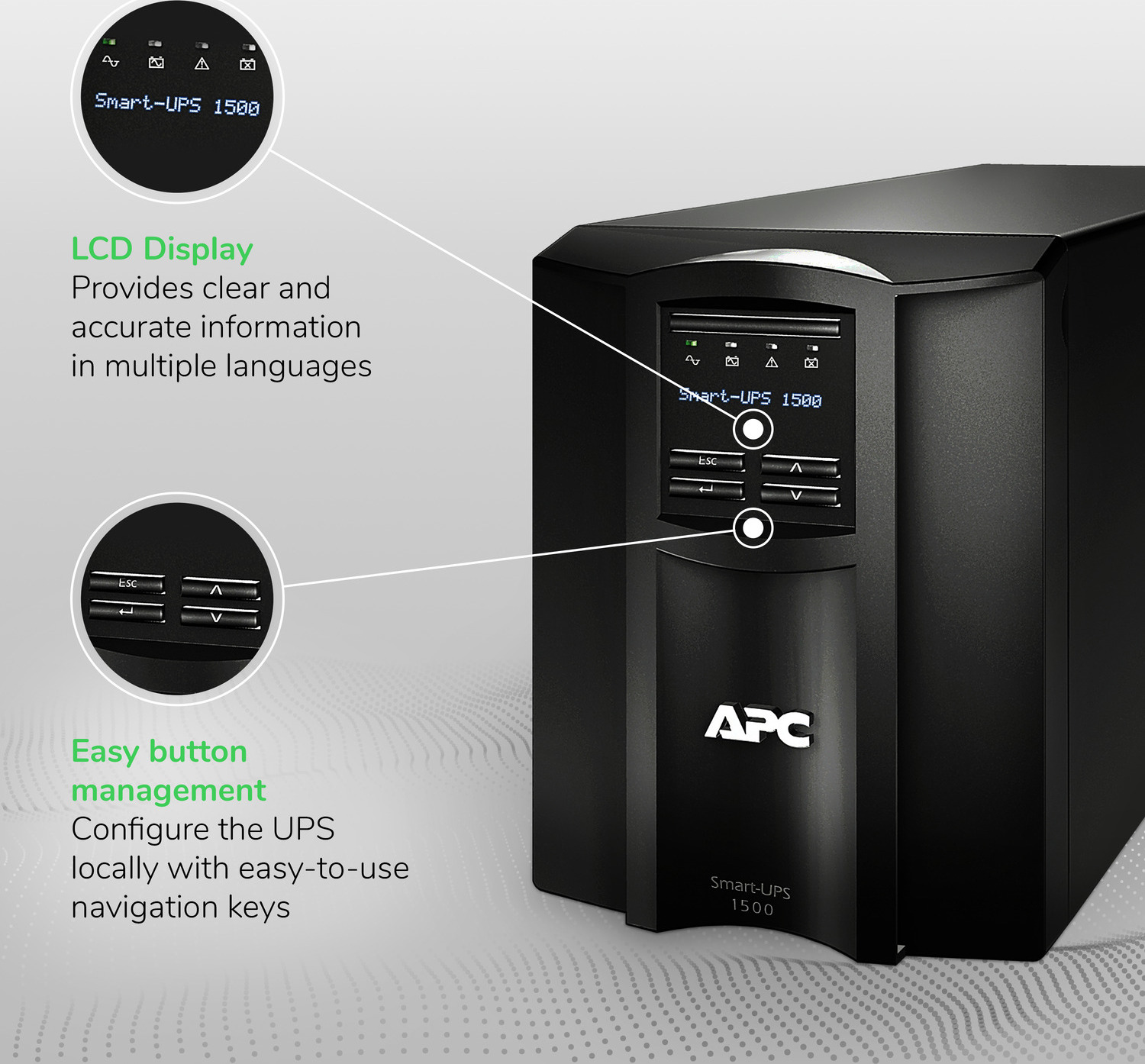

| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | -- |
| Available SmartSlot™ Interface Quantity | 1 |
| Surge Protection and Filtering | |
| Surge Energy Rating | 680 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 8.62 inches (219MM, 21.9CM) |
| Maximum Width | 6.73 inches (171MM, 17.1CM) |
| Maximum Depth | 17.28 inches (439MM, 43.9CM) |
| Net Weight | 54.23 lbs. (24.6KG) |
| Shipping Weight | 59.92 lbs. (27.18KG) |
| Shipping Height | 12.99 inches (330MM, 33.0CM) |
| Shipping Width | 12.99 inches (330MM, 33.0CM) |
| Shipping Depth | 23.23 inches (590MM, 59.0CM) |
| Color | Black |
| Units per Pallet | 12.00 |
| Environmental | |
| Operating Environment | 32 - 104°F (0 - 40°C) |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 5 - 113°F (-15 - 45°C) |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Audible noise at 1 meter from surface of unit | 45.00 dBA |
| Online Thermal Dissipation | 225.00 BTU/hr |
| Conformance | |
| Regulatory Approvals | CSA, CSA C22.2 No. 107.1, FCC Part 15 Class A, ICES-003, UL 1778 |
| Standard Warranty | 3 years repair or replace (excluding battery) and 2 year for battery |
| Equipment protection policy | Lifetime: $150,000 |
| Sustainable Offer Status | |
| RoHS | Compliant |
| REACH | REACH: Contains SVHCs |
| Proposition 65 Warning | Available in Documentation tab |
