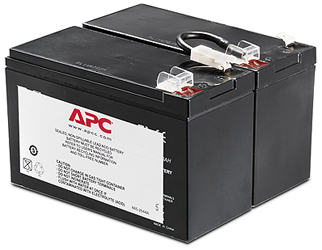

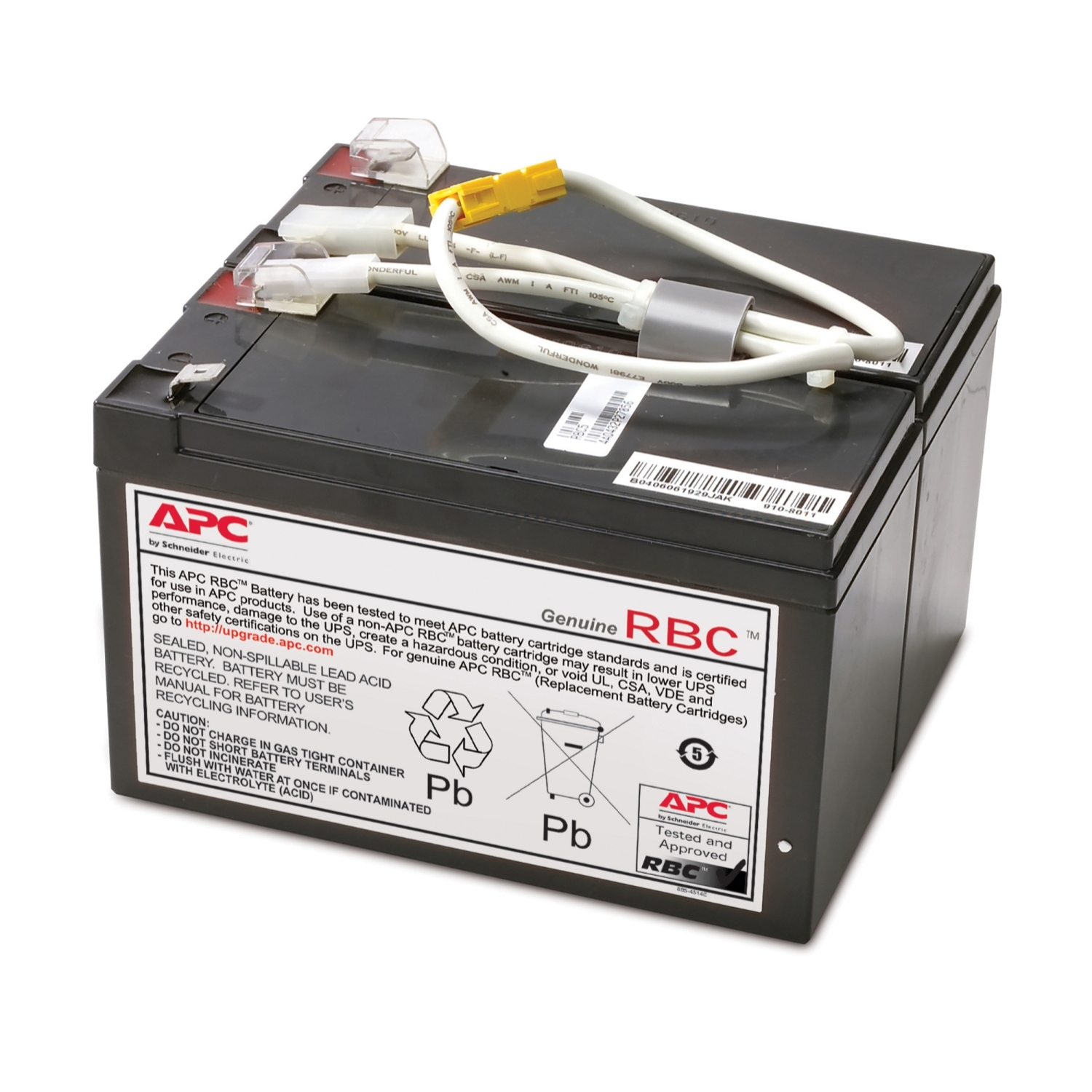

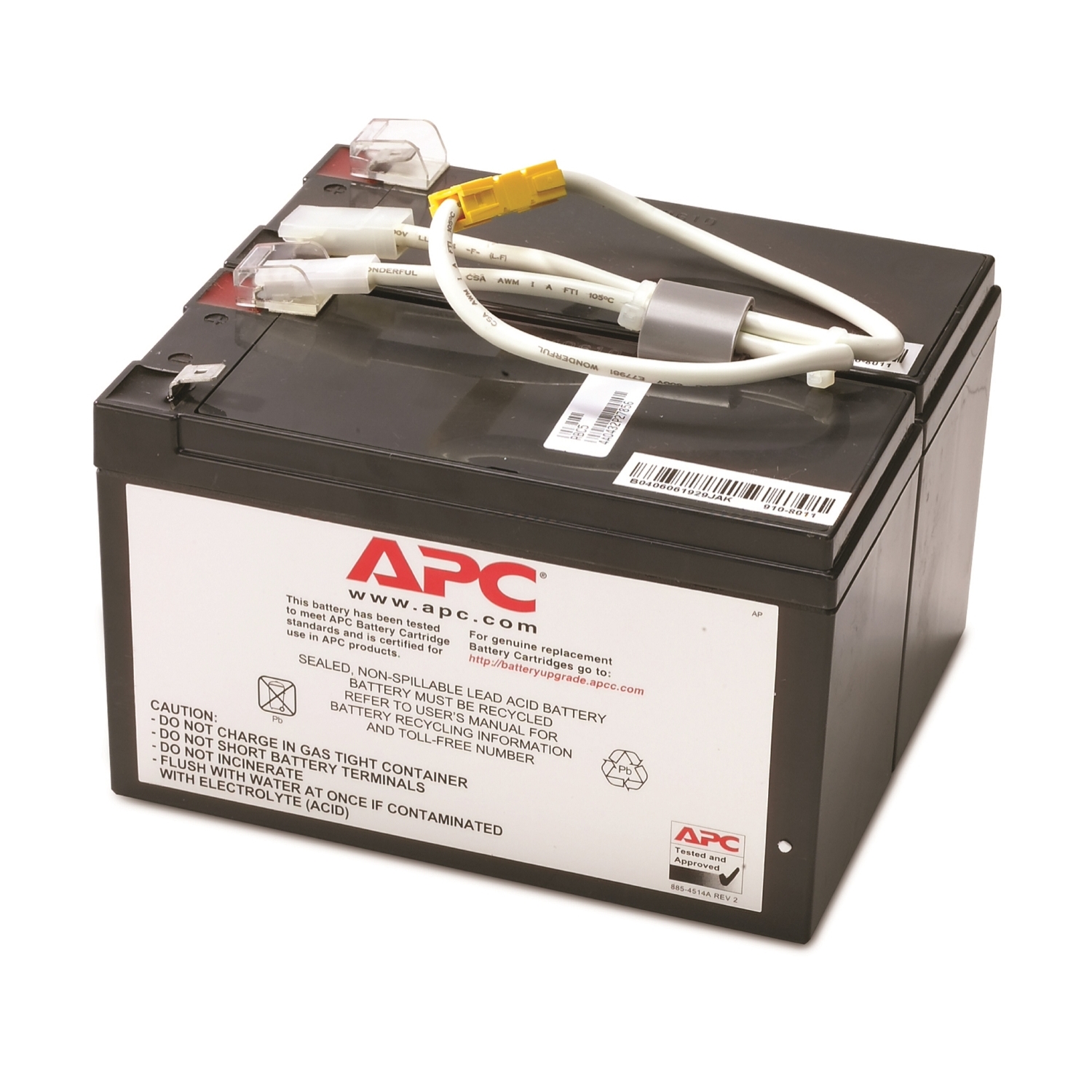

APC Replacement Battery Cartridge #109
Best Value Battery Replacements

APC Replacement Battery Cartridge #109

Looking for Better Pricing? Please Contact Us for help!

APC Products
APC Replacement Battery Cartridges
APC Replacement Battery Cartridge #109
#APCRBC109
Get a Quote!

RoHSModels Supported: BX1300LCD, BX1500LCD

Includes: All required connectors, Battery recycling guide, Installation guide, Reusable packaging

Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Technical Specifications:

Batteries & Runtime
Battery Volt-Amp-Hour Capacity 9
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Battery mounting Enclosed battery cartridge
Expected Battery Life (years) 3 - 5
RBC™ Quantity 1
Battery blocks per string 2
Physical
Net Weight 12.28 lbs. (5.58 kg)
Maximum Height 4.10 inches (104 mm)
Maximum Width 5.95 inches (151 mm)
Maximum Depth 5.18 inches (132 mm)
Shipping Weight 13.50 lbs. (6.14 kg)
Shipping Height 12.00 inches (305 mm)
Shipping Width 9.00 inches (229 mm)
Shipping Depth 4.00 inches (102 mm)
Color Charcoal
Environmental
Operating Environment 32 - 104°F (0 - 40°C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 32 - 104°F (0 - 40°C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-10000 feet (0-3000 meters)
Conformance
Standard Warranty 1 years repair or replace
Environmental Compliance RoHS
