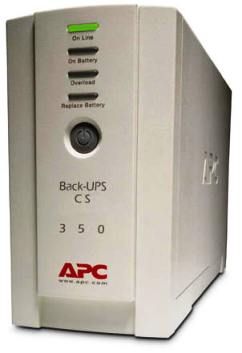

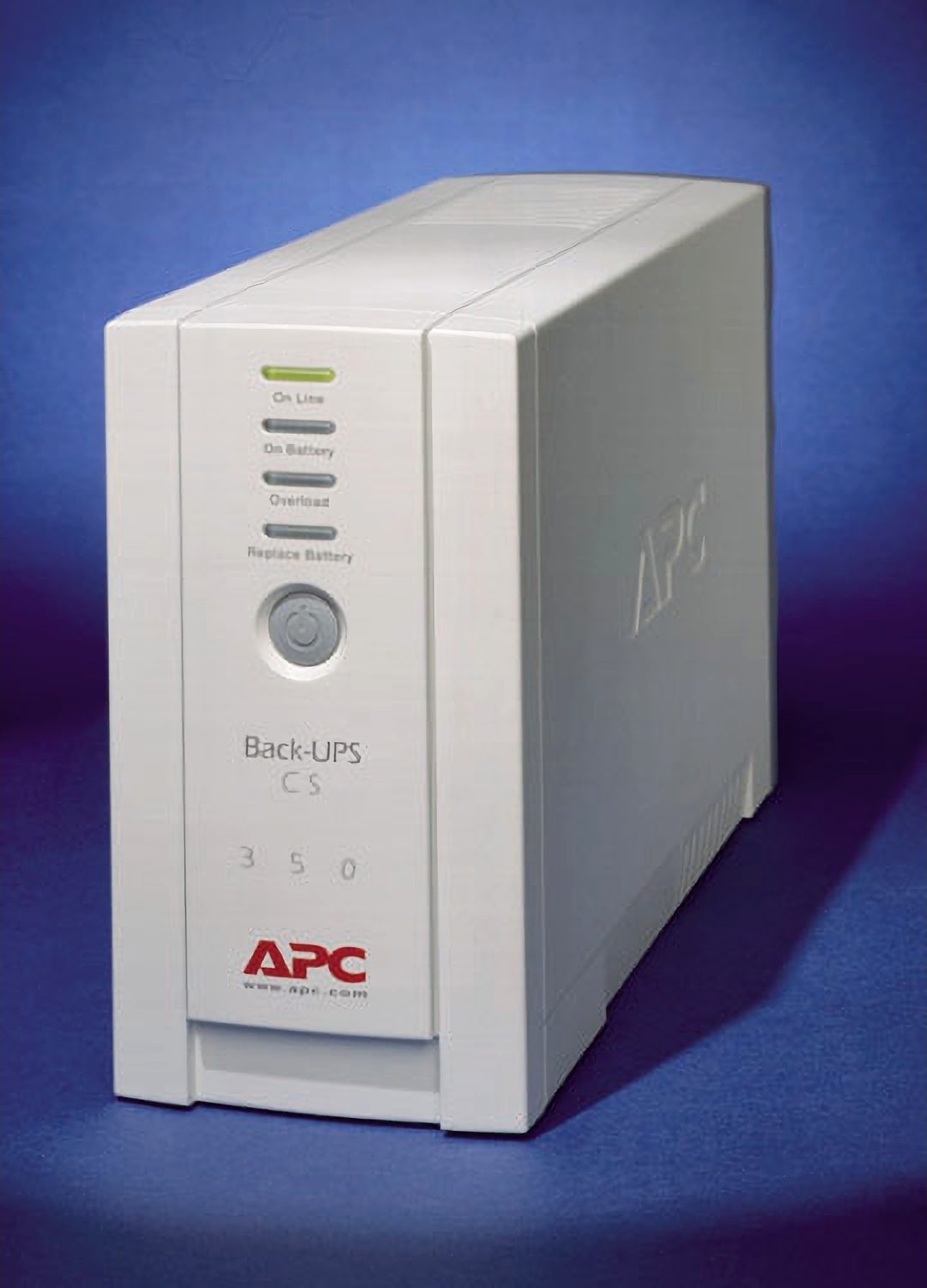

APC Back-UPS CS 350

APC Back-UPS CS, 350VA/210W, Input 120V/Output 120V, Interface Port DB-9 RS-232, USB

Includes: CD with software, Cord Management Straps, USB cable, User Manual

BE350R Features:

• Serial Connectivity
• USB connectivity

The re-invention of the most relied upon desktop UPS in history: the Back-UPS!

The Back-UPS CS offers our best value for protecting your business and office computer systems. It provides battery backup power that allows you to work through short and medium length power outages. It also safeguards your equipment from damaging surges and spikes that travel along your utility and phone lines. Award-winning shutdown software automatically powers down your computer system in the event of an extended power outage. Additional features like audible alarms, LED status indicators, user replaceable battery, push-button circuit breakers and transformer-block spaced outlets make the Back-UPS CS the perfect unit to protect your business' productivity from the constant threat of power outages and lost data.

Features and Benefits:

Runtime Chart:

Technical Specifications:

Output

Output Power Capacity

210 Watts / 350 VA

Max Configurable Power

210 Watts / 350 VA

Nominal Output Voltage

120V

Waveform Type

Stepped approximation to a sinewave

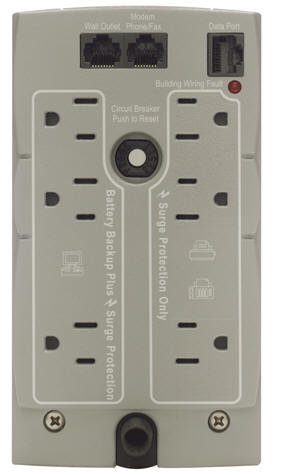

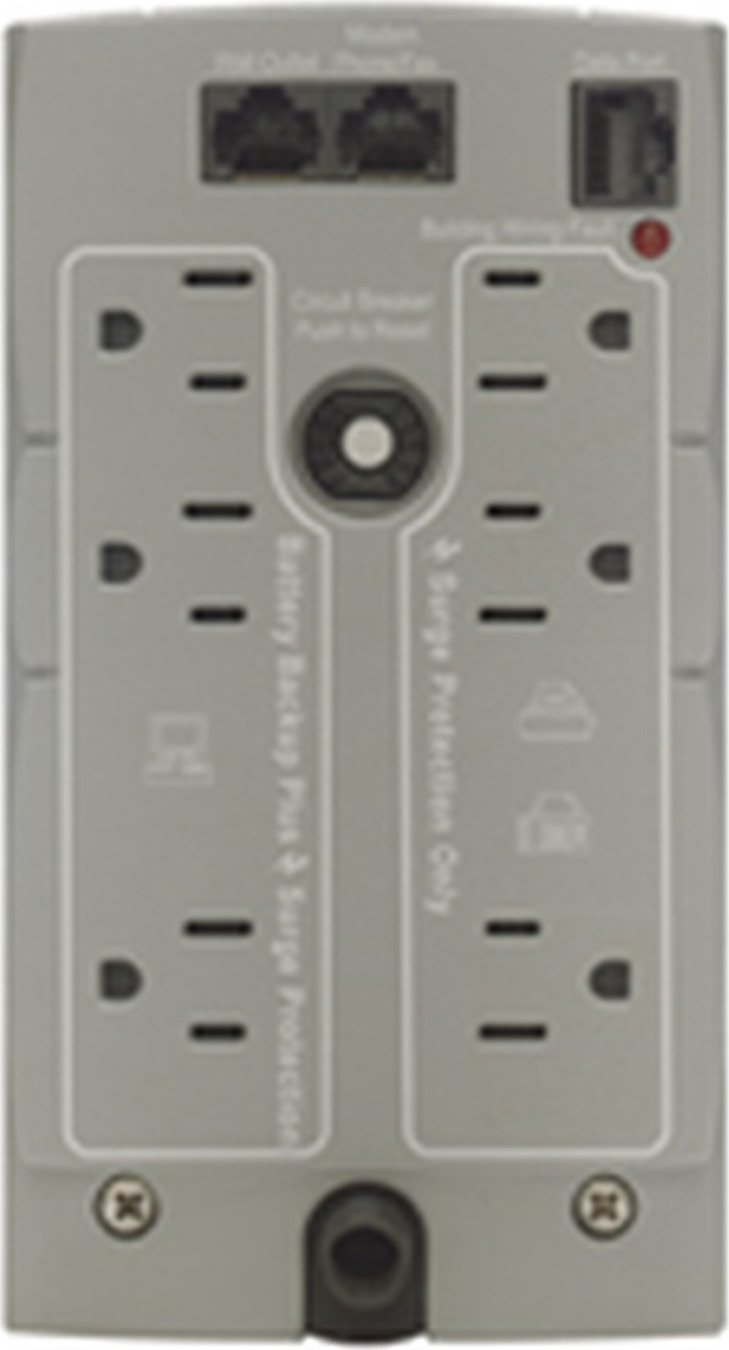

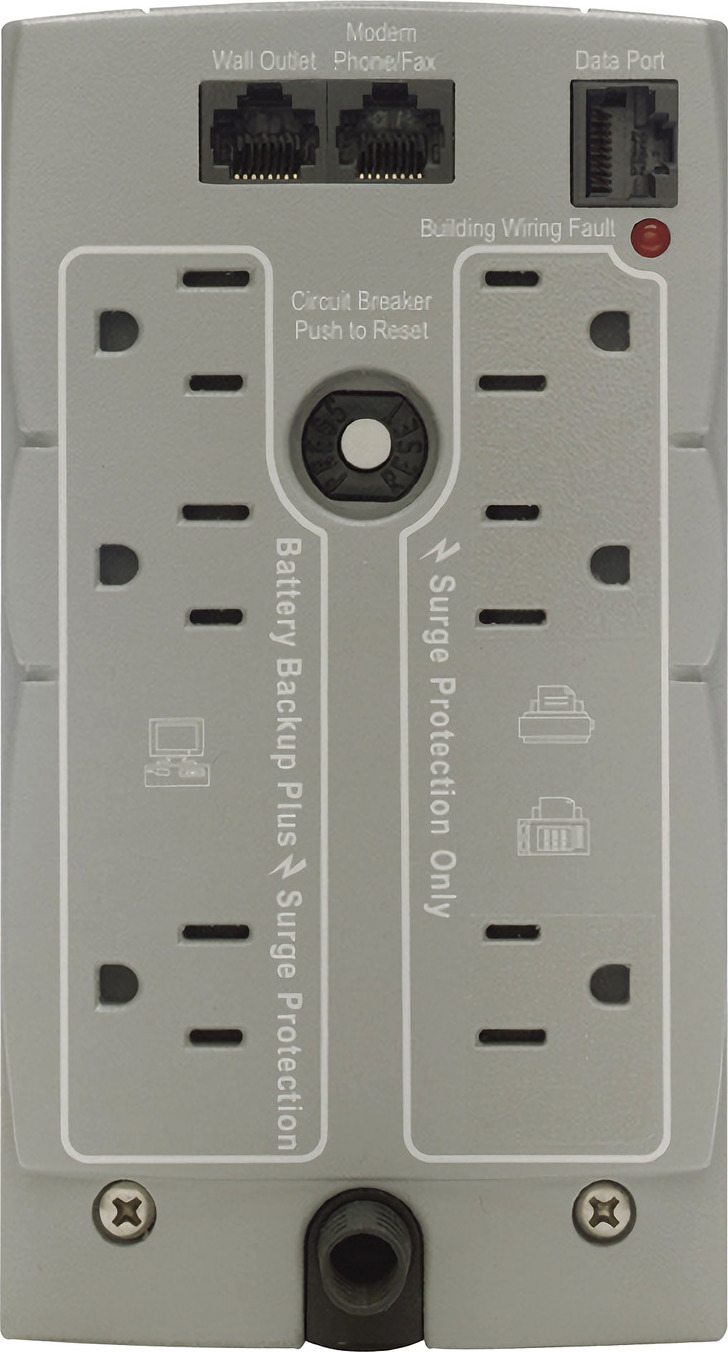

Output Connections

(3) NEMA 5-15R (Battery Backup)
(3) NEMA 5-15R (Surge Protection)

Input

Nominal Input Voltage

120V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

NEMA 5-15P

Cord Length

6 feet (1.83 meters)

Input voltage range for main operations

98 - 140V

Batteries & Runtime

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

8 hour(s)

Replacement battery cartridge

RBC2

RBC™ Quantity

1

Typical Backup Time
at Half Load

18.1 minutes (105 Watts)

Typical Backup Time
at Full Load

4.7 minutes (210 Watts)

Runtime Chart

Back-UPS CS

Communications & Management

Interface Port(s)

DB-9 RS-232,USB

Control panel

LED status display with On Line : On Battery : Replace Battery and Overload indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

1020 Joules

Filtering

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Dataline protection

RJ-11 Modem/Fax/DSL protection (two wire single line)

Physical

Maximum Height

6.50 inches (165 mm)

Maximum Width

3.60 inches (91 mm)

Maximum depth

11.20 inches (284 mm)

Net Weight

12.50 lbs. (5.68 kg)

Shipping Weight

14.00 lbs. (6.36 kg)

Shipping Height

10.35 inches (263 mm)

Shipping Width

6.89 inches (175 mm)

Shipping Depth

14.06 inches (357 mm)

Master Carton Units

2.00

Master Carton Weight

29.00 lbs.

Color

Beige

SCC Codes

1073130401629 5

Units per Pallet

80.00

Environmental

Operating Environment

32 - 104 °F (0 - 40 °C)

Operating Relative Humidity

0 - 95%

Operating Elevation

0-10000 feet (0-3000 meters)

Storage Temperature

5 - 113 °F (-15 - 45 °C)

Storage Relative Humidity

0 - 95%

Storage Elevation

0-50000 feet (0-15000 meters)

Audible noise at 1 meter from surface of unit

45 dBA

Online Thermal Dissipation

20.00 BTU/hr

Conformance

Regulatory Approvals

FCC Part 68,TUV

Standard Warranty

3 years repair or replace

Equipment protection policy

Lifetime : $100000



APC Documentation
	Download the APC BK350 Data Sheet (PDF).
