APC Smart-UPS XL Modular 3000VA 120V Rackmount/Tower

APC Smart-UPS XL, 3000VA/2850W, Input 120V/Output 120V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, USB, Extended runtime model, Rack Height 2 U

Includes: CD with software, Installation Guide, Rack Mounting Brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual, Web/SNMP Management Card

Over 10 million currently installed - the one you can trust

APC Smart-UPS® XL protects your data by supplying reliable, network-grade power and scalable runtime in tower or rack-mount form factors. Customers can configure up to 10 matching battery packs for runtimes exceeding 24 hours, if needed. Typical applications requiring longer runtime include critical application servers and storage, IP and PBX based voice networks, and enterprise network switches and hubs. Included PowerChute® management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance performance.. Engineered with the same standards as the award-winning Smart-UPS, with over 10 million installed, the Smart-UPS XL adds the advantage of unsurpassed runtime capability for those business applications that demand continual uptime.

Features and Benefits:

Technical Specifications:

Output

Output Power Capacity

2850 Watts / 3000 VA

Max Configurable Power

2850 Watts / 3000 VA

Nominal Output Voltage

120V

Efficiency at Full Load

95.00%

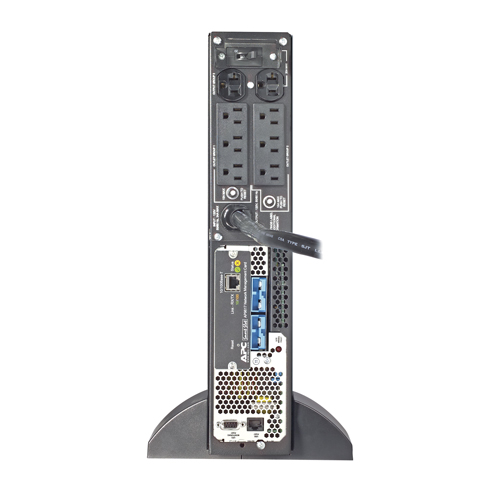

Output Connections

(6) NEMA 5-15R
(2) NEMA 5-20R

Input

Bypass

Internal Bypass (Automatic and Manual)

Nominal Input Voltage

120V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

NEMA L5-30P

Cord Length

10 feet (3.05 meters)

Input voltage range for main operations

82 - 147V

Input voltage adjustable range for mains operation

75 - 154V

Batteries & Runtime

Battery Type

VRLA

Typical recharge time

3 hour(s)

Replacement battery cartridge

RBC43

RBC™ Quantity

1

Typical Backup Time
at Half Load

11.9 minutes (1425 Watts)

Typical Backup Time
at Full Load

3.5 minutes (2850 Watts)

Runtime Chart

Smart-UPS XL

Extended Run Options

APC Smart-UPS XL Modular 3000VA 120V Rackmount/Tower

Communications & Management

Interface Port(s)

DB-9 RS-232,RJ-45 10/100 Base-T,USB

Pre-Installed SmartSlot™ Cards

AP9619

Control panel

LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Optional

Surge Protection and Filtering

Surge energy rating

540 Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

3.40 inches (86 mm)

Maximum Width

17.00 inches (432 mm)

Maximum depth

26.70 inches (678 mm)

Rack Height

2U

Net Weight

103.00 lbs. (46.82 kg)

Shipping Weight

125.00 lbs. (56.82 kg)

Shipping Height

9.84 inches (250 mm)

Shipping Width

23.46 inches (596 mm)

Shipping Depth

38.58 inches (980 mm)

Color

Black

Units per Pallet

8.00

Environmental

Operating Environment

32 - 104 °F (0 - 40 °C)

Operating Relative Humidity

0 - 95%

Operating Elevation

0-10000 feet (0-3000 meters)

Storage Temperature

23 - 131 °F (-5 - 55 °C)

Storage Relative Humidity

0 - 95%

Storage Elevation

0-30000 feet (0-9000 meters)

Audible noise at 1 meter from surface of unit

55 dBA

Online Thermal Dissipation

300.00 BTU/hr

Conformance

Regulatory Approvals

BSMI,CSA,FCC Part 15 Class A,NOM,UL 1778,VCCI

Standard Warranty

2 years repair or replace

Equipment protection policy

Lifetime : $150000

Runtime Chart:

Runtime Chart
	Download the APC Smart-UPS XL Runtime Chart (PDF).

Documentation:

APC Documentation
	Download the APC Smart-UPS XL SUM3000RMXL2U Data Sheet (PDF).
