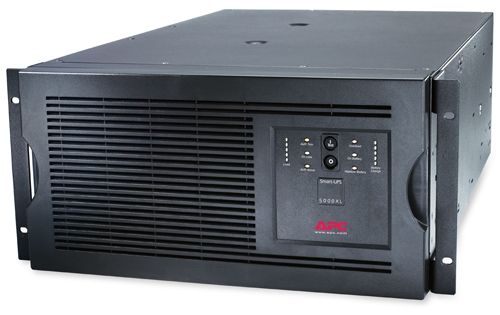

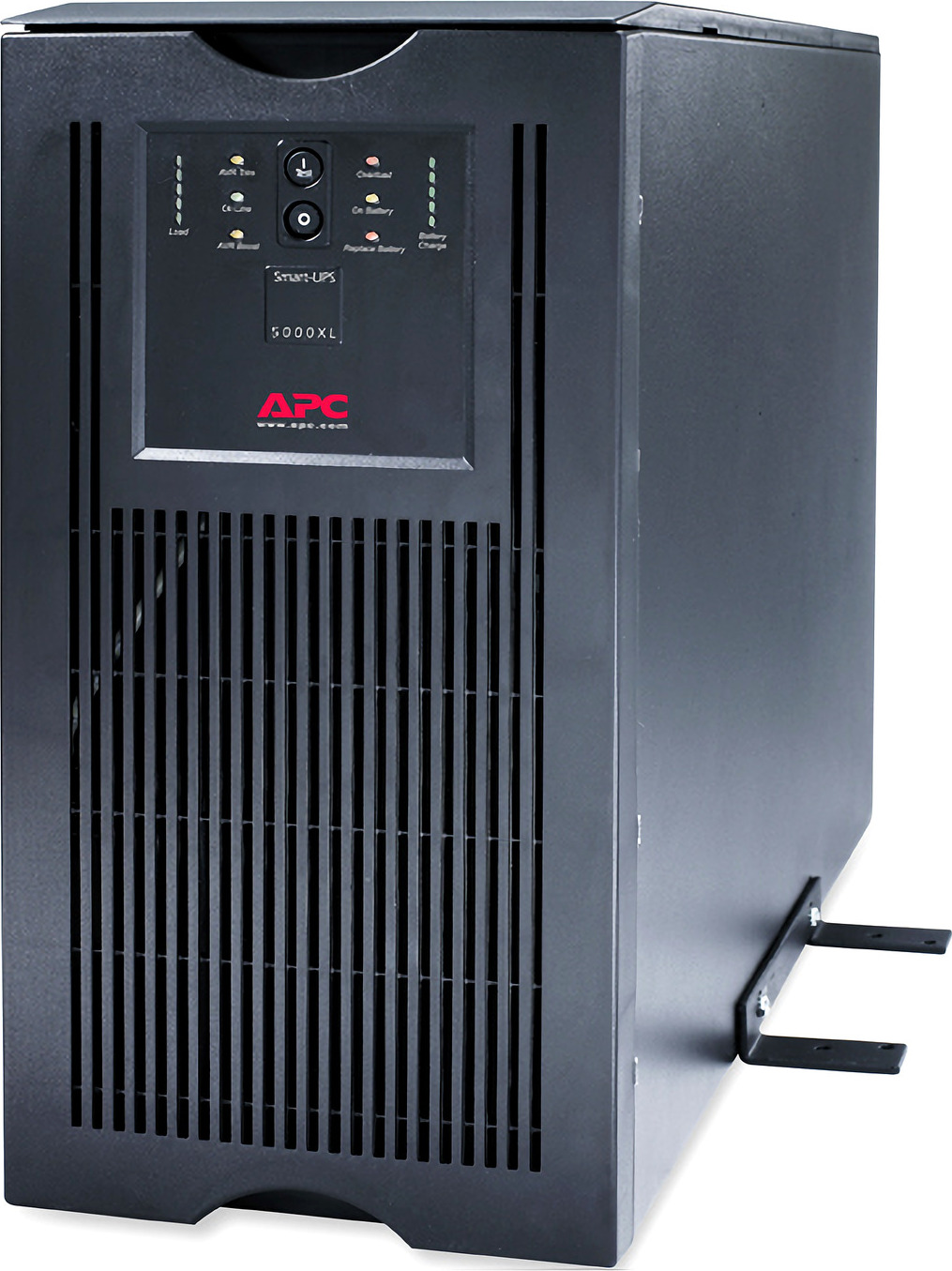

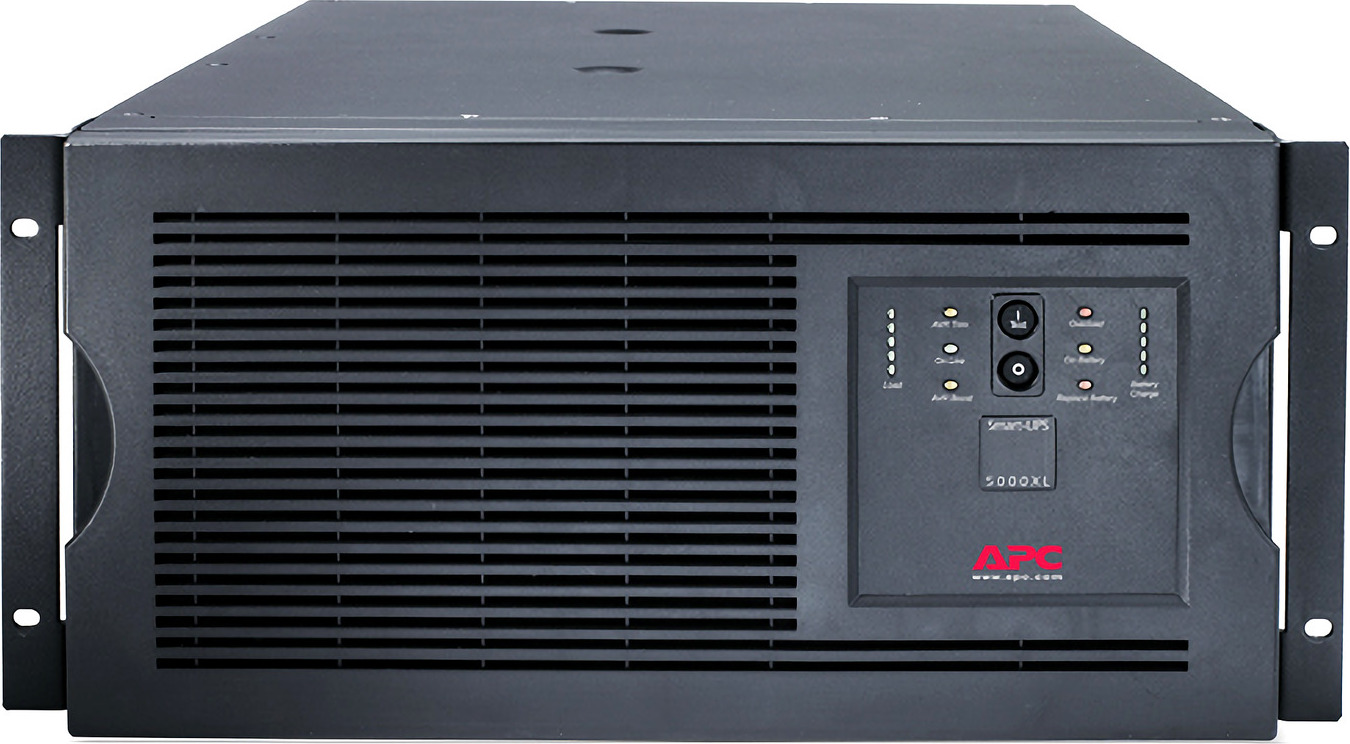

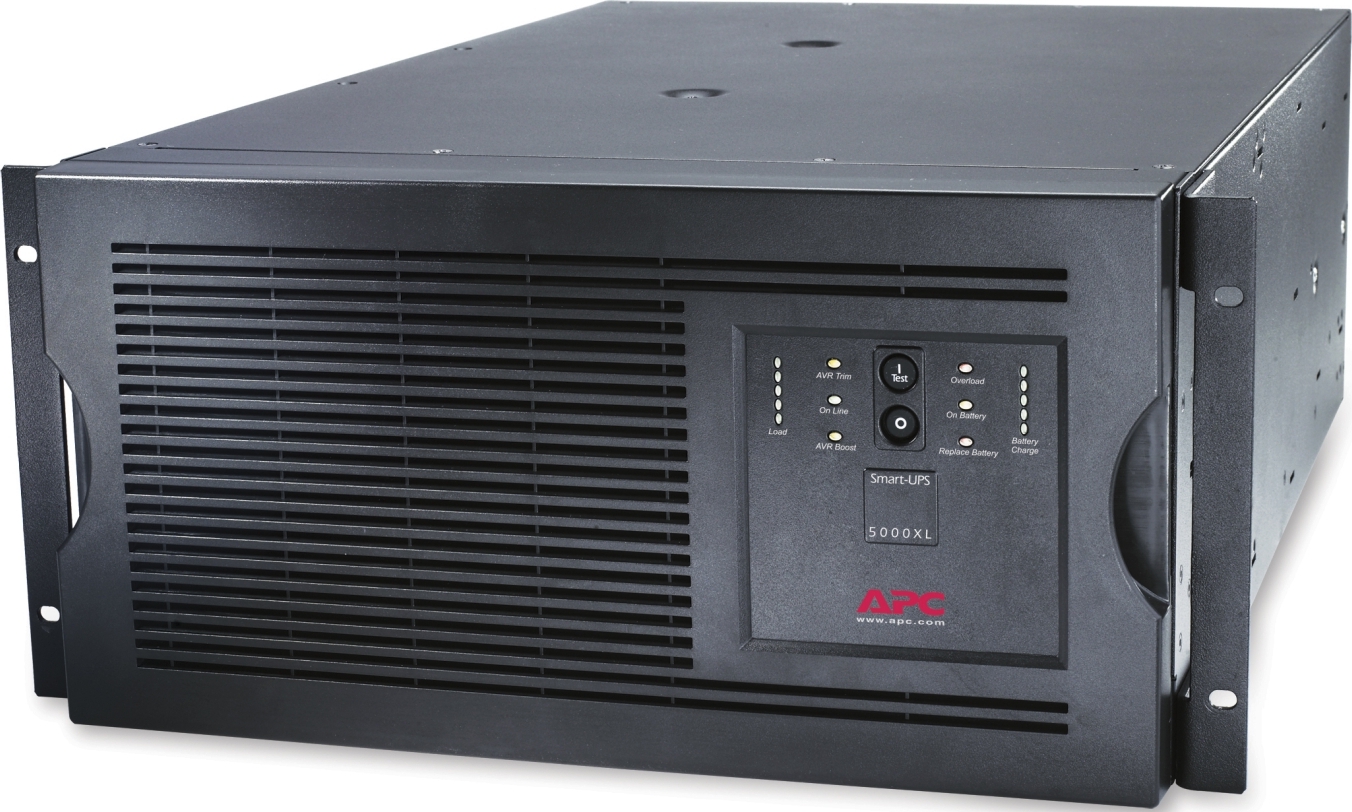

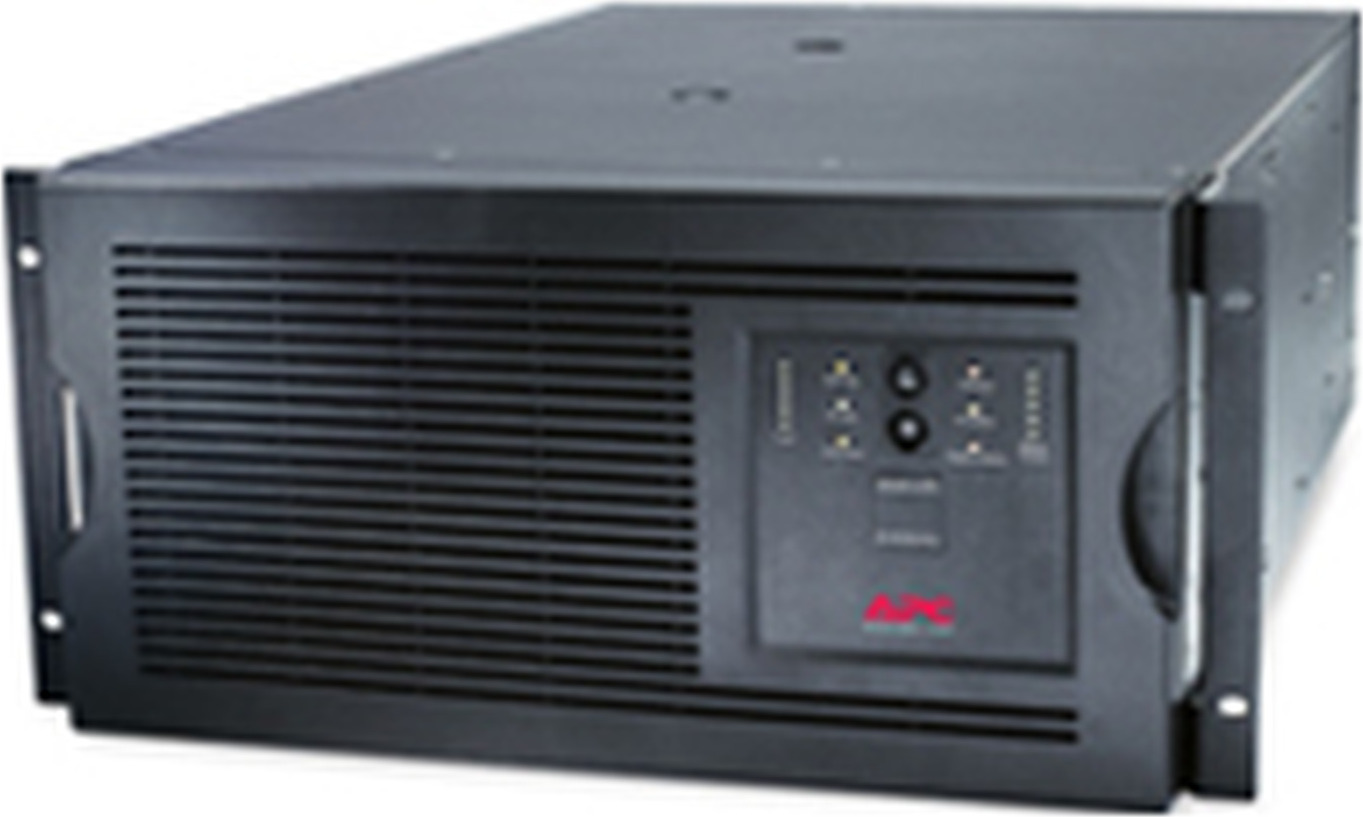

APC Smart-UPS 5000VA 208V Rackmount/Tower

Over 10 million currently installed - the one you can trust

APC Smart-UPS® protects critical data by supplying reliable, network-grade power in either traditional tower or rack-optimized form factors. Award-winning Smart-UPS® is the perfect UPS for protecting business critical servers, voice and data networks, point of sale, retail/bank back office and ATM's. High real power output (watts), generous runtime, sine wave output, 16-segment LED visual display, and intelligent battery management make Smart-UPS the leading server class UPS. Included PowerChute® management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance the performance of your UPS. Designed and manufactured by APC and fully backed with free 24x7 technical support, Smart-UPS remains the industry standard for all network UPSs. With over 10 million units installed worldwide and over 15 years of proven performance, Smart-UPS is a UPS businesses trust for their critical applications.

Features and Benefits:

Runtime Chart:

Click here to view the Smart-UPS Runtime Chart. (pop-up window)

Technical Specifications:

Output

Output Power Capacity

4000 Watts / 5000 VA

Max Configurable Power

4000 Watts / 5000 VA

Nominal Output Voltage

208V

Efficiency at Full Load

96.00%

Output Voltage Distortion

Less than 5% at full load

Output Frequency (sync to mains)

47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal

Crest Factor

up to 5 : 1

Waveform Type

Sine wave

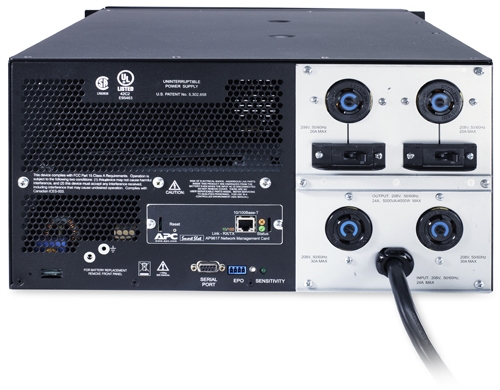

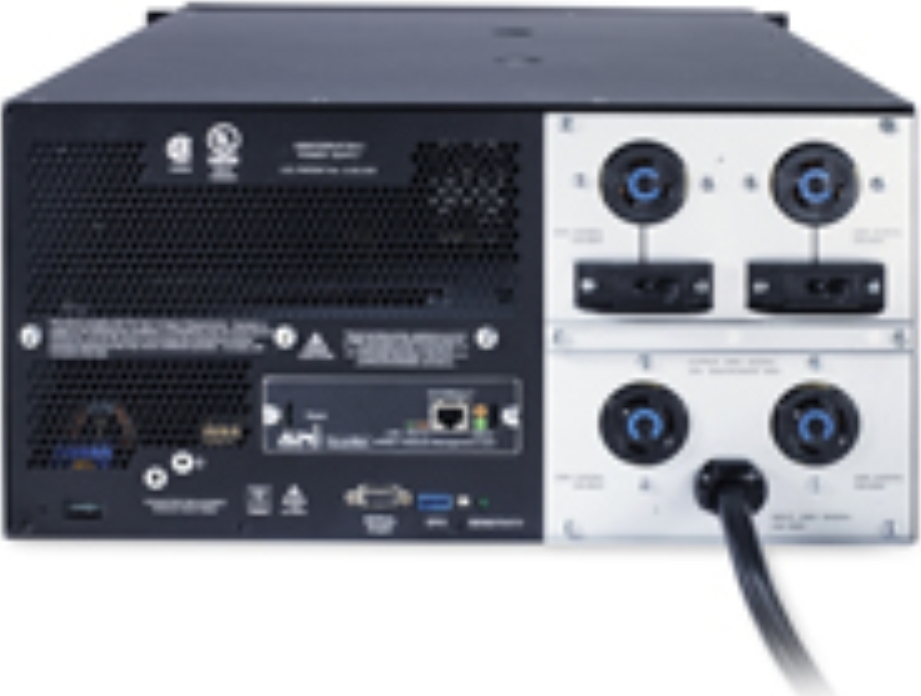

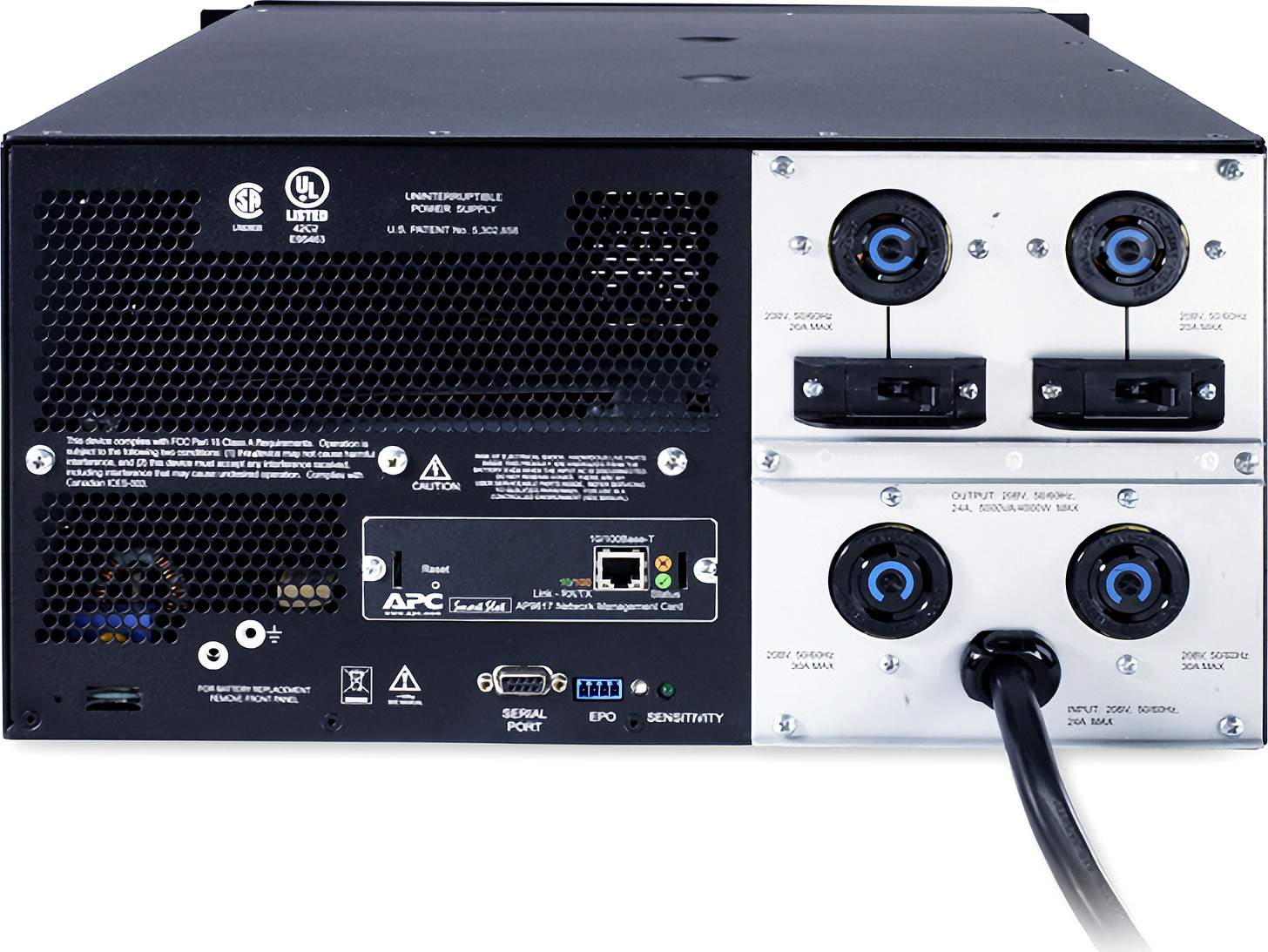

Output Connections

(2) NEMA L6-20R
(2) NEMA L6-30R

Input

Nominal Input Voltage

208V

Input Frequency

50/60 Hz +/- 5 Hz (manual switch)

Input Connections

NEMA L6-30P

Cord Length

8 feet (2.44 meters)

Input voltage range for main operations

141 - 255V

Input voltage adjustable range for mains operation

131 - 268V

Batteries & Runtime

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3 hour(s)

Replacement battery cartridge

RBC55

RBC™ Quantity

2

Typical Backup Time
at Half Load

26.7 minutes (2000 Watts)

Typical Backup Time
at Full Load

9.4 minutes (4000 Watts)

Runtime Chart

Smart-UPS

Communications & Management

Interface Port(s)

DB-9 RS-232,SmartSlot

Pre-Installed SmartSlot™ Cards

AP9617

Control panel

LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Optional

Surge Protection and Filtering

Surge energy rating

480 Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

8.75 inches (222 mm)

Maximum Width

19.00 inches (483 mm)

Maximum depth

26.00 inches (660 mm)

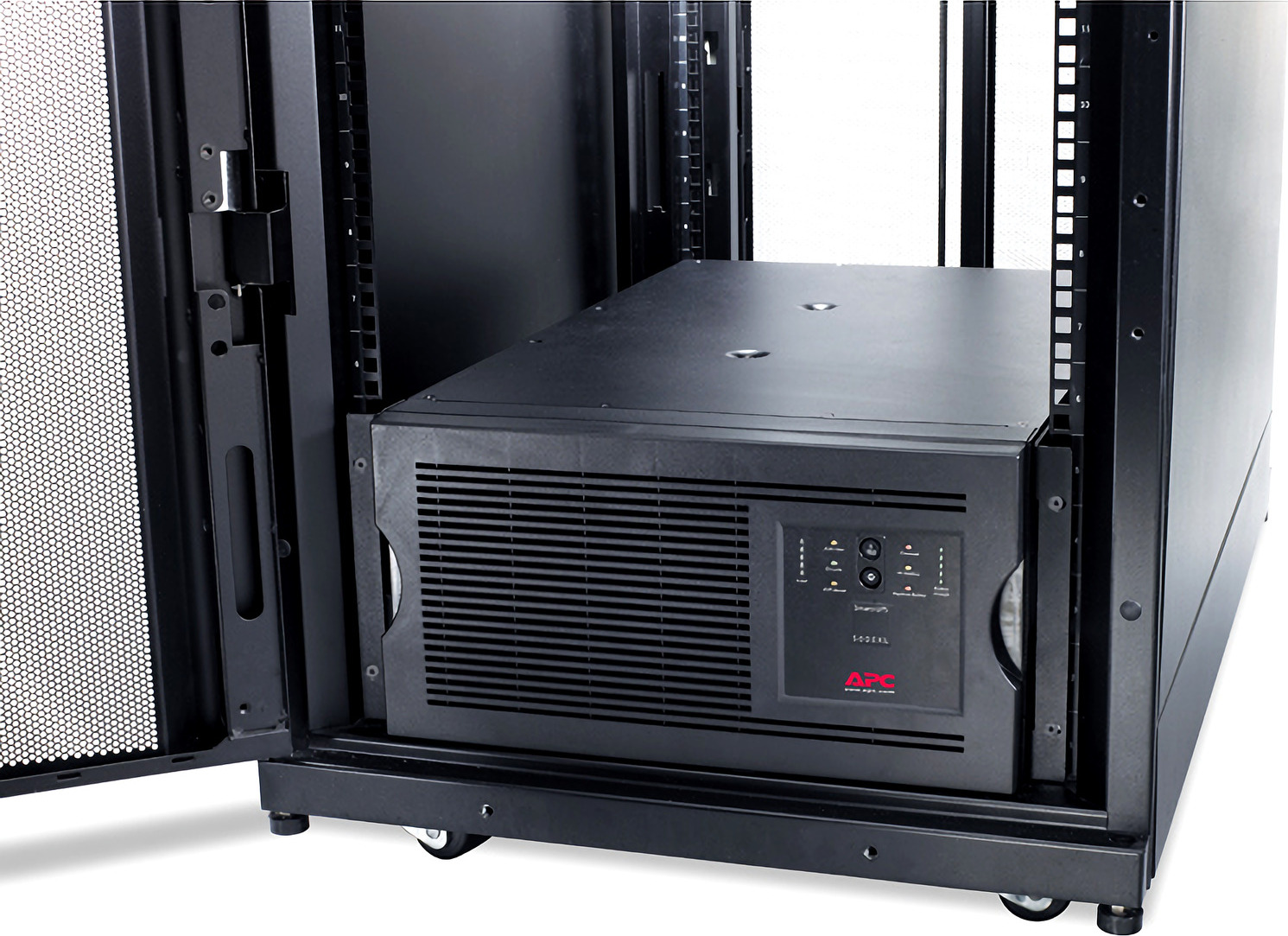

Rack Height

5U

Net Weight

215.00 lbs. (97.73 kg)

Shipping Weight

235.00 lbs. (106.82 kg)

Shipping Height

25.00 inches (635 mm)

Shipping Width

24.00 inches (610 mm)

Shipping Depth

30.00 inches (762 mm)

Color

Black

Units per Pallet

3.00

Environmental

Operating Environment

32 - 113 °F (0 - 45 °C)

Operating Relative Humidity

0 - 95%

Operating Elevation

0-10000 feet (0-3000 meters)

Storage Temperature

23 - 131 °F (-5 - 55 °C)

Storage Relative Humidity

0 - 95%

Storage Elevation

0-50000 feet (0-15000 meters)

Audible noise at 1 meter from surface of unit

53.00 dBA

Online Thermal Dissipation

344.00 BTU/hr

Protection Class

--

Conformance

Regulatory Approvals

CSA,FCC Part 15 Class A,UL 1778

Standard Warranty

2 years repair or replace

Protection Class

--

Equipment protection policy

Lifetime : $150000

Documentation:

Download the APC SUA5000RMT5U Data Sheet (PDF).
