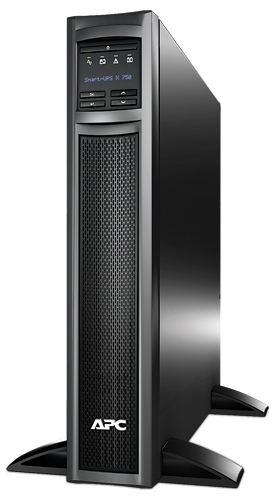

APC Smart-UPS XL 750VA Rack/Tower LCD 120V
APC Smart-UPS, 600 Watts / 750 VA,Input 120V / Output 120V, Extended runtime model, Rack Height 2U

APC Smart-UPS X 750VA Rack/Tower LCD 120V

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Removable support feet, Smart UPS signalling RS-232 cable, USB cable

APC Network & Server UPS
APC Smart-UPS XL
APC Smart-UPS XL 750VA Rack/Tower LCD 120V
#SMX750
Our Price: $519.00
APC Smart-UPS X 750VA Tower/Rack 120V with bundled network management card (NMC)
#SMX750-NMC
Our Price: $779.00

Over 10 million currently installed - the one you can trust

APC Smart-UPS® XL protects your data by supplying reliable, network-grade power and scalable runtime in tower or rack-mount form factors. Customers can configure up to 10 matching battery packs for runtimes exceeding 24 hours, if needed. Typical applications requiring longer runtime include critical application servers and storage, IP and PBX based voice networks, and enterprise network switches and hubs. Included PowerChute® management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance performance. . Engineered with the same standards as the award-winning Smart-UPS, with over 10 million installed, the Smart-UPS XL adds the advantage of unsurpassed runtime capability for those business applications that demand continual uptime.

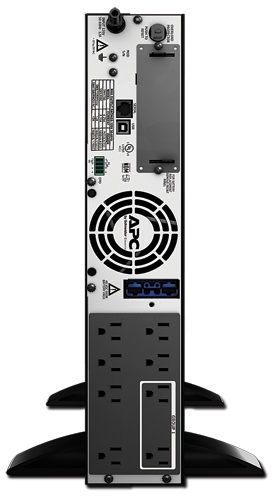

APC Smart-UPS XL 750VA Rack/Tower LCD 120V Rear

Features & Benefits:

Availability
Boost and Trim Automatic Voltage Regulation (AVR) Provides protection of connected equipment from power surges on the data lines.
Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Cold-start capable Provides temporary battery power when the utility power is out.
Disconnected battery notification Warns when a battery is not available to provide backup power.
Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used.
Manageability
Network manageable Monitor and control the UPS remotely via included PowerChute software or APC Network Management Card (included in all models above 3kVA).
SmartSlot Customize UPS capabilities with management cards.
Audible alarms Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators Enables quick understanding and response to visual indicators showing UPS status.
Disconnected battery notification Warns when a battery is not available to provide backup power.
Serial Connectivity Provides management of the UPS via a serial port.
InfraStruXure Manager compatible Enables centralized management via the APC InfraStruXure® Manager.
Serviceability
User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers Enables quick recovery from UPS overload events.
Adaptability
Plug-and-Play external batteries Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.

Runtime Chart:

Click here for APC Smart-Ups XL Runtime Chart. (pop-up window)

Technical Specifications:

Output
Output Power Capacity 600 Watts / 750 VA
Nominal Output Voltage 120V
Output Voltage Distortion Less than 5%
Output Frequency (sync to mains) 47 - 63 Hz
Crest Factor 3 : 1
Waveform Type Sine wave
Output Connections NEMA 5-15R(8) NEMA 5-15R
Input
Nominal Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections NEMA 5-15PNEMA 5-15P
Cord Length 8 feet (2.44 meters)
Input voltage range for main operations 82 - 143V
Input voltage adjustable range for mains operation 75 - 154V
Maximum Input Current 12A
Input Breaker Capacity 15A
Batteries & Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Included Battery Modules 1
Available Battery Slots 1
Typical recharge time 3 hour(s)
RBC™ Quantity 1
DC Overcurrent Protection 60A
Runtime Graph

A: SMX750
B: SMX750 + (1)SMX48RMBP2U
C: SMX750 + (2)SMX48RMBP2U
D: SMX750 + (3)SMX48RMBP2U
E: SMX750 + (4)SMX48RMBP2U

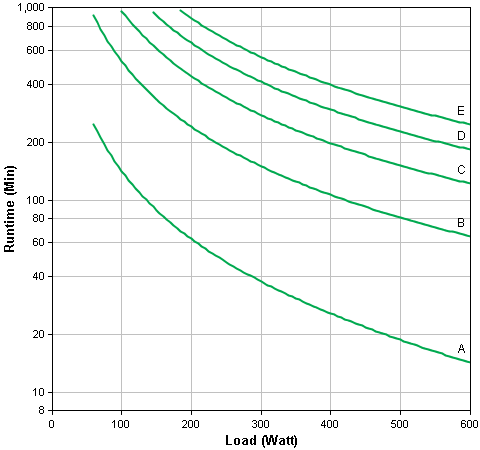

SMX750 Runtime Graph

Hover over the line on the graph above to view the runtime at any desired load

 Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Energy Use/Efficiency

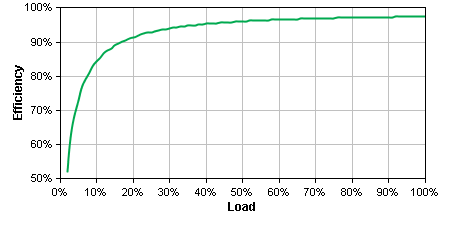

SMX750 Efficiency Graph

Hover over the line on the graph above to view the efficiency at any desired load

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Communications & Management
Available SmartSlot™ Interface Quantity 1
Control panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) Yes
Surge Protection and Filtering
Surge Energy Rating 645 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 17.00 inches (432 mm)
Maximum Width 3.50 inches (89 mm)
Maximum Depth 19.80 inches (503 mm)
Net Weight 48.50 lbs. (22.05 kg)
Shipping Weight 58.30 lbs. (26.50 kg)
Shipping Height 23.20 inches (589 mm)
Shipping Width 9.70 inches (246 mm)
Shipping Depth 24.40 inches (620 mm)
Color Black
Units per Pallet 16.00
Rack Height 2U
Environmental
Operating Environment 32 - 104°F (0 - 40°C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 5 - 113°F (-15 - 45°C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-10000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit 40.00 dBA
Online Thermal Dissipation 69.00 BTU/hr
Conformance
Regulatory Approvals cUL Listed, UL 1778
Standard Warranty 3 years repair or replace (excluding battery) and 2 year for battery
Equipment protection policy Lifetime: $150,000
Environmental Compliance RoHS 7b Exemption, REACH: Contains No SVHCs
