APC - American Power Conversion by Schneider Electric

APC Smart-UPS 2200VA LCD 120V
APC Smart-UPS, 1980 Watts / 2200 VA,Input 120V / Output 120V, Interface Port DB-9 RS-232, USB, SmartSlot

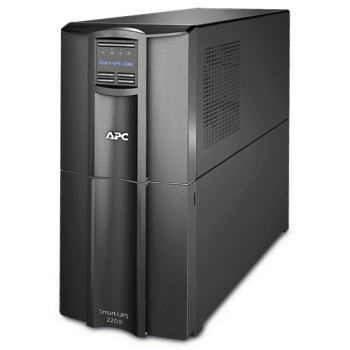

APC Smart-UPS 2200VA LCD 120V

Includes: CD with software, Documentation CD, Smart UPS signaling RS-232 cable, USB cable

APC Product
APC SMART-UPS
APC Smart-UPS 2200VA LCD 120V #SMT2200
Our Price: $939.00

Note: Shipping charges may vary depending on the selected unit's weight or the quantity of units selected. As a result, the shipping charges may change from the value you receive at checkout. A customer representative will confirm these changes with you if they occur.

Over 20 million units sold - the UPS you can trust

APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

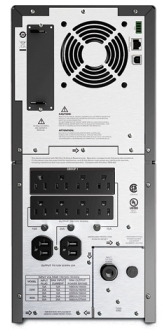

APC Smart-UPS 2200VA LCD 120V Rear

Features and Benefits:


Availability
Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter Provides actual kilowatt hours of usage for energy conscious users.
Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Cold-start capable Provides temporary battery power when the utility power is out.
Disconnected battery notification Warns when a battery is not available to provide backup power.
Manageability
Network manageable Monitor and control the UPS remotely via included PowerChute software or APC Network Management Card (included in all models above 3kVA).
Audible alarms Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators Quickly understand unit and power status with visual indicators.
Serial Connectivity Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
USB connectivity Provides management of the UPS via a USB port (not available on all models).
SmartSlot Customize UPS capabilities with management cards.
Disconnected battery notification Warns when a battery is not available to provide backup power.
InfraStruXure Manager compatible Enables centralized management via the APC InfraStruXure® Manager.
Serviceability
User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers Enables quick recovery from UPS overload events.
Adaptability
Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Field-replaceable power distribution panel Ensures compatibility with equipment that has different plug types.
Safety
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.

Runtime Chart:


Click here to view the Smart-UPS Runtime Chart. (pop-up window)

Technical Specifications:


Output
Output Power Capacity 1980 Watts / 2200 VA
Max Configurable Power 1980 Watts / 2200 VA
Nominal Output Voltage 120V
Output Voltage Distortion Less than 5% at full load
Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Crest Factor up to 5 : 1
Waveform Type Sine wave
Output Connections

NEMA 5-15R(8) NEMA 5-15R


NEMA 5-20R(2) NEMA 5-20R

Input
Nominal Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections NEMA 5-20PNEMA 5-20P
Cord Length 6 feet (1.83 meters)
Input voltage range for main operations 82 - 144V
Input voltage adjustable range for mains operation 75 - 154V
Batteries & Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3 hour(s)
Replacement battery cartridge RBC55
RBC™ Quantity 1
Runtime Graph

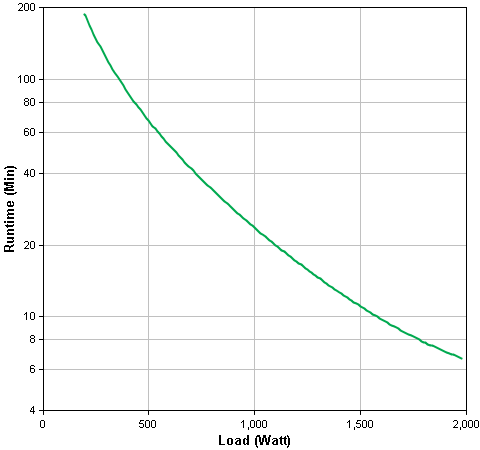

SMT2200 Runtime Graph

Hover over the line on the graph above to view the runtime at any desired load

 Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Energy Use/Efficiency

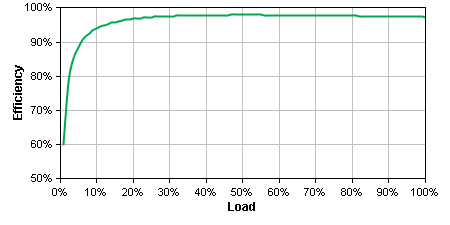

SMT2200 Efficiency Graph

Hover over the line on the graph above to view the efficiency at any desired load

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Communications & Management
Interface Port(s) DB-9 RS-232,Smart-Slot,USB
Available SmartSlot™ Interface Quantity 1
Control panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Optional
Surge Protection and Filtering
Surge Energy Rating 530 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 17.00 inches (432 mm)
Maximum Width 7.70 inches (196 mm)
Maximum Depth 21.50 inches (546 mm)
Net Weight 112.00 lbs. (50.91 kg)
Shipping Weight 134.00 lbs. (60.91 kg)
Shipping Height 22.00 inches (559 mm)
Shipping Width 15.00 inches (381 mm)
Shipping Depth 30.00 inches (762 mm)
Color Black
Units per Pallet 3.00
Environmental
Operating Environment 32 - 104°F (0 - 40°C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 5 - 113°F (-15 - 45°C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit 45.00 dBA
Online Thermal Dissipation 275.00 BTU/hr
Conformance
Regulatory Approvals CSA, FCC Part 15 Class A, UL 1778
Standard Warranty 3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available
Equipment protection policy Lifetime : $150,000
Environmental Compliance RoHS 7b Exemption
