APC Smart-UPS SC 450 with Network Management Card
APC Smart-UPS, 280 Watts /450 VA, Input 120V /Output 120V, Interface Port DB-9 RS-232, Rack Height 1 U

SmartUPS SC 450 with Network Management Card

Includes: Battery modules ship installed, CD with software, Rack Mounting brackets, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card

APC Products
APC Smart-UPS SC
SmartUPS SC 450 with Network Management Card
#SC450R1X542
Our Price: $439.00

More pricing below, click here!

Best solution for poor power regions and applications requiring longer runtimes.

Brings Smart-UPS reliability to entry-level applications.

APC Smart-UPS SC is ideal for small and medium businesses looking to protect entry-level servers and networking equipment from power disturbances and outages. The Smart-UPS SC features network grade runtime, hot swap batteries, and built-in data line protection for worry free uninterruptible power protection for increased availability. The included PowerChute Business Edition software, which has an installed base in the millions, gives entry-level network and server users a proven UPS management solution. PowerChute Business Edition also manages other Smart-UPS models, allowing easy upgrades as applications change, without having to replace software or retrain administrators. Most Smart-UPS SC models can be installed in either a tower or rack configuration, allowing standardization across multiple applications. Built on the same standards as the award-winning Smart-UPS, with over 10 million installed, Smart-UPS SC provides the basic features and manageability needed to protect entry-level applications.

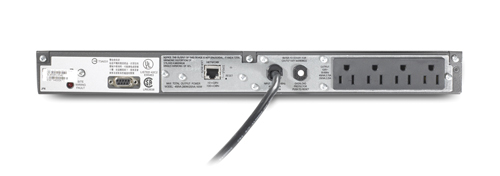

SC450R1X542 Rear

Features & Benefits:

Availability
Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification Warns when a battery is not available to provide backup power.
Manageability
Network manageable Provides remote power management of the UPS over the network.
Audible alarms Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators Quickly understand unit and power status with visual indicators.
Serial Connectivity Provides management of the UPS via a serial port.
USB Connectivity Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification Warns when a battery is not available to provide backup power.
Serviceability
User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers Enables a quick recovery from overload events.
Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Technical Specifications:

Output
Output Power Capacity 280 Watts / 450 VA
Max Configurable Power 280 Watts / 450 VA
Nominal Output Voltage 120V
Output Voltage Distortion Less than 5% at full load
Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Crest Factor --
Topology Line Interactive
Waveform Type Stepped approximation to a sinewave
Output Connections NEMA 5-15R(4) NEMA 5-15R
Input
Nominal Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections NEMA 5-15PNEMA 5-15P
Cord Length 6 feet (1.83 meters)
Input voltage range for main operations 82 - 144V
Input voltage adjustable range for mains operation 75 - 154V
Batteries & Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time 5 hour(s)
Replacement battery cartridge RBC18
RBC™ Quantity 1

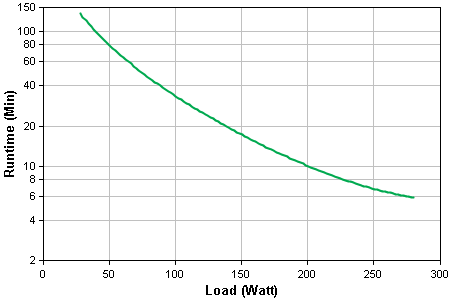

Runtime Graph

SC450R1X542 Runtime Graph

Hover over the line on the graph above to view the efficiency at any desired load

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Communications & Management
Interface Port(s) DB-9 RS-232
Control Panel LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge Energy Rating 412 Joules
Filtering Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 1.72 inches (44 mm)
Maximum Width 17.00 inches (432 mm)
Maximum Depth 15.17 inches (385 mm)
Rack Height 1U
Net Weight 25.00 lbs. (11.36 kg)
Shipping Weight 28.50 lbs. (12.95 kg)
Shipping Height 6.46 inches (164 mm)
Shipping Width 18.73 inches (476 mm)
Shipping Depth 23.17 inches (589 mm)
Color Grey
Units per Pallet 32.00
Environmental
Operating Environment 32 - 104°F (0 - 40°C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 5 - 113°F (-15 - 45°C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit 38.00 dBA
Online Thermal Dissipation 38.00 BTU/hr
Conformance
Regulatory Approvals CSA,FCC Part 15 Class A,UL 1778
Standard Warranty 2 years repair or replace
Sustainable Offer Status
RoHS Compliant
