APC Roof Fan Tray
Rack Air distribution for power dense racks and low pressure areas

APC Roof Fan Tray

Includes: Installation guide

APC Products
APC Roof Fan Tray
APC Roof Fan Tray 120V 50/60HZ for NetShelter SX 600mm Enclosures
#ACF501
Our Price: $349.00
APC Roof Fan Tray 208-230 VAC for NetShelter SX 600mm Enclosures
#ACF502
Our Price: $349.00
APC Roof Fan Tray 120V 50/60HZ for NetShelter SX 750mm Enclosures
#ACF503
Our Price: $539.00
APC Roof Fan Tray 208-230 VAC for NetShelter SX 750mm Enclosures
#ACF504
Our Price: $539.00
APC Roof Fan Tray 120V 50/60HZ for NetShelter WX Enclosures
#AR8206ABLK
Our Price: $139.00
APC Roof Fan Tray 208/230V 50/60HZ for NetShelter WX Enclosures
#AR8207BLK
Our Price: $159.00

Rack Fan Tray:

The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.

APC Roof Fan Tray

ACF501, ACF502, ACF503, and ACF504

Includes: Installation guide

APC InfraStruXure CertifiedRoHS

APC Roof Fan Tray

AR8206ABLK and AR8207BLK

Includes: Installation guide, Qty 1 - IEC to NEMA 5-15P power cord, Qty 2 - Fans

Features & Benefits:

Availability
Dual fans Provides fault tolerance in the event of a fan failure.
Minimizes Air Mixing Delivers cool, conditioned air directly from the raised floor to the inlet of the IT equipment.
Agility
Air Filtration Removes dirt and other particulates from the intake air for cleaner supply air.
Fan control switches Users can turn one or both fans on and off depending on the heat load.
Mounting rails Adjustable depth allows the unit to fit APC NetShelter enclosures or other 19" EIA-310-D enclosures.
Fan guards A safety measure that provides protection from the fan opening by covering the inlet.
Total Cost of Ownership
Dual A-B Power Inputs Draws power from the UPS for power protection with dual feeds for redundancy.

Product Views:

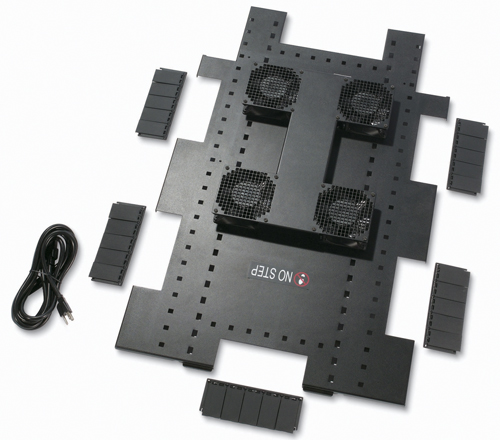

ACF501, ACF502, ACF503, and ACF504:

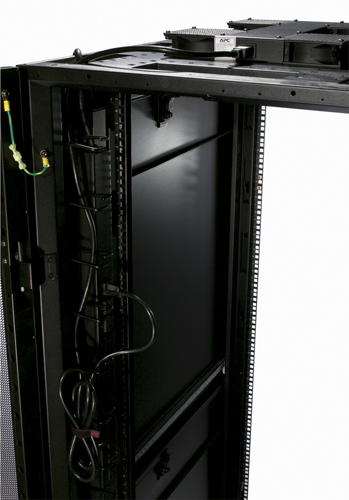

APC Roof Fan Tray

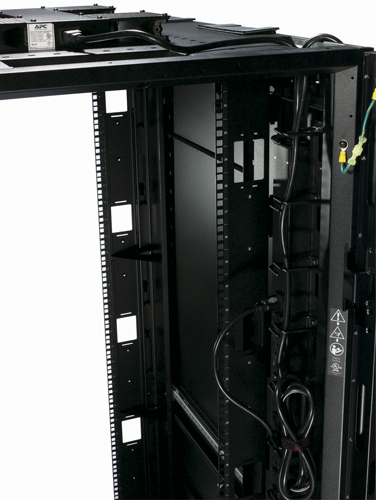

APC Roof Fan Tray

AR8206ABLK and AR8207BLK:

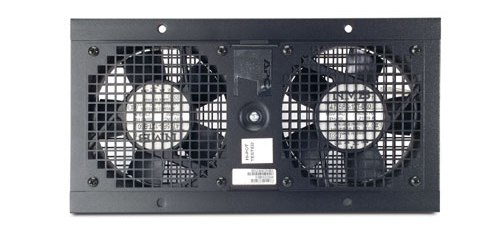

APC Roof Fan Front

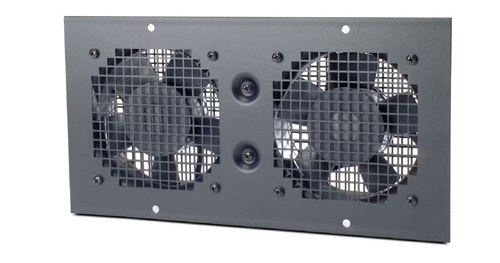

APC Roof Fan Rear

APC Roof Fan Side



Technical Specifications:

General
Air Flow ACF501, ACF502, ACF503 & ACF504: 440 CFM
Input
Nominal Input Voltage 120V
Input Power 50/60 Hz
Input Connections NEMA 5-15PNEMA 5-15P
Physical
Maximum Height ACF501, ACF502, ACF503 & ACF504: 2.36 inches (60 mm)
AR8206ABLK & AR8207BLK: 2.13 inches (54 mm)
Maximum Width ACF501, ACF502, ACF503 & ACF504: 28.50 inches (724 mm)
AR8206ABLK & AR8207BLK: 12.50 inches (318 mm)
Maximum Depth ACF501, ACF502, ACF503 & ACF504: 35.16 inches (893 mm)
AR8206ABLK & AR8207BLK: 6.90 inches (175 mm)
Net Weight ACF501, ACF502, ACF503 & ACF504: 22.50 lbs. (10.24 kg)
AR8206ABLK & AR8207BLK: 4.00 lbs. (1.82 kg)
Shipping Weight ACF501, ACF502, ACF503 & ACF504: 30.40 lbs. (13.82 kg)
AR8206ABLK & AR8207BLK: 6.00 lbs. (2.73 kg)
Color Black
Environmental
Audible noise at 1 meter from surface of unit ACF501, ACF502, ACF503 & ACF504: 51.00 dBA
Conformance
Regulatory Approvals ACF501, ACF502, ACF503 & ACF504: CSA C22.2 No. 60950,PSE,UL 60950
AR8206ABLK & AR8207BLK: CSA,UL Listed
Standard Warranty 2 years repair or replace
Environmental Compliance RoHS
