APC Rack Air Distribution Unit
Rack Air distribution for power dense racks and low pressure areas

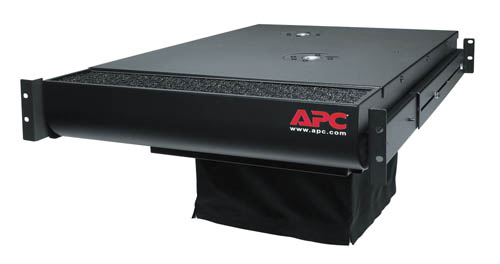

APC Rack Air Distribution Unit

Includes: Rack Mounting brackets, User Manual

APC Products
APC Rack Air Distribution Unit
APC Rack Air Distribution Unit 2U 120V 60HZ
#ACF001
Our Price: $859.00
APC Rack Air Distribution Unit 2U 208/230V 50/60HZ
#ACF002
Our Price: $859.00

Rack Air Distribution Unit 2U 120V 60HZ and 208/230V 50/60HZ:

The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.

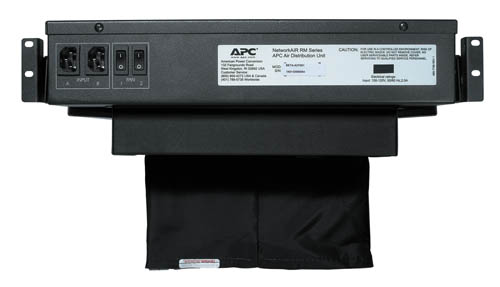

APC Rack Air Distribution Unit Rear

Features & Benefits:

Availability
Dual fans Provides fault tolerance in the event of a fan failure.
Minimizes Air Mixing Delivers cool, conditioned air directly from the raised floor to the inlet of the IT equipment.
Agility
Air Filtration Removes dirt and other particulates from the intake air for cleaner supply air.
Fan control switches Users can turn one or both fans on and off depending on the heat load.
Mounting rails Adjustable depth allows the unit to fit APC NetShelter enclosures or other 19" EIA-310-D enclosures.
Fan guards A safety measure that provides protection from the fan opening by covering the inlet.
Total Cost of Ownership
Dual A-B Power Inputs Draws power from the UPS for power protection with dual feeds for redundancy.

Product Views:

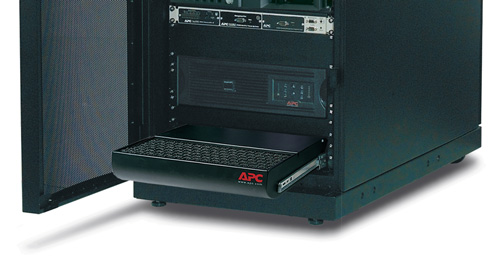

APC Rack Air Distribution Unit underfloor

Technical Specifications:

General
Air Flow 120V 60HZ: 503 CFM
208/230V 50/60HZ: 420 CFM
Amp Draw Nominal 120V 60HZ: 2A
208/230V 50/60HZ: 1A
Input
Nominal Input Voltage 120V 60HZ: 120V
208/230V 50/60HZ: 208V,230V
Input Power 120V 60HZ: 240 Watts
208/230V 50/60HZ: 230 Watts
Input Frequency 120V 60HZ: 60 Hz +/- 1Hz
208/230V 50/60HZ: 50/60 Hz
Rack Height 2U
Input Connections 120V 60HZ: C-13
NEMA 5-15P

208/230V 50/60HZ: C-13
IEC-320 C14

Physical
Maximum Height 3.50 inches (89 mm)
Maximum Width 16.60 inches (422 mm)
Maximum Depth 29.00 inches (737 mm)
Net Weight 41.00 lbs. (18.64 kg)
Shipping Weight 59.00 lbs. (26.82 kg)
Shipping Height 10.00 inches (254 mm)
Shipping Width 33.00 inches (838 mm)
Shipping Depth 33.00 inches (838 mm)
Color Black
Environmental
Audible noise at 1 meter from surface of unit 70.00 dBA
Conformance
Regulatory Approvals UL Recognized
Standard Warranty 2 years repair or replace
