APC NetShelter SX 48U 750mm Wide x 1070mm Deep Enclosure
Feature-rich IT enclosures optimized for cable management, power distribution, and airflow management

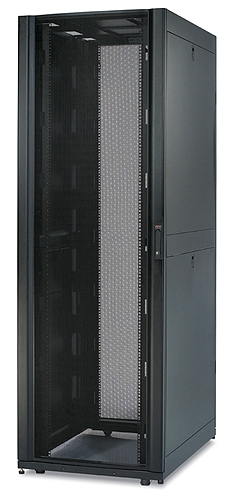

APC NetShelter SX 48U 750mm Wide x 1070mm Deep Enclosure

Includes: Baying hardware, Documentation CD, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels

APC NetShelter Enclosures
APC NetShelter SX
APC NetShelter SX 48U 750mm Wide x 1070mm Deep Enclosure
#AR3157
Our Price: $1,950.00
RoHS

Overview:

World's most versatile rack enclosure for demanding IT environments

The APC NetShelter SX is the next generation rack enclosure solution influenced by 10 years of customer feedback and addresses current IT market trends for high-density server and networking applications. With a strong focus on cooling, power distribution, cable management and environmental monitoring, the NetShelter SX provides a reliable rack-mounting environment for mission-critical equipment.

Tall and wide enclosure with 48U spaces for additional equipment and increased cable management options for high density server and networking applications.

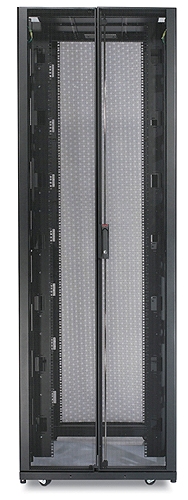

APC NetShelter SX 48U Rear

Features & Benefits:

Compatibility
Integrated with APC InfraStruXure products APC cooling, power distribution, and cable management products work seamlessly with the enclosures to provide a complete IT infrastructure support system.
Guaranteed compatibility Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The APC "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-D compliant rack-mount equipment will physically fit in a NetShelter SX enclosure.
Convenience
Cable Access Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The APC "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-D compliant rack-mount equipment will physically fit in a NetShelter SX enclosure.
Simple Selection No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. APC has made it easy by handling the details and providing complete enclosures with single part numbers.
Ventilated Perforated front and rear doors provide ample ventilation for servers and networking equipment.
Quick release doors Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.
Half-height side panels Half-height quick release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors.
Agility
Rear Cable Management channels Integrated and adjustable rear channel provides zero U mounting locations for toolless accessories. Each channel has two mounting bays to support a combination of up to four accessories such as PDUs and vertical cable organizers.
Adjustable mounting rails The vertical mounting rails can be adjusted in 1/4 in (6.4 mm) increments covering virtually any mounting requirement for IT equipment. U positions are numbered front and back for rapid installation of equipment.
Split rear doors Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing.
Adjustable leveling feet Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench. Enclosures are shipped standard with both leveling feet and castors.
Overhead cable management Overhead cable troughs and partitions install toollessly on the roof of the enclosure eliminating the need for ceiling mounted or underfloor mounted cable trays. Cable troughs and partitions are designed to manage both power and data cables while maintaining separation.
Safety
Structural Stability A proven frame design, heavy-gauge mounting rails, and heavy-duty casters provide for 3000 lb (1364 kg) static and 2250 lb (1023 kg) dynamic load ratings.
Integrated electrical grounding The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.

Product Views:

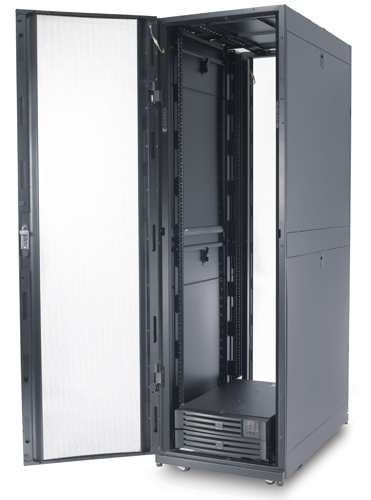

APC NetShelter SX 48U Front Door Open

Front Door Open

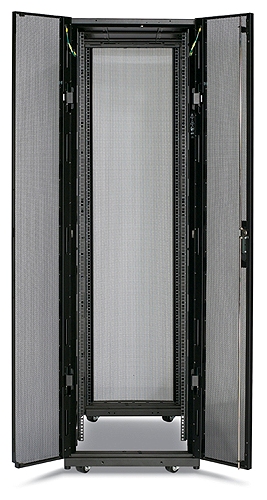

APC NetShelter SX 48U Rear Door Open

Rear Door Open

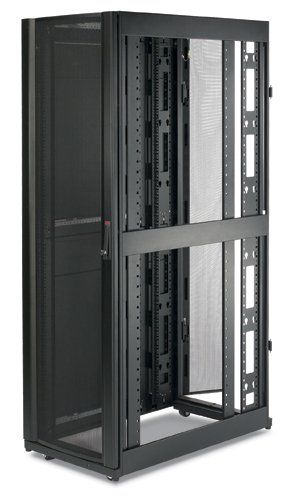

APC NetShelter SX 48U Left Side Open

Left Side Open

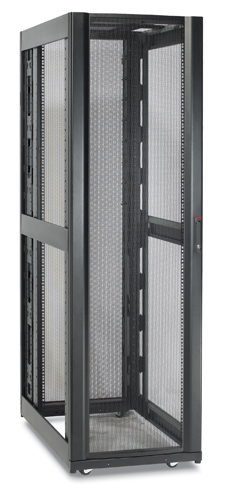

APC NetShelter SX 48U Both Sides Open

Both Sides Open

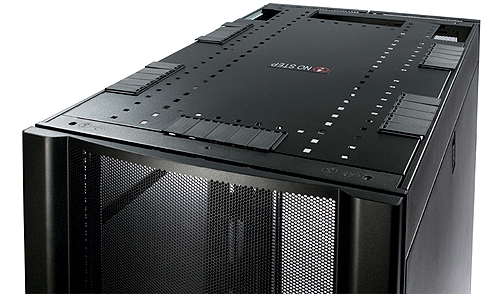

APC NetShelter SX 48U Top View

Top View

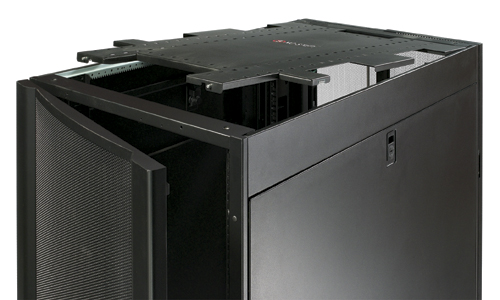

APC NetShelter SX 48U Top Open

Top Open

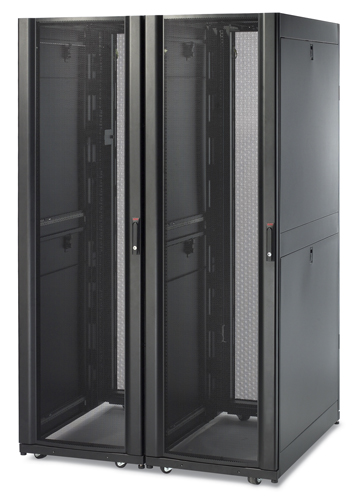

Two NetShelter SX

Two NetShelter SX

Technical Specifications:

Physical
Maximum Height 88.90 inches (2258 mm)
Maximum Width 29.53 inches (750 mm)
Maximum Depth 42.13 inches (1070 mm)
Net Weight 372.00 lbs. (169.09 kg)
Net Depth with Stabilizing Feet 57.51 inches (1461 mm)
Shipping Weight 405.00 lbs. (184.09 kg)
Shipping Height 94.50 inches (2400 mm)
Shipping Width 35.38 inches (899 mm)
Shipping Depth 48.00 inches (1219 mm)
Weight Capacity (static load) 3000.00 lbs. (1363.64 kg)
Weight Capacity (dynamic load) 2250.00 lbs. (1022.73 kg)
Minimum Mounting Depth 10.31 inches (262 mm)
Maximum Mounting Depth 36.02 inches (915 mm)
Rack Height 48U
Color Black
Units per Pallet 1.00
Vertical Posts 16 gauge
Front Door 16 gauge
Rear Door 16 gauge
Roof 18 gauge
EIA Mounting Rails 14 gauge
Side Panels 18 gauge
Conformance
Regulatory Approvals EIA-310-D
Standard Warranty 5 years repair or replace
Standards UL 60950
Environmental Compliance RoHS
