APC NetBotz Rack Monitor 450 (with 120/240V Power Supply)
Wall-mount and rack-mount monitoring for up to 18 external sensors and 2 cameras

APC NetBotz Rack Monitor 450 (with 120/240V Power Supply)

APC Security and Environmental Monitoring
NetBotz 400 Series
APC NetBotz Rack Monitor 450 Appliance with 120/240V Power Supply
#NBRK0451
List Price: $1,875.00
Our Price: $1,632.00

NetBotz Rack Monitor 450 Overview:

Best value security and environmental monitoring for network closets to data centers

The NetBotz 400 offers high performance security and environmental monitoring over the network. The NetBotz 400 is capable of video surveillance and monitoring to record human activity. It provides temperature, humidity, door contact, dry contact, spot leak, vibration, smoke and 2-way audio monitoring. The NetBotz 400's additional features include integration with InfraStruXure Central, Power over Ethernet, and user-defined alerts, making the NetBotz 400 the perfect unit to protect your IT assets from security and environmental threats. The NetBotz 400 can be used in Network closets to data centers, but it is commonly installed in server rooms and small data centers. NetBotz is an active monitoring solution designed to protect against physical threats, environmental or human, that can cause disruption or downtime to IT infrastructure. This scalable suite of networked appliances, sensors, access controls and cameras is designed to safeguard environments ranging in size from network closets to data centers. The modular design allows for common sensors among the NetBotz appliances. Optional user-defined alerts can be sent in a variety of formats and are easily integrated into event escalation policies. For management of multiple NetBotz appliances, use InfraStruXure® Central. InfraStruXure Central surveillance licenses enable a single view of multiple cameras, rapid search and retrieval of video, plus 'tagging' of important video clips.

The NetBotz 450 offers high performance security and environmental monitoring over the network. The NetBotz 450 is capable of video surveillance and monitoring to record human activity. It provides temperature, humidity, door contact, dry contact, 0-5V, 4-20mA (NBRK0451 only), spot leak, vibration, smoke, 2 way audio, and alarm beacon monitoring. The NetBotz 450's additional features include integration with InfraStruXure Central, Power over Ethernet, and userdefined alerts making the NetBotz 450 the perfect unit to protect your IT assets from security and environmental threats. The NetBotz 450 can be used in Network Closets to Data Centers, but it is commonly installed in Server Rooms and small Data Centers.

  • Supports up to 2 external camera pods, 2 sensor pods and up to 18 Universal Sensors.
  • Adjustable alert thresholds
  • Integrates with InfraStruXure Central
  • Includes: Country-specific detachable power cord, Documentation CD, Installation guide, Rack Mounting brackets, Temperature/Humidity Sensor

Features & Benefits:

NBRK0451 Features


Features:
Customizable Input Contacts Monitor conditions from third party devices that have 4-20mA outputs.
Customizable Output Relays Control output from third party devices via output relay(s).

NetBotz 400 Features & Benefits


Availability:
Access monitoring Detect access by unauthorized personnel via door switch.
Environmental Monitoring Prevent equipment failure from a full range of threatening environmental conditions.
Surveillance Detect and record motion, allowing a visual record to be paired with an access or environmental alert, which speeds root cause analysis.
Fault notification Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.
Agility:
Adjustable threshold Customize threshold definitions (multiple thresholds per sensor, scheduling, severity levels) to your requirements.
Customized escalation policies Alerts are managed according to your escalation policies and received in multiple formats.
Total Cost of Ownership:
Browser Accessible View the user interface with a browser. Provides quick access from anywhere on a secure network.
Event-driven video storage Video storage prompted by motion or alert.
Protection:
Password Security User-selectable password protection prevents unauthorized access.
Manageability:
Integrates with InfraStruXure Central An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Advanced View client application Robust appliance interface provides historic alerts, graphs, and configuration.
Enterprise management system compatible Manage your APC devices from a single system by forwarding SNMP traps (events) to your preferred enterprise management system.
Alerts View Easily review and correlate alerts. Provide context to alerts by attaching video clips, graphs, and maps.

Technical Specifications:

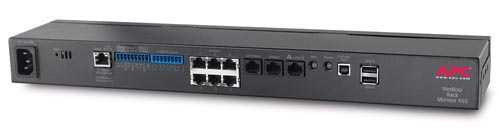

NBRK0451 Front
NBRK0451 Rear

Model: NBRK0451
General
Number of Additional Sensor Pods 2
Housing Rack-mount
Indicators Alert, Power, Network Link
APC Universal Sensors Supported Temperature, Temperature / Humidity, Door Contact, Smoke, Spot Leak, Vibration, Dry Contact, 0-5V
External Cameras Supported NetBotz Camera Pod 160 and CCTV Cameras integrated through the NetBotz CCTV Adapter Pod
Connectors

Ethernet:

  • (1) 10/100 Base-T Ethernet Port

Power:

  • AC Line Inlet Port 100-240 V AC
  • 50/60 Hz
  • (6) APC Universal Sensor Ports
  • (1) USB Configuration Port – Style B
  • (2) USB Ports – Style A
  • (1) A-Link Port
  • (1) Voltage Output Port
  • (2) Relay Output Ports
  • (4) 4-20 mA Input Ports
  • (1) Beacon Port
  • (1) Rope Leak Sensor Port
Includes Installation Guide, Documentation CD, Rack Mounting Brackets, Temperature/Humidity Sensor, USB Cable, Country-Specific Detachable Power Cord
Communications & Management
Protocols TCP/IP, HTTP, HTTPS, SMTP, SNMP v1, v2c, and v3, DHCP, DNS, Socks v4 or V5 Proxy Server, A-Link
Network Interface Connections RJ-45 10/100 Base-T
Management Interface Internet Explorer® v 5.5 or later; Netscape® v 4.79, 5.0 or later; Mozilla® 1.3 or later; Firefox® 2.0 or later; NetBotz Advanced View Software
Client System Requirements Microsoft Windows (Vista Business and Enterprise, XP SP1-3, 2000), Red Hat EL4 and EL5, 512 MB RAM.
Use of Advanced View interface requires a one-time download of the Sun™ Java Runtime Environment™.
Physical
Net Weight 3.83 lbs. (1.74 kg)
Maximum Height 4.49 inches (114 mm)
Maximum Width 20.75 inches (527 mm)
Maximum depth 6.42 inches (163 mm)
Environmental
Operating Environment 32 - 113 °F (0 - 45 °C)
Storage Temperature 5 - 149 °F (-15 - 65 °C)
Operating Relative Humidity 0%
Storage Relative Humidity 0%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Elevation 0-50000 feet (0-15000 meters)
Conformance
Regulatory Approvals AS/NZS 3548 (C-Tick) Class A, cUL Listed, CE, FCC Part 15 Class A, GOST, ICES-003, IRAM, Low Voltage Directive 2006/95/EC, NOM, UL Listed, VCCI Class A, VDE
Standard Warranty 2 years repair or replace

Compare Models:

Model: NetBotz Rack Monitor 200 NetBotz Rack Monitor 450 NetBotz Rack Monitor 570
Part Number: NBRK0201 NBRK0451 NBRK0570
  NetBotz Rack Monitor 450 NetBotz Rack Monitor 450 nbrk0570-sm
Customizable Input Contacts
Customizable Output Relays
Modbus output
General:
Number of Additional Sensor Pods 12 2 12
Housing Rack-mount Rack-mount Rack-mount
Indicators Power, Network Link, Network Status Alert, Power, Network Link Alert, Power, Network Link
APC Universal Sensors Supported Temperature, Temperature / Humidity, Door Contact Temperature, Temperature / Humidity, Door Contact, Smoke, Spot Leak, Vibration, Dry Contact, 0-5V
External Cameras Supported - NetBotz Camera Pod 160 and CCTV Cameras integrated through the NetBotz CCTV Adapter Pod Analog CCTV cameras via USB CCTV Adapter Pod, NetBotz USB Camera Pod, NTSC, PAL, Pelco IP110-CHV9, Pelco IP3701H-2, Pelco IPSD4N-W0
Connectors Ethernet:
  • (1) 10/100 Base-T Ethernet Port

Power:

  • AC Line Inlet Port 100-240 V AC; 50/60 Hz
  • (6) APC Universal Sensor Ports
  • (1) Voltage Output Port
  • (1) Relay Output Port
  • (1) Switchable Outlet Port
  • Modbus Device Port
  • (1) Beacon Port
  • (2) A-Link Port
Ethernet:
  • (1) 10/100 Base-T Ethernet Port

Power:

  • AC Line Inlet Port 100-240 V AC
  • 50/60 Hz
  • (6) APC Universal Sensor Ports
  • (1) USB Configuration Port – Style B
  • (2) USB Ports – Style A
  • (1) A-Link Port
  • (1) Voltage Output Port
  • (2) Relay Output Ports
  • (4) 4-20 mA Input Ports
  • (1) Beacon Port
  • (1) Rope Leak Sensor Port
Ethernet:
  • (1) 10/100 Base-T Ethernet Port

Power:

  • AC Line Inlet Port 100-240 V AC
  • 50/60 Hz
  • (6) APC Universal Sensor Ports
  • (1) USB Configuration Port – Style B
  • (4) USB Ports – Style A
  • (1) A-Link Port
  • (1) Voltage Output Port
  • (2) Relay Output Ports
  • (4) 4-20 mA Input Ports
  • (1) Beacon Port
  • (1) Rope Leak Sensor Port
Communications & Management:
Protocols HTTP, HTTPS, SCP, SMTP, SSH V1,SSH V2,TCP/IP, Telnet TCP/IP, HTTP, HTTPS, SMTP, SNMP v1, v2c, and v3, DHCP, DNS, Socks v4 or V5 Proxy Server, A-Link DHCP, DNS, HTTP, HTTPS, SMTP, SOCKS, TCP/IP
Network Interface Connections RJ-45 10/100 Base-T
Management Interface Internet Explorer® v 5.5 or later; Netscape® v 7.x or later; Firefox® 1.0 or later Internet Explorer® v 5.5 or later; Netscape® v 4.79, 5.0 or later; Mozilla® 1.3 or later; Firefox® 2.0 or later; NetBotz Advanced View Software
Client System Requirements TCP/IP Wizard runs on computers with Microsoft Windows operating systems (XP, 2000, 2003, NT®) Microsoft Windows (Vista Business and Enterprise, XP SP1-3, 2000), Red Hat EL4 and EL5, 512 MB RAM.
Use of Advanced View interface requires a one-time download of the Sun™ Java Runtime Environment™.
Physical:
Net Weight 3.15 lbs. (1.43 kg) 3.83 lbs. (1.74 kg) 3.83 lbs. (1.74 kg)
Maximum Height 4.45 inches (113 mm) 4.49 inches (114 mm) 43.00 mm
Maximum Width 20.75 inches (527 mm) 20.75 inches (527 mm) 432.00 mm
Maximum depth 4.45 inches (113 mm) 6.42 inches (163 mm) 93.00 mm
Environmental:
Operating Relative Humidity 32 - 113 °F (0 - 45 °C)
Storage Relative Humidity 5 - 149 °F (-15 - 65 °C)
Operating Relative Humidity 0 - 95%, non-condensing
Storage Relative Humidity 0 - 95%, non-condensing
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Elevation 0-50000 feet (0-15000 meters)
Conformance:
Regulatory Approvals AS/NZS 3548 (C-Tick) Class A, cUL Listed, CE, FCC Part 15 Class A, ICES-003, Low Voltage Directive 2006/95/EC, PSE, UL Listed, VCCI Class A, VDE AS/NZS 3548 (C-Tick) Class A, cUL Listed, CE, FCC Part 15 Class A, GOST, ICES-003, IRAM, Low Voltage Directive 2006/95/EC, NOM, UL Listed, VCCI Class A, VDE
Standard Warranty 2 years repair or replace

Documentation:

Download the NetBotz 400 Datasheet (PDF).
