APC Metered Rack PDU
1.4 kW - 16.2 kW, 15A - 60A, Horizontal or Vertical Mount

Metered rack PDUs provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.

APC Metered Rack PDU

Keeping your eye open for unplanned overloads - APC Metered Rack power distribution Units (PDUs) provide advanced warning to protect against unplanned power overloads. User-defined alarm thresholds mitigate risk with real-time local and remote alerts of potential unexpected circuit overloads to your mission critical equipment. Metered rack PDUs provides power utilization trends allowing Data Center Managers to make informed decisions on right sizing IT environments to lower total cost of ownership. Users can access and configure Metered rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruXure Manager, InfraStruXure Central, Capacity Manager and Change Manager.

Features & Benefits:

Availability
Remote Management Capabilities Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. (Note: Only applicable for units categorized as Networked).
Local Current Monitoring Display The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Alarm Thresholds Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Load indicator LED Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Integrates with InfraStruXure Central An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Flash Upgradeable Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Agility
Rack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Click on a thumbnail to see that picture in full size!

100V, 120V Input

AP7800 - APC Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15

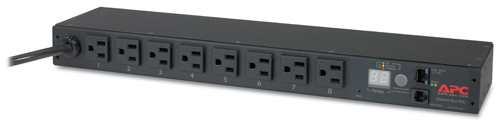

AP7800 Front
AP7800 Rear

  • APC Metered Rack PDU
  • Input: 100V, 120V
  • Input Connections: NEMA 5-15P
  • Cord Length: 12 feet (3.66 meters)
  • Output: 120V
  • Output Connections: (8) NEMA 5-15R
  • Includes: Cord retention bracket(s), Installation guide, Rack Mounting brackets, User Manual

Our Price: $389.00

AP7801 - APC Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20

AP7801 Front
AP7801 Rear

  • APC Metered Rack PDU
  • Input: 100V, 120V
  • Input Connections: NEMA L5-20P
  • Cord Length: 12 feet (3.66 meters)
  • Output: 120V
  • Output Connections: (8) NEMA 5-20R
  • Includes: Cord retention bracket(s), Installation guide, Rack Mounting brackets, User Manual

Our Price: $449.00

AP7802 - APC Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20

AP7802 Front

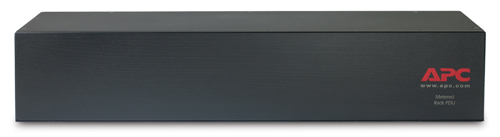

AP7802 Rear

  • APC Metered Rack PDU
  • Input: 100V, 120V
  • Input Connections: NEMA L5-30P
  • Cord Length: 12 feet (3.66 meters)
  • Output: 120V
  • Output Connections: (16) NEMA 5-20R
  • Includes: Cord retention bracket(s), Installation guide, Rack Mounting brackets, User Manual

Our Price: $699.00

200V, 208V, 230V Input

AP7811 - APC Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19

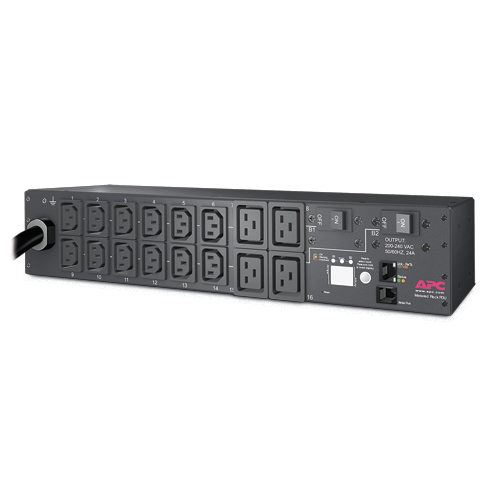

AP7811

  • APC Metered Rack PDU
  • Input: 200V, 208V, 230V
  • Input Connections: NEMA L6-30P
  • Cord Length: 12 feet (3.66 meters)
  • Output: 208V
  • Output Connections: (12) IEC 320 C13, (4) IEC 320 C19
  • Includes: Cord retention bracket(s), Installation guide, Rack Mounting brackets, User Manual

Our Price: $689.00

AP7820 - APC Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13

AP7820 Front
AP7820 Rear

  • APC Metered Rack PDU
  • Input: 200V, 208V, 230V
  • Input Connections: IEC-320 C14
  • Output: 208V, 230V
  • Output Connections: (8) IEC 320 C13
  • Includes: Cord retention bracket(s), Installation guide, Rack Mounting brackets, User Manual

Our Price: $389.99

AP7821 - APC Rack PDU, Switched, 1U, 16A, 208/230V, (8)C13

AP7821 Front
AP7821 Rear

  • APC Metered Rack PDU
  • Input: 200V, 208V, 230V
  • Input Connections: IEC-320 C20
  • Output: 208V, 230V
  • Output Connections: (8) IEC 320 C13
  • Includes: Cord retention bracket(s), Installation guide, Rack Mounting brackets, User Manual

Our Price: $429.00

AP7850 - APC Rack PDU, Metered, Zero U, 10A, 230V, (16) C13

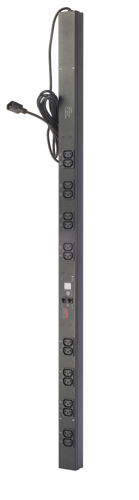

AP7850 - APC Rack PDU, Metered, Zero U, 10A, 230V, (16) C13

  • APC Metered Rack PDU
  • Input: 200V, 208V, 230V
  • Input Connections: NEMA L6-30P
  • Cord Length: 10 feet (3.05 meters)
  • Output: 230V
  • Output Connections: (16) IEC 320 C13
  • Includes: Cord retention bracket(s), Installation guide, Rack Mounting brackets, Toolless Mounting Kit

Our Price: $429.00

AP8841 - RACK PDU 2G, METERED, ZEROU, 30A, 200/208V, (36) C13 & (6) C19

AP8841

  • APC Metered Rack PDU
  • Input: 200V,208V,230V
  • Input Connections: NEMA L6-20P
  • Cord Length: 9.84 feet (3 meters)
  • Output: 200V,208V
  • Output Connections: (36) IEC 320 C13, (6) IEC 320 C19
  • Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable

Our Price: $599.00

AP8858 - APC Rack PDU 2G, Metered, ZeroU, 20A/208V, 16A/230V, (18) C13 & (2) C19

AP8858

  • APC Metered Rack PDU
  • Input: 200V,208V,230V
  • Input Connections: IEC-320 C20
  • Output: 200V,208V,230V
  • Output Connections: (18) IEC 320 C13, (2) IEC 320 C19
  • Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable

Our Price: $449.00

AP8858NA3 - APC Rack PDU 2G, Metered, ZeroU, 20A, 208V, (18) C13 & (2) C19, L620 Cord

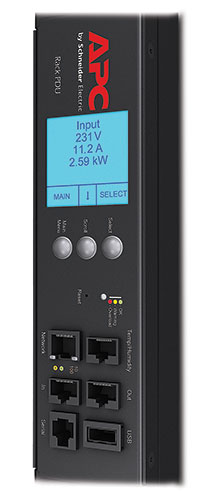

AP8858NA3

  • APC Metered Rack PDU
  • Input: 200V,208V,230V
  • Input Connections: NEMA L6-20P
  • Cord Length: 9.84 feet (3 meters)
  • Output: 208V
  • Output Connections: (18) IEC 320 C13, (2) IEC 320 C19
  • Includes: Installation guide, Locking input power cord, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable

Our Price: $469.00


208V 3PH Input

AP8868 - APC Rack PDU, Metered, Zero U, 10.0kW, 208V, (36)C13, (6)C19

AP8868

  • APC Metered Rack PDU
  • Input: 208V 3PH
  • Input Connections: CS8365
  • Cord Length: 6¬†feet (1.83 meters)
  • Output: 208V
  • Output Connections: (36) IEC 320 C13, (6) IEC 320 C19
  • Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable

Our Price: $944.00

AP7869 - APC Rack PDU, Metered, Zero U, 14.4kW, 208V, (24)C13, (4)C19, (2)L6-30R; 3 Cord

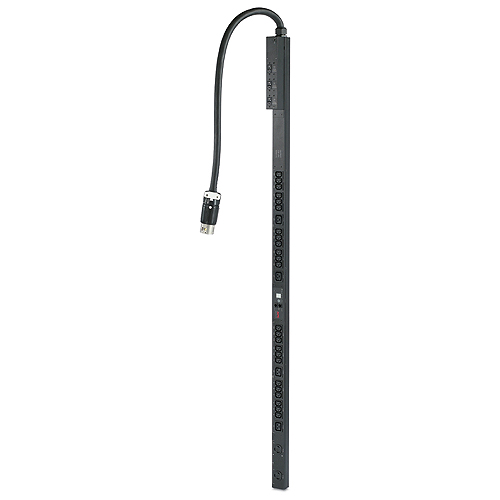

AP7869 - APC Rack PDU, Metered, Zero U, 14.4kW, 208V, (24)C13, (4)C19, (2)L6-30R; 3 Cord

  • APC Metered Rack PDU
  • Input: 208V 3PH
  • Input Connections: CS8365
  • Cord Length: 3 feet (0.91 meters)
  • Output: 208V
  • Output Connections: (24) IEC 320 C13, (4) IEC 320 C19, (2) NEMA L6-30R
  • Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, RS-232 configuration cable, Toolless Mounting Kit

Our Price: $1,275.00

AP7899 - APC Rack PDU, Metered, Zero U, 14.4kW, 208V, (24)C13, (4)C19, (2)L6-30R; 10' Cord

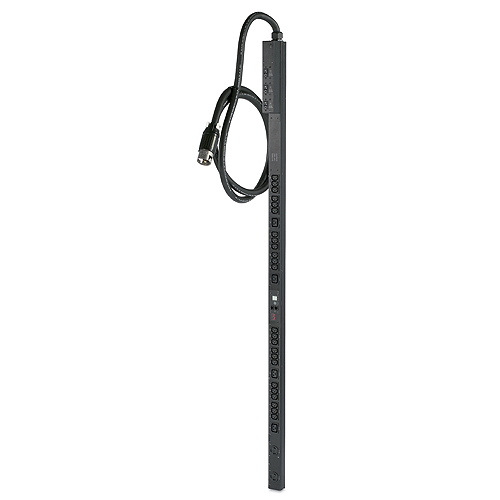

AP7899 - APC Rack PDU, Metered, Zero U, 14.4kW, 208V, (24)C13, (4)C19, (2)L6-30R; 10' Cord

  • APC Metered Rack PDU
  • Input: 208V 3PH
  • Input Connections:  CS8365
  • Cord Length: 10 feet (3.05 meters)
  • Output: 208V
  • Output Connections: (24) IEC 320 C13, (4) IEC 320 C19, (2) NEMA L6-30R
  • Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, RS-232 configuration cable, Toolless Mounting Kit

Our Price: $1,400.00
