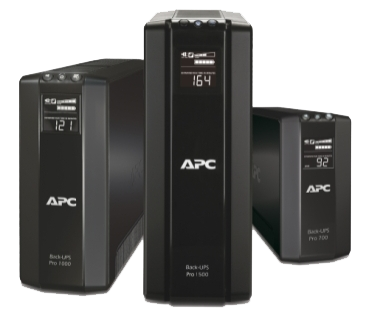

APC Back-UPS Pro Series
Premium Battery Backup with Surge Protection for High Performance Electronics and Computers

APC Back-UPS RS Series

Peace of mind from the world's most trusted UPS.

The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. These UPSs supply electronics with abundant battery backup during outages and stabilize unsafe voltage levels. They also provide power protection from damaging surges and spikes, and allow the use of management software so you get the most out of your UPS. Premium features of this family may include Automatic Voltage Regulation (AVR), an LCD display, Smart Outlets, energy saving functions that reduce electricity use, network manageability, Watchdog, or configurable outlets. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.

Features & Benefits:

Protection
Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes.
Dataline surge protection Provides protection of connected equipment from power surges on the data lines.
Surge only outlets Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Availability
Energy Management Function Energy saving feature automatically power off peripherals when the a master device, usually a PC, hibernates or is shut down. Power to peripherals is immediately restored when the master device wakes up or is switched on.
Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Customizable voltage-transfer points Adjust the voltage points (widen or tighten the range) where your UPS transfers to battery to maximize useful battery life and protect sensitive electronics.
Customizable voltage sensitivity Toggle between pre-determined voltage-transfer points depending on your power quality (high, medium or low sensitivity), maximizing useful battery life and protecting sensitive electronics.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Cold-start capable Provides temporary battery power when the utility power is out.
Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Transformer-block spaced outlets Protect equipment with input transformer blocks without blocking access to other receptacles.
Serviceability
Resettable circuit breaker Easy recovery from overloads; no need to replace a fuse.
Simple battery replacement Increases UPS availability by allowing quick, easy battery replacement.
Manageability
USB connection Use your PC to access additional power protection and management features for your UPS via a USB Port.
LCD Status Display Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Audible alarms Provides notification of changing utility power and UPS power conditions
Disconnected battery notification Warns when a battery is not available to provide backup power.
Safety
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Runtime Chart:

120V
Watts 50 100 200 300 400 500 600 700 800 Full Half
BG500 24 min 12 min 6 min 4 min - - - - - 4 min (300 Watts) 8 min (150 Watts)
BR700G 1 hrs 7 mins 33 min 14 min 8 min 5 min - - - - 4 min (420 Watts) 13 min (210 Watts)
BR1000G 1 hrs 57 mins 57 min 24 min 14 min 9 min 5 min 3 min - - 3 min (600 Watts) 14 min (300 Watts)

BN1080G

2 hrs 27 mins 1 hrs 4 mins 26 min 14 min 9 min 6 min 4 min   - 3 min (650 Watts) 13 min (325 Watts)

BR1300G

2 hrs 8 mins 1 hrs 9 mins 33 min 21 min 14 min 10 min 8 min 6 min - 5 min (780 Watts) 15 min (390 Watts)

BX1300G

2 hrs 0 mins 57 mins 25 min 15 min 9 min 6 min 5 min 6 min - 2 min (780 Watts) 10 min (390 Watts)

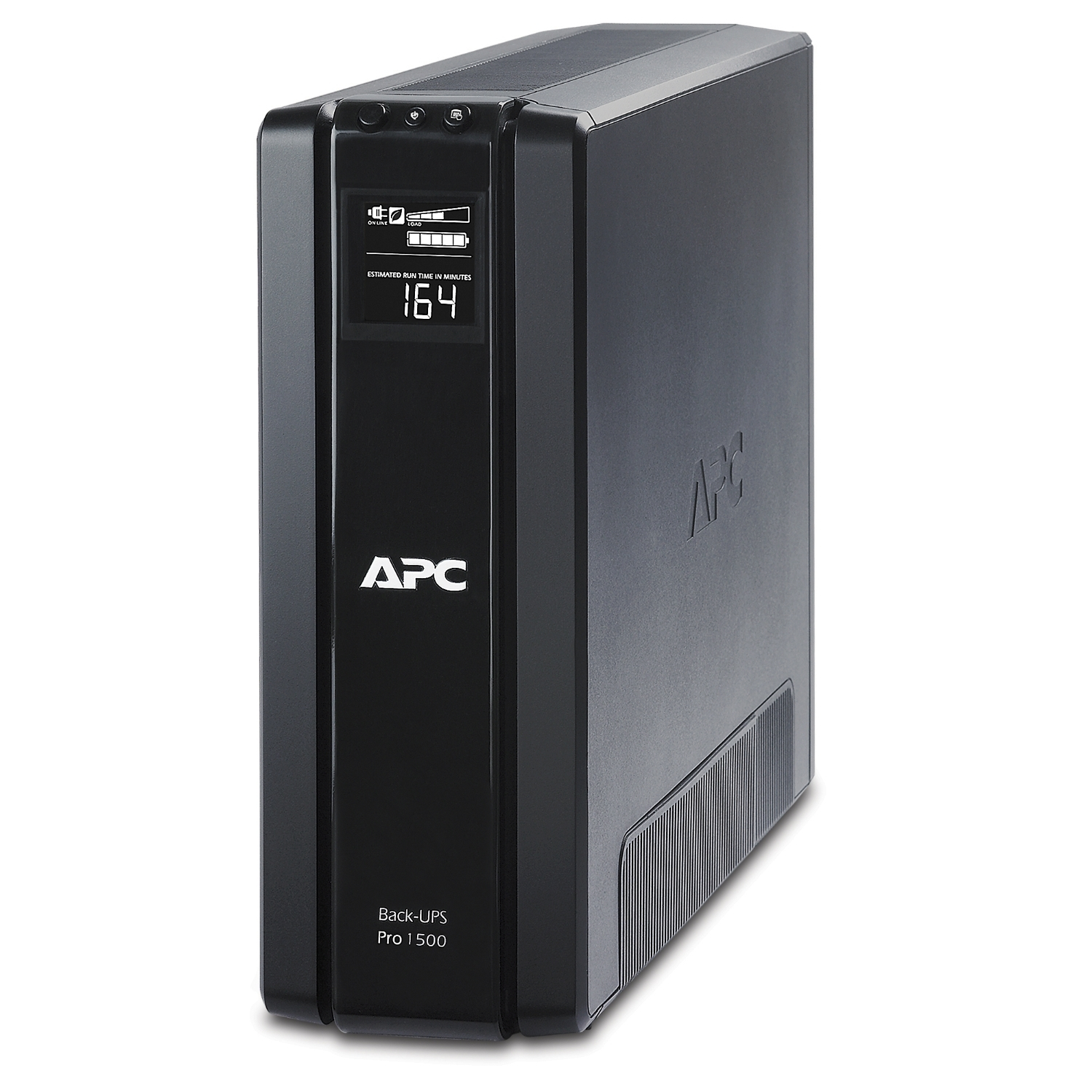

BR1500G 2 hrs 8 mins 1 hrs 9 mins 33 min 21 min 14 min 10 min 8 min 6 min 4 min 4 min (865 Watts) 13 min (432.5 Watts)
BR1500 + (1)BR24BPG 7 hrs 26 mins 3 hrs 52 mins 1 hrs 50 mins 1 hrs 9 mins 49 min 37 min 29 min 24 min 20 min 17 min (865 Watts) 48 min (432.5 Watts)
BX1500 2 hrs 8 mins 1 hrs 9 mins 33 mins 21 mins 14 min 10 min 8 min 6 min 4 min 4 min (865 Watts) 13 min (432.5 Watts)
