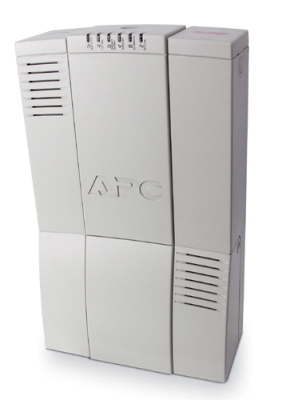

APC BACK-UPS HS 500VA 120V

APC Back-UPS HS, 500VA/300W, Input 120V/Output 120V

Includes: Cat6 Ethernet Cable, CD with software, Cord Management Straps, Documentation CD, Installation Guide, User Manual

Superior power management and protection for dataline panel box and home networking equipment.

The Back-UPS HS has been designed specifically for today's structured wiring and home networking applications. The Back-UPS HS provides premium battery backup power for your home networking equipment (modems, routers, file servers), as well as safeguards your equipment from damaging surges and spikes that travel along your utility, phone, coax and Ethernet lines. The outlets of the Back-UPS HS can be remotely managed from any web browser within your local area network, so you can turn specific outlets on and off. This allows you to cycle power to outlets with equipment that needs to be rebooted. This feature also allows you to turn off nonessential items during power outages to conserve battery power for critical pieces of equipment. Additional features like audible alarms, status indicator LEDs, a user replaceable battery and resettable circuit breaker make the Back-UPS HS the perfect unit to protect your home networking equipment from the constant threat of power outages and lost communication.

Features and Benefits:

Runtime Chart:

Technical Specifications:

Output

Output Power Capacity

300 Watts / 500 VA

Max Configurable Power

300 Watts / 500 VA

Nominal Output Voltage

120V

Output Connections

(4) NEMA 5-15R (Battery Backup)

Input

Nominal Input Voltage

120V

Input Frequency

47 - 63 Hz

Input Connections

NEMA 5-15P

Cord Length

8 feet (2.44 meters)

Batteries & Runtime

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

8 hour(s)

Replacement battery cartridge

RBC2

RBC™ Quantity

1

Typical Backup Time
at Half Load

16.3 minutes (150 Watts)

Typical Backup Time
at Full Load

4.4 minutes (300 Watts)

Runtime Chart

Back-UPS HS

Communications & Management

Control panel

LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault,Network link status LED

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

800 Joules

Dataline protection

RJ-11 Modem/Fax/DSL protection (two wire single line),RJ45 10/100 Base-T Ethernet protection,Co-axial Video / Cable protection

Physical

Maximum Height

14.64 inches (372 mm)

Maximum Width

8.85 inches (225 mm)

Maximum depth

4.13 inches (105 mm)

Net Weight

16.33 lbs. (7.42 kg)

Shipping Weight

18.51 lbs. (8.41 kg)

Shipping Height

18.50 inches (470 mm)

Shipping Width

12.00 inches (305 mm)

Shipping Depth

6.50 inches (165 mm)

Master Carton Units

2.00

Master Carton Dimensions (Length x Width x Height)

18.75 X 12.5 X 13.5 inches

Master Carton Weight

37.05 lbs.

Color

Beige

SCC Codes

1073130420640 5

Units per Pallet

20.00

Environmental

Operating Environment

32 - 104 °F (0 - 40 °C)

Operating Relative Humidity

5 - 95%

Operating Elevation

0-10000 feet (0-3000 meters)

Storage Temperature

5 - 113 °F (-15 - 45 °C)

Storage Relative Humidity

0 - 95%

Conformance

Regulatory Approvals

cUL Listed,FCC Part 15 Class B,FCC Part 68,Industry Canada,UL Listed

Standard Warranty

3 years repair or replace

Equipment protection policy

Lifetime : $100000





APC Documentation
	Download the APC BH500NET Data Sheet (PDF).
