Includes: CD with software, Free trial of anti-virus :
firewall : email privacy : system recovery and online backup software,
USB cable, User Manual, Wall-mounting template
| APC Product |
Part Number |
|
| APC BACK-UPS ES |

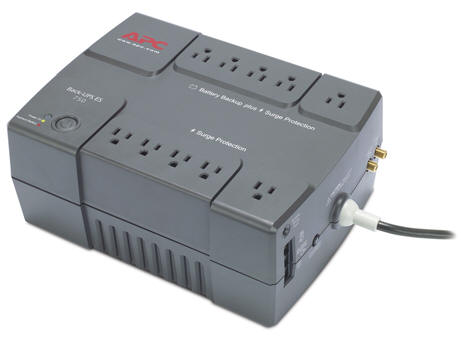

| APC Back-UPS ES USB 750VA w/TEL & COAX 120V |
#BE750BB
Our Price: $91.95 |
Discontinued -
Replaced by the new BE750G |
| APC Replacement Battery Cartridge #4 |
#RBC4
Our Price: $69.95 |
|
APC Charge-UPS Refresher Kit #4
-Includes: All required connectors, Authorized Return Service
(ARS) tag (currently available in the US only), Battery
recycling guide, Enterprise manager 30-day trial, Installation
Guide, Powerchute Plus Upgrade Kit, Reusable packaging |
#CURK4
Our Price: $69.95 |
|
BE750BB Features:
- Battery replacement without tools
- Disconnected battery notification
- LED status indicators
- USB connectivity
The most popular desktop UPS in the world!
The Back-UPS ES offers our best value for protecting your home
and home office computer systems. It provides battery backup power
that allows you to work through short and medium length power outages.
It also safeguards your equipment from damaging surges and spikes
that travel along your utility and phone lines. (Coax cable surge
protection is also included on selected models.) Award-winning software
automatically shuts down your computer system in the event of an
extended power outage. Additional features like audible alarms,
an LED status indicator, user replaceable battery, push-button circuit
breakers and transformer-block spaced outlets make the Back-UPS
ES the perfect unit to protect your productivity from the constant
threat of power outages and lost data.
Features and Benefits:
|
Protection
|
|
Battery-protected and
surge-only outlets |
Reserves
power capacity and run time for connected equipment
that require battery back-up while providing surge only
protection for less critical equipment |
|
Power conditioning |
Protects
connected loads from surges, spikes, lightning, and
other power disturbances. |
|
Dataline Surge Protection |
Provides
protection of connected equipment from power surges
on the data lines. |
|
Lifetime data recovery
warranty |
Provides
peace of mind with professional data recovery services
in the event data is lost due to the failure of the
unit (not available on all models). |
|
Safety-agency approved |
Ensures
the product has been tested and approved to work safely
with the connected service provider equipment and within
the specified environment. UL, FCC, CE, C-Tick approvals. |
|
Convenience
|
|
Audible alarms |
Provides
notification of changing utility power and UPS conditions. |
|
Automatic self-test |
Periodic
battery self-test ensures early detection of a battery
that needs to be replaced. |
|
Cold-start capable |
Provides
temporary battery power when the utility power is out. |
|
Hot-swappable batteries |
Ensures
clean, uninterrupted power to protected equipment while
batteries are being replaced |
|
Resettable circuit breakers |
Enables
quick recovery from UPS overload events. |
|
Transformer-block spaced
outlets |
Protect
equipment with input transformer blocks without blocking
access to other receptacles. |
Runtime Chart:
|
120V |
|
Watts |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
Full |
Half |
|
VA~ |
80 |
160 |
320 |
480 |
640 |
800 |
960 |
1120 |
1280 |
Load |
Load |
| BE350R |
24 min |
10 min |
2 min |
- |
- |
- |
- |
- |
- |
2 min (200 Watts) |
10 min (100 Watts) |
| BE550R |
1 hrs 5 mins |
39 min |
17 min |
9 min |
- |
- |
- |
- |
- |
4 min (300 Watts) |
15 min (150 Watts) |
| BE650R |
1 hrs 27 mins |
38 min |
15 min |
7 min |
- |
- |
- |
- |
- |
4 min (390 Watts) |
15 min (195 Watts) |
| BE750G |
1 hrs 25 mins |
36 min |
14 min |
7 min |
3 min |
- |
- |
- |
- |
2 min (450 Watts)
|
11 min (225 Watts) |
Technical Specifications:
Output Power Capacity
450 Watts / 750 VA
Max Configurable Power
450 Watts / 750 VA
Nominal Output Voltage
120V
Output Connections
| (5) NEMA 5-15R
(Battery Backup) |
|
| (5) NEMA 5-15R
(Surge Protection) |
|
Nominal Input Voltage
120V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
| NEMA 5-15P |
|
Cord Length
6 feet (1.83 meters)
Input voltage range for main operations
88 - 139V
Battery Type
Maintenance-free sealed Lead-Acid battery
with suspended electrolyte : leakproof
Typical recharge time
16 hour(s)
Replacement battery cartridge
Typical Backup Time
at Half Load
19.1 minutes (225 Watts)
Typical Backup Time
at Full Load
5.9 minutes (450 Watts)
Communications & Management
Control panel
LED status display with On Line : On Battery
: Replace Battery and Building Wiring Fault
Audible Alarm
Alarm when on battery : distinctive low
battery alarm : overload continuous tone
alarm
Surge Protection and Filtering
Surge energy rating
365 Joules
Filtering
Full time multi-pole noise filtering : 5%
IEEE surge let-through : zero clamping response
time : meets UL 1449
Dataline protection
RJ-45 Modem/Fax/DSL/ISDN/10-100 Base-T protection,Cable
modem / Video protection
Maximum Height
4.88 inches (124 mm)
Maximum Width
11.61 inches (295 mm)
Maximum depth
8.46 inches (215 mm)
Net Weight
19.10 lbs. (8.68 kg)
Shipping Weight
19.80 lbs. (9.00 kg)
Shipping Height
8.85 inches (225 mm)
Shipping Width
13.80 inches (351 mm)
Shipping Depth
12.40 inches (315 mm)
Master Carton Dimensions (Length x Width
x Height)
18.1 X 15.75 X 12.8 inches
Master Carton Weight
41.80 lbs.
SCC Codes
1073130422136 1
Operating Environment
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
5 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
5 - 113 °F (-15 - 45 °C)
Storage Relative Humidity
5 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of
unit
45 dBA
Online Thermal Dissipation
47.00 BTU/hr
Regulatory Approvals
cUL Listed,CSA,FCC Part 15 Class B,FCC Part
68,NOM,UL 1778,UL 497A,UL 497B,UL 498
Standard Warranty
2 years repair or replace
Equipment protection policy
Lifetime : $75000
