Convenience
|
|
Wall-mountable
|

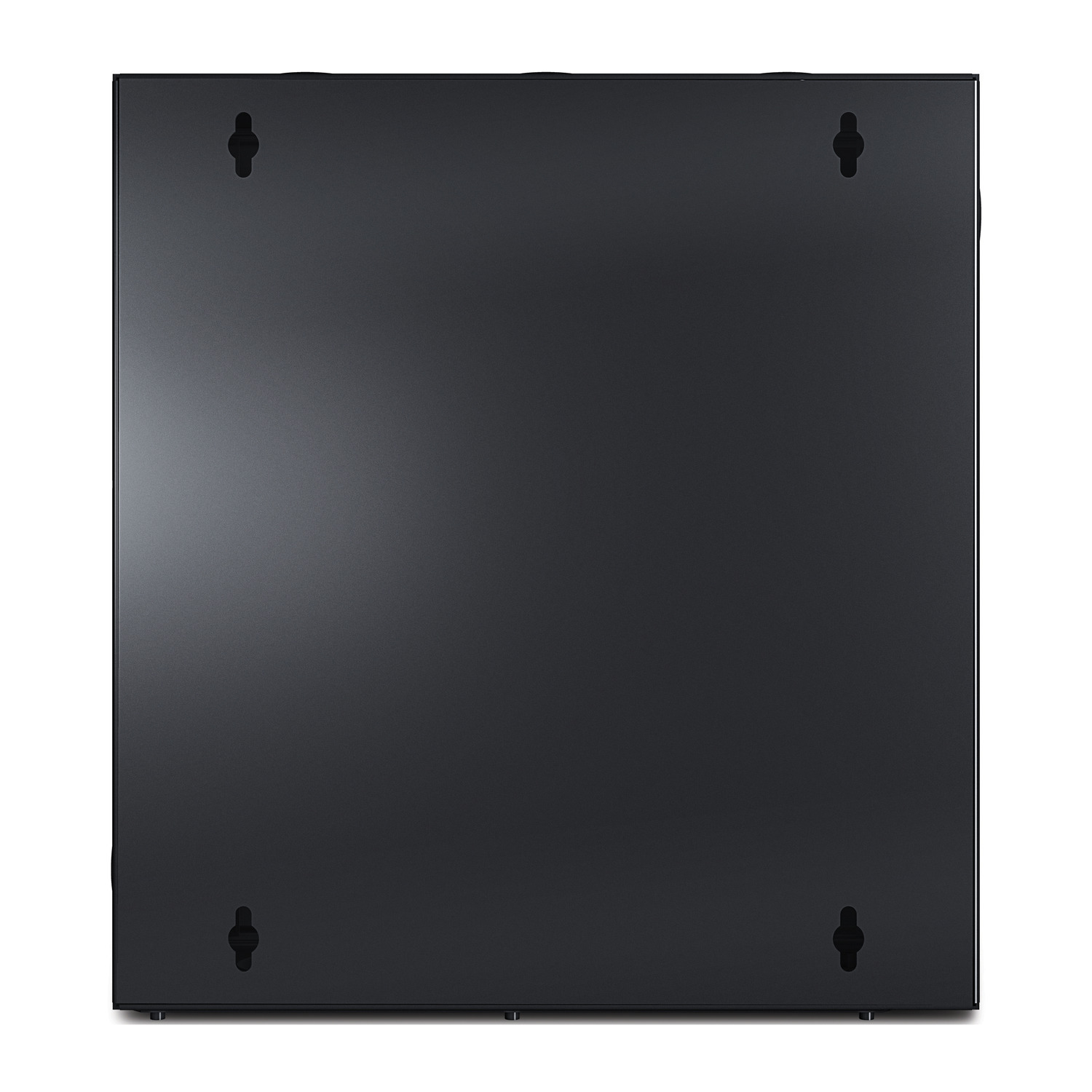

Four "key hole" slots spaced 16" apart
on the rear door allow the enclosure to mount directly
to building walls. A template is provided to assist
in locating the proper hole placement. |
| Multi-purpose mounting
rails |
NetShelter WX Enclosures ships with
the front vertical mounting rails oriented such that
#12-24 tapped holes are useable for mounting equipment.
The front rails are also field-reversible to provide
square mounting holes for use with caged nuts. |
| Adjustable front
rail |
The front mounting rails can be adjusted
to allow for various mounting depths and to allow for
additional clearance from the front door. |
| Labeled U positions
|
APC has eliminated the pain involved
in determining where to install rack-mount devices within
an enclosure by labeling each vertical mounting rail
with the actual U positions. |
| Unit symmetry |
Left or right hand door swing operation
can be obtained depending on orientation selected upon
installation. |
| Integrated cable
access holes |
Eight 2-inch cable access holes are
located at the top, sides, and bottom of the rear door
for ample cabling provisions. Grommets and caps are
included. |
| Rubber feet |
Four rubber feet are provided for optional
floor mounting. |
|
Serviceability
|

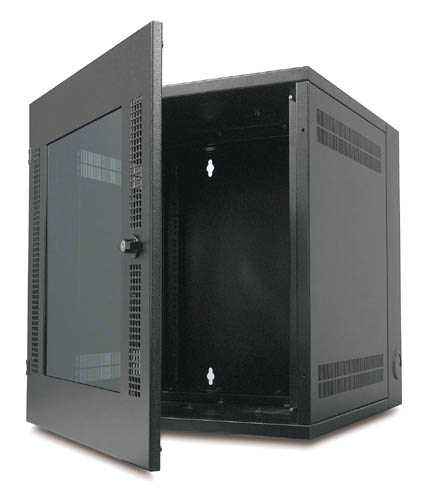

| Double-hinged design |
Provides front and rear access to installed
equipment. |
|
Availability
|
|
Ventilated
|
Front Doors and Side Panels are perforated
to provide ventilation for components typically installed.
Fully ventilated and partially ventilated front doors
are available. |
|
Protection
|
|
Lockable Doors
|
All NetShelter WX Enclosures include
key lockable front doors to prevented unwanted access. |
APC
NetShelter WX AR100 Enclosure
